Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1225AS-H-4R7M=P2FIXED IND 4.7UH 1.4A 126MOHM SMD |
8,281 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.4 A | 880mA | Shielded | 126mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
|
LQW15DN150M00DFIXED IND 15UH 100MA 6.555OHM SM |
10,049 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 100 mA | 100mA | Shielded | 6.555Ohm Max | - | 20MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0402 | 0.043" L x 0.026" W (1.10mm x 0.65mm) | 0.028" (0.70mm) |
|
LQH66SN1R5M03LFIXED IND 1.5UH 3.8A 22.4MOHM SM |
313 | - |
|
Datasheet | LQH66 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.8 A | - | Shielded | 22.4mOhm Max | - | 110MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2525 (6363 Metric) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|
|
LQH66SN2R2M03LFIXED IND 2.2UH 3.3A 26.6MOHM SM |
1,320 | - |
|
Datasheet | LQH66 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3.3 A | - | Shielded | 26.6mOhm Max | - | 80MHz | - | -40°C ~ 80°C | 1 MHz | - | Surface Mount | 2525 (6363 Metric) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.197" (5.00mm) |
|

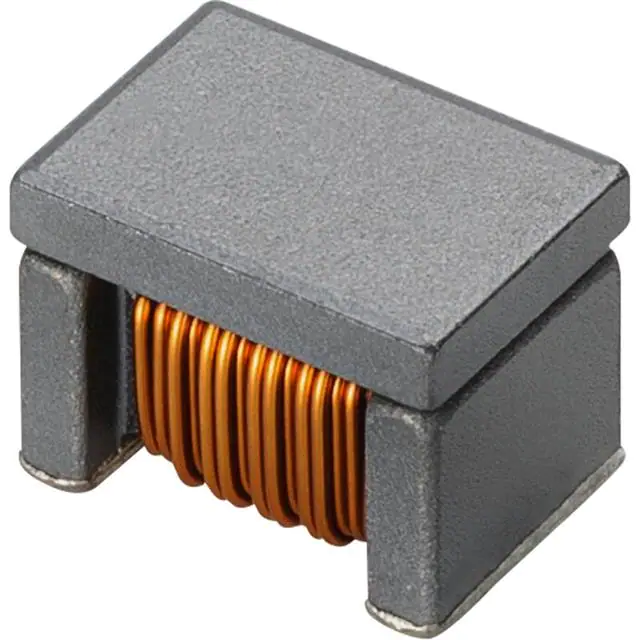

LQW43FT180M0HLFIXED IND 18UH 845MA POWRTRN |
121 | - |
|
Datasheet | LQW43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 600 mA | 800mA | Shielded | 160mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.146" (3.70mm) |
.jpg "LQP03TN1N0C02D")
|
LQP03TN1N0C02DFIXED IND 1NH 750MA 100 MOHM SMD |
81,006 | - |
|
Datasheet | LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 1 nH | ±0.2nH | 750 mA | - | Unshielded | 100mOhm Max | 14 @ 500MHz | 17GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LQP03HQ4N7J02DFIXED IND 4.7NH 400MA 250MOHM SM |
75,524 | - |
|
Datasheet | LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 4.7 nH | ±5% | 400 mA | - | Unshielded | 250mOhm Max | 20 @ 500MHz | 7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03TN8N2J02DFIXED IND 8.2NH 250MA 700MOHM SM |
71,140 | - |
|
Datasheet | LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thick Film | Non-Magnetic | 8.2 nH | ±5% | 250 mA | - | Unshielded | 700mOhm Max | 14 @ 500MHz | 3.6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
LQW15AN3N9D00DFIXED IND 3.9NH 750MA 0.07OHM SM |
69,796 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.9 nH | ±0.5nH | 750 mA | - | Unshielded | 70mOhm Max | 25 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQP03TQ3N1C02DFIXED IND 3.1NH 450MA 240MOHM SM |
68,730 | - |
|
Datasheet | LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Not For New Designs | Thick Film | Non-Magnetic | 3.1 nH | ±0.2nH | 450 mA | - | Unshielded | 240mOhm Max | 17 @ 500MHz | 9.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.32mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
