Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW18ANR30G8ZDFIXED IND 300NH 220MA 3.12OHM SM |
1,964 | - |
|
Datasheet | LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 300 nH | ±2% | 220 mA | - | Unshielded | 3.12Ohm Max | 25 @ 100MHz | 1.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN11NG8ZDFIXED IND 11NH 1.6A 0.052OHM SMD |
1,871 | - |
|
Datasheet | LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 11 nH | ±2% | 1.6 A | - | Unshielded | 52mOhm Max | 40 @ 250MHz | 4.75GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
LQM21NNR27K10DFIXED IND 270NH 250MA 420MOHM SM |
1,236 | - |
|
Datasheet | LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 270 nH | ±10% | 250 mA | - | Shielded | 420mOhm Max | 20 @ 25MHz | 200MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
.jpg "LQM18PN2R2MFHD")
|
LQM18PN2R2MFHDFIXED IND 2.2UH 700MA 475MOHM SM |
8,094 | - |
|
Datasheet | LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 700 mA | 300mA | Shielded | 475mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.030" (0.75mm) |
|
|
LQM18PN1R5MFHDFIXED IND 1.5UH 1.1A 213MOHM SMD |
4,884 | - |
|
Datasheet | LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.1 A | 500mA | Shielded | 213mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

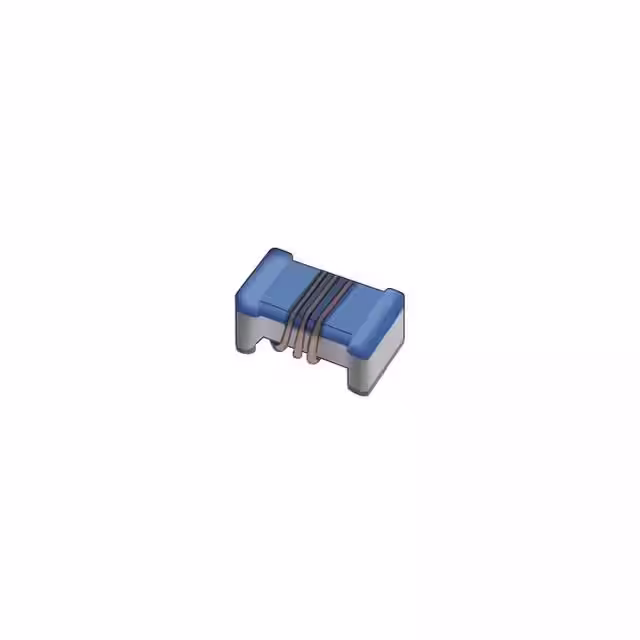

LQW18AN6N2G8ZDFIXED IND 6.2NH 1.9A 0.04OHM SMD |
2,196 | - |
|
Datasheet | LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.2 nH | ±2% | 1.9 A | - | Unshielded | 40mOhm Max | 40 @ 250MHz | 6.65GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
LQW15AW56NJ80DFIXED IND 56NH 480MA 0.52OHM SMD |
9,781 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 56 nH | ±5% | 480 mA | - | Unshielded | 520mOhm Max | 33 @ 250MHz | 2.1GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
LQG18HHR15J00DFIXED IND 150NH 300MA 1.2OHM SMD |
7,027 | - |
|
Datasheet | LQG18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 150 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 14 @ 100MHz | 550MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW15AWR16J80DFIXED IND 160NH 280MA 1.86OHM SM |
5,732 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 160 nH | ±5% | 280 mA | - | Unshielded | 1.86Ohm Max | 33 @ 250MHz | 1.3GHz | - | -40°C ~ 140°C | 100 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
|
LQW15AW68NJ80DFIXED IND 68NH 480MA 0.56OHM SMD |
3,960 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 68 nH | ±5% | 480 mA | - | Unshielded | 560mOhm Max | 33 @ 250MHz | 1.8GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
