Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DD1274AS-H-5R6N=P3FIXED IND 5.6UH 6.3A 18.3MOHM SM |
175 | - |
|
Datasheet | DEM10050C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 6.3 A | 11.1A | Shielded | 18.3mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
DFEG7030D-100M=P3FIXED IND 10UH 3A 82 MOHM SMD |
8,649 | - |
|
Datasheet | DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 10 µH | ±20% | 3 A | 4.2A | Shielded | 82mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

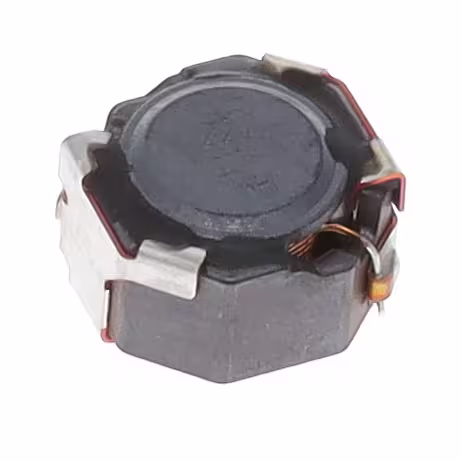

MDH7045C-221MA=P3FIXED IND 220UH 510MA 550MOHM SM |
980 | - |
|
Datasheet | MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 510 mA | 530mA | Shielded | 550mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|

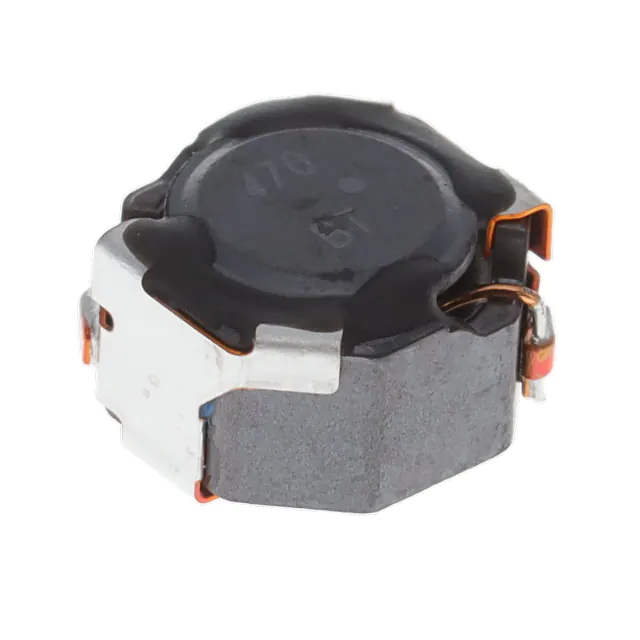

MDH7045C-470MA=P3FIXED IND 47UH 1.1A 130MOHM SMD |
3,187 | - |
|
Datasheet | MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.1 A | 1.1A | Shielded | 130mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
DFEG7030D-150M=P3FIXED IND 15UH 2.2A 147MOHM SMD |
2,705 | - |
|
Datasheet | DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 15 µH | ±20% | 2.2 A | 3.2A | Shielded | 147mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
MDH7045C-220MA=P3FIXED IND 22UH 1.7A 69 MOHM SMD |
2,000 | - |
|
Datasheet | MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.7 A | 1.6A | Shielded | 69mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
MDH7045C-100MA=P3FIXED IND 10UH 2.6A 33 MOHM SMD |
929 | - |
|
Datasheet | MDH7045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.6 A | 2.5A | Shielded | 33mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.291" L x 0.276" W (7.40mm x 7.00mm) | 0.189" (4.80mm) |
|
|
DFEG7030D-1R0M=P3FIXED IND 1UH 9.1A 9.9 MOHM SMD |
824 | - |
|
Datasheet | DFEG7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 1 µH | ±20% | 9.1 A | 12A | Shielded | 9.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
DFEH7030D-3R3M=P3FIXED IND 3.3UH 5.4A 29MOHM SMD |
2,290 | - |
|
Datasheet | DFEH7030D | Nonstandard | Tape & Reel (TR) | Not For New Designs | - | Iron Powder | 3.3 µH | ±20% | 5.4 A | 7.1A | Shielded | 29mOhm Max | - | - | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
1225AS-H-1R0N=P2FIXED IND 1UH 2.7A 43 MOHM SMD |
3,987 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.7 A | 1.8A | Shielded | 43mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
