Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

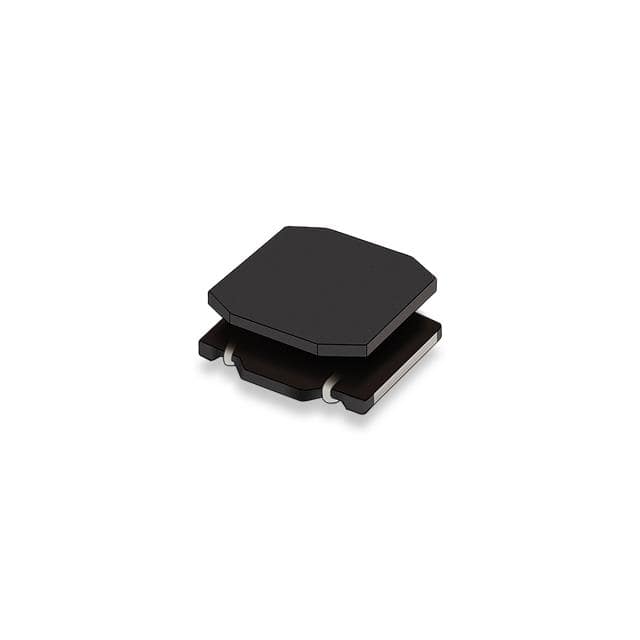

LQH44PN150MPRLFIXED IND 15UH 1300MA NONAUTO |
4,832 | - |
|
Datasheet | LQH44 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 1.3A | Shielded | 200mOhm | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
DFE322512F-R33M=P2FIXED IND 330NH 5.4A 20 MOHM SMD |
2,386 | - |
|
Datasheet | DFE322512F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 5.4 A | 8.5A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
1226AS-H-120M=P2FIXED IND 12UH 850MA 275MOHM SMD |
2,674 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 850 mA | 600mA | Shielded | 275mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.126" L x 0.118" W (3.20mm x 3.00mm) | 0.059" (1.50mm) |
|
LQH5BPB1R5NT0LFIXED IND 1.5UH 3A 22.8 MOHM SMD |
4,590 | - |
|
Datasheet | LQH5 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 3 A | 5A | Shielded | 22.8mOhm Max | - | 70MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 2020 (5050 Metric) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.087" (2.20mm) |
|
B1047AS-560M=P3FIXED IND 56UH 1.2A 230 MOHM SMD |
1,597 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.2 A | 1.24A | Shielded | 230mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2-SMD | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.197" (5.00mm) |
|
DEM8045Z-180M=P3FIXED IND 18UH 2.9A 76.8MOHM SMD |
4,927 | - |
|
Datasheet | DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.9 A | 3.2A | Shielded | 76.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
#B966BS-390M=P3FIXED IND 39UH 2A 93 MOHM SMD |
3,043 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 2 A | 1.9A | Shielded | 93mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.268" (6.80mm) |
|
#B953AS-120M=P3FIXED IND 12UH 4A 27 MOHM SMD |
2,600 | - |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 4 A | 5A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | 0.268" (6.80mm) |
.jpg "LQG15WZ7N5H02D")
|
LQG15WZ7N5H02DFIXED IND 7.5NH 600MA 0.16OHM SM |
2,719 | - |
|
Datasheet | LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 7.5 nH | ±3% | 600 mA | - | Unshielded | 160mOhm Max | - | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
|
LQG15WZ3N9C02DFIXED IND 3.9NH 900MA 0.09OHM SM |
1,225 | - |
|
Datasheet | LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 3.9 nH | ±0.2nH | 900 mA | - | Unshielded | 90mOhm Max | - | 5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
