Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH3NPZ4R7MGRLFIXED IND 4.7UH 910MA 168MOHM SM |
4,189 | - |
|
Datasheet | LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 910 mA | 850mA | Shielded | 168mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

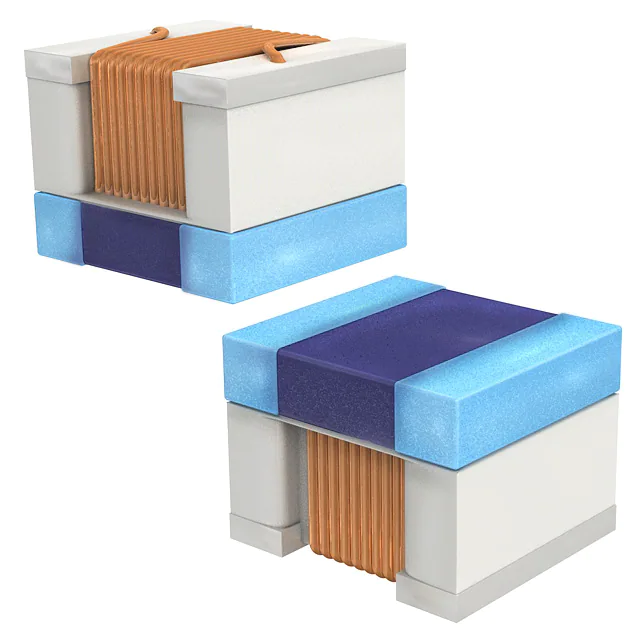

LQW2BAN56NJ00LFIXED IND 56NH 1.25A 180MOHM SMD |
2,214 | - |
|
Datasheet | LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 56 nH | ±5% | 1.25 A | - | Unshielded | 180mOhm Max | 70 @ 500MHz | 1.6GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BAN8N2J00LFIXED IND 8.2NH 1.5A 90MOHM SMD |
1,503 | - |
|
Datasheet | LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 8.2 nH | ±5% | 1.5 A | - | Unshielded | 90mOhm Max | 80 @ 100MHz | 3.2GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
LQH2HPNR47MDRLFIXED IND 470NH 1.25A 168MOHM SM |
3,876 | - |
|
Datasheet | LQH2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 1.25 A | 1.67A | Shielded | 168mOhm Max | - | 120MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.024" (0.60mm) |
|
DEM8045Z-330M=P3IND AUTO 33UH 3131 FERRITE CORE |
1,545 | - |
|
Datasheet | DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.2 A | 2.3A | Shielded | 132mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-5R6N=P3IND AUTO 5.6UH 3131 FERRITE CORE |
3,267 | - |
|
Datasheet | DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±30% | 5.4 A | 6.1A | Shielded | 22.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-150M=P3IND AUTO 15UH 3131 FERRITE CORE |
2,700 | - |
|
Datasheet | DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.5 A | 3.3A | Shielded | 52.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-2R2N=P3IND AUTO 2.2UH 3131 FERRITE CORE |
2,700 | - |
|
Datasheet | DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 8.7 A | 9.3A | Shielded | 9.96mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-470M=P3IND AUTO 47UH 3131 FERRITE CORE |
4,399 | - |
|
Datasheet | DEM8045C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.8 A | 2.1A | Shielded | 204mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
DEM8045Z-3R3N=P3EMC |
4,898 | - |
|
Datasheet | DEM8045C | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 6.8 A | 7.7A | Shielded | 14.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
