Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

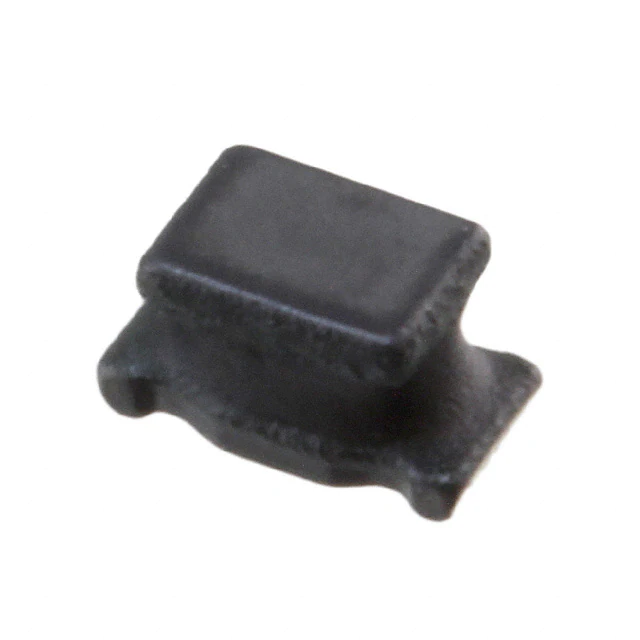

LQH31CN1R0M03LFIXED IND 1UH 510MA 364 MOHM SMD |
1,779 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 510 mA | - | Unshielded | 364mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31CN470K03LFIXED IND 47UH 100MA 10.4OHM SMD |
4,067 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 100 mA | - | Unshielded | 10.4Ohm Max | - | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31CNR12M03LFIXED IND 120NH 970MA 112MOHM SM |
1,999 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 120 nH | ±20% | 970 mA | - | Unshielded | 112mOhm Max | - | 250MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
LQH31MN101K03LFIXED IND 100UH 45MA 15.6OHM SMD |
4,796 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 45 mA | - | Unshielded | 15.6Ohm Max | 40 @ 2.5MHz | 7MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN150K03LFIXED IND 15UH 90MA 3.9 OHM SMD |
4,985 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±10% | 90 mA | - | Unshielded | 3.9Ohm Max | 35 @ 5MHz | 16MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN470K03LFIXED IND 47UH 55MA 10.4 OHM SMD |
1,534 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±10% | 55 mA | - | Unshielded | 10.4Ohm Max | 40 @ 2.5MHz | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31MN5R6K03LFIXED IND 5.6UH 115MA 2.34OHM SM |
3,719 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 115 mA | - | Unshielded | 2.34Ohm Max | 35 @ 8MHz | 28MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
1274AS-H-5R6N=P3FIXED IND |
1,894 | - |
|
Datasheet | * | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LQH31CN2R2M03LFIXED IND 2.2UH 430MA 533MOHM SM |
4,143 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 430 mA | - | Unshielded | 533mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
|
|
LQH31CNR22M03LFIXED IND 220NH 850MA 140MOHM SM |
1,194 | - |
|
Datasheet | LQH31 | 1206 (3216 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 850 mA | - | Unshielded | 140mOhm Max | - | 250MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
