Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

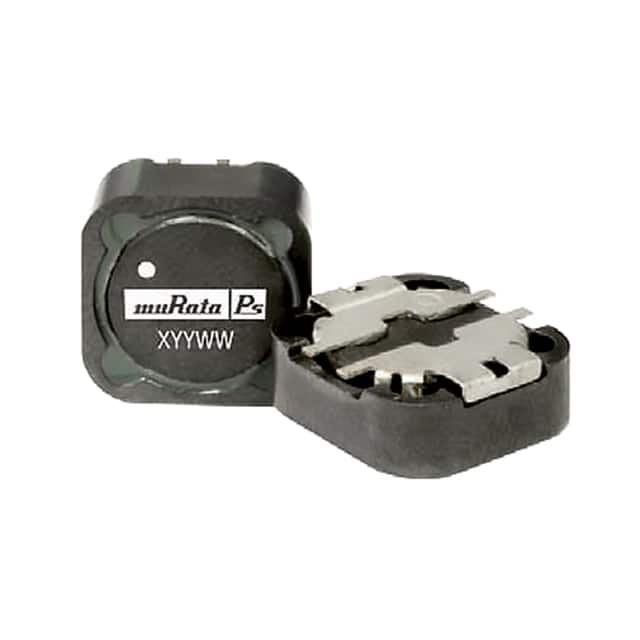

47681SCFIXED IND 680UH 480MA 1.78OHM SM |
1,246 | - |
|
Datasheet | 4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 µH | ±20% | 480 mA | - | Shielded | 1.78Ohm Max | 17 @ 800kHz | 4MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
17153CFIXED IND 15UH 1.5A 60 MOHM TH |
4,303 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 15 µH | ±10% | 1.5 A | - | Unshielded | 60mOhm Max | 60 @ 500kHz | 19.4MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17154CFIXED IND 150UH 580MA 490MOHM TH |
3,005 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 150 µH | ±10% | 580 mA | - | Unshielded | 490mOhm Max | 90 @ 100kHz | 5.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17155CFIXED IND 1.5MH 150MA 5.9 OHM TH |
1,117 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1.5 mH | ±10% | 150 mA | - | Unshielded | 5.9Ohm Max | 130 @ 100kHz | 1.9MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17156CFIXED IND 15MH 60MA 47 OHM TH |
3,570 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 15 mH | ±10% | 60 mA | - | Unshielded | 47Ohm Max | 140 @ 150kHz | 510kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17224CFIXED IND 220UH 480MA 750MOHM TH |
1,499 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 220 µH | ±10% | 480 mA | - | Unshielded | 750mOhm Max | 100 @ 100kHz | 4.4MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17225CFIXED IND 2.2MH 120MA 7.8 OHM TH |
3,784 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 2.2 mH | ±10% | 120 mA | - | Unshielded | 7.8Ohm Max | 90 @ 50kHz | 1.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17333CFIXED IND 33UH 1A 130 MOHM TH |
1,424 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 33 µH | ±10% | 1 A | - | Unshielded | 130mOhm Max | 50 @ 500kHz | 11.4MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17334CFIXED IND 330UH 420MA 1.1 OHM TH |
2,769 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 330 µH | ±10% | 420 mA | - | Unshielded | 1.1Ohm Max | 100 @ 100kHz | 3.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17335CFIXED IND 3.3MH 110MA 10 OHM TH |
4,572 | - |
|
Datasheet | 1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 3.3 mH | ±10% | 110 mA | - | Unshielded | 10Ohm Max | 140 @ 150kHz | 1.2MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
