Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-1.00mm.jpg "DFE252012P-R33M=P2")
|
DFE252012P-R33M=P2FIXED IND 330NH 4.6A 0.023OHM SM |
868 | - |
|
Datasheet | DFE252012P | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 4.6 A | 6.6A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
LQH32CN470K23LFIXED IND 47UH 170MA 1.69OHM SMD |
1,000 | - |
|
Datasheet | LQH32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 170 mA | - | Unshielded | 1.69Ohm Max | - | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.067" (1.70mm) |
|
VLS3015CX-1R0M-1FIXED IND 1UH 3.33A 0.042OHM SMD |
891 | - |
|
Datasheet | VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.33 A | 2.59A | Shielded | 42mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
11R472CFIXED IND 4.7UH 1.3A 90 MOHM TH |
801 | - |
|
Datasheet | 1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 4.7 µH | ±20% | 1.3 A | - | Unshielded | 90mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
11R682CFIXED IND 6.8UH 1.1A 100 MOHM TH |
761 | - |
|
Datasheet | 1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 6.8 µH | ±20% | 1.1 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
VLS5045EX-101M-HFIXED IND 100UH 700MA 754MOHM SM |
723 | - |
|
Datasheet | VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 700 mA | 800mA | Shielded | 754mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
|
VLS3012CX-470M-1FIXED IND 47UH 660MA 1.477OHM SM |
656 | - |
|
Datasheet | VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 660 mA | 430mA | Shielded | 1.477Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
L0201R47AHSTR\500FIXED IND 0.47NH 550MA 100 MOHM |
620 | - |
|
Datasheet | Accu-L® | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 0.47 nH | ±0.05nH | 550 mA | - | Unshielded | 100mOhm Max | 10 @ 450MHz | 32GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.011" (0.28mm) |
|
LSXND5050XAT3R3MMGFIXED IND 3.3UH 3A 30 MOHM SMD |
559 | - |
|
Datasheet | LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 3 A | 3.6A | Shielded | 39mOhm Max | - | 36MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.122" (3.10mm) |
|
|
11R154CFIXED IND 150UH 300MA 1.65OHM TH |
532 | - |
|
Datasheet | 1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 150 µH | ±10% | 300 mA | - | Unshielded | 1.65Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
|
11R473CFIXED IND 47UH 500MA 540 MOHM TH |
285 | - |
|
Datasheet | 1100R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 47 µH | ±10% | 500 mA | - | Unshielded | 540mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
VLS4012CX-4R7M-1FIXED IND 4.7UH 1.94A 126MOHM SM |
782 | - |
|
Datasheet | VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.94 A | 1.37A | Shielded | 126mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LQW15AW51NG80DFIXED IND 51NH 480MA 0.47OHM SMD |
447 | - |
|
Datasheet | LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 51 nH | ±2% | 480 mA | - | Unshielded | 470mOhm Max | 33 @ 250MHz | 2.1GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
VLS3015ET-1R0NFIXED IND 1UH 2A 58 MOHM SMD |
397 | - |
|
Datasheet | VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2 A | 2A | Shielded | 58mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
VLS4012CX-100M-1FIXED IND 10UH 1.3A 294MOHM SMD |
381 | - |
|
Datasheet | VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | 990mA | Shielded | 294mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
VLS4012CX-2R2M-1FIXED IND 2.2UH 2.56A 74MOHM SMD |
1,468 | - |
|
Datasheet | VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.56 A | 2.01A | Shielded | 74mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
DFE252010F-3R3M=P2FIXED IND 3.3UH 1.6A 0.17OHM SMD |
600 | - |
|
Datasheet | DFE252010F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 1.6 A | 2.2A | Shielded | 170mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SDEI054T-4R7MSFIXED IND 4.7UH 3.6A 34MOHM SMD |
416 | - |
|
Datasheet | SDEI054T | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 3.6 A | 4.5A | Shielded | 34mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|

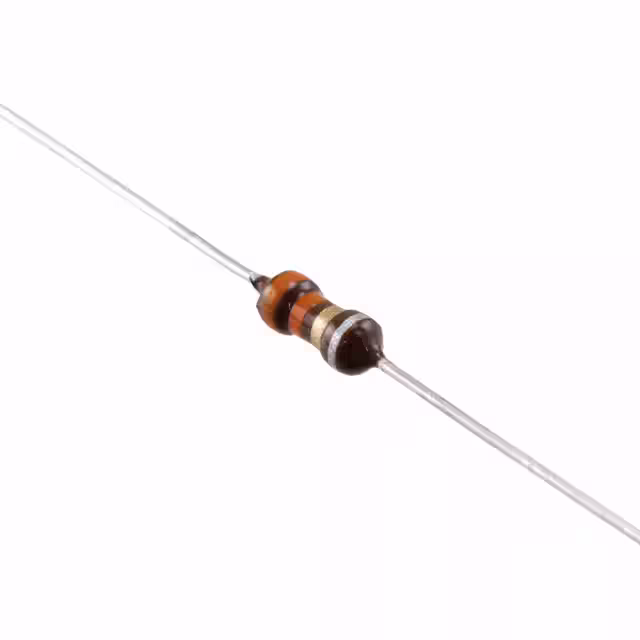

B78108S1332K000FIXED IND 3.3UH 900MA 290MOHM TH |
410 | - |
|
Datasheet | BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 900 mA | - | Unshielded | 290mOhm Max | 60 @ 7.96MHz | 115MHz | - | - | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
DFE252010F-100M=P2FIXED IND 10UH 900MA 0.6OHM SMD |
321 | - |
|
Datasheet | DFE252010F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±20% | 900 mA | 1.3A | Shielded | 600mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
