Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM10054T-1R0M-HZFIXED IND 1UH 27.5A 2.64MOHM SMD |
503 | - |
|
Datasheet | SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 1 µH | ±20% | 27.5 A | 18A | Shielded | 2.64mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
MWLA1707S-470MTFIXED IND 47UH 55MOHM 9500MA |
2,528 | - |
|
Datasheet | MWLA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 47 µH | ±20% | 8.7 A | 9.5A | Shielded | 55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.276" (7.00mm) |
|
768776322FIXED IND 2.2MH 180MA 5.3OHM SMD |
4,253 | - |
|
Datasheet | WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 180 mA | 260mA | Unshielded | 5.3Ohm Max | - | 1.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
IHLP5050FDER220M8AIHLP-5050FD-8A 22 20% ER E3 |
2,605 | - |
|
Datasheet | IHLP-5050FD-8A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 9 A | 6.3A | Shielded | 33.49mOhm Max | - | 6.6MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.252" (6.40mm) |
|
768776312FIXED IND 1.2MH 350MA 3 OHM SMD |
2,213 | - |
|
Datasheet | WE-PD2 HV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 350 mA | 350mA | Unshielded | 3Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.232" (5.90mm) |
|
744132FIXED IND 49UH 5.8A 50 MOHM TH |
100 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 49 µH | ±20% | 5.8 A | 2.2A | Shielded | 50mOhm Max | - | 16MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.827" Dia x 0.374" W (21.00mm x 9.50mm) | - |
|
FPV1006-125-RFIXED IND 125NH 25A 0.41MOHM SMD |
170 | - |
|
Datasheet | FPV1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 125 nH | ±10% | 25 A | 57A | Shielded | 0.41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.382" L x 0.331" W (9.70mm x 8.40mm) | 0.252" (6.40mm) |
|
B82477R4683M100FIXED IND 68UH 2.8A 85 MOHM SMD |
3,788 | - |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.8 A | 3.55A | Shielded | 85mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
7447471222FIXED IND 2.2MH 400MA 2.7 OHM TH |
4,621 | - |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±20% | 400 mA | 300mA | Shielded | 2.7Ohm Max | - | 780kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471022FIXED IND 2.2UH 8.2A 8.8 MOHM TH |
4,459 | - |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 8.2 A | 10A | Shielded | 8.8mOhm Max | - | 75MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471047FIXED IND 4.7UH 6.9A 12.2MOHM TH |
4,438 | - |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 6.9 A | 6A | Shielded | 12.2mOhm Max | - | 48MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
7447786008FIXED IND 8.2UH 2.3A 80 MOHM SMD |
1,337 | - |
|
Datasheet | WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±25% | 2.3 A | 2.1A | Shielded | 80mOhm Max | - | 47MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|

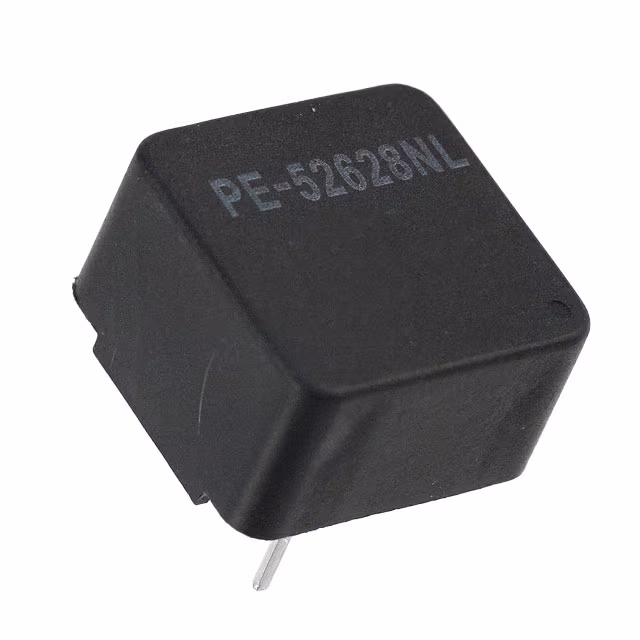

PE-52628NLFIXED IND 470UH 900MA 1.26OHM TH |
3,720 | - |
|
Datasheet | - | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 470 µH | ±20% | 900 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
1532EFIXED IND 55UH 500MA 1 OHM TH |
3,321 | - |
|
Datasheet | 1532 | Axial | Bulk | Active | Wirewound | - | 55 µH | ±10% | 500 mA | - | Unshielded | 1Ohm Max | 72 @ 2.5MHz | 17MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
1210R-151KFIXED IND 150NH 910MA 250MOHM SM |
2,019 | - |
|
Datasheet | 1210R | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Iron | 150 nH | ±10% | 910 mA | - | Unshielded | 250mOhm Max | 30 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|
1410313CFIXED IND 10UH 13A 9 MOHM TH |
2,271 | - |
|
Datasheet | 1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 µH | ±15% | 13 A | - | Unshielded | 9mOhm Max | 54 @ 50kHz | 20.7MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.063" Dia (27.00mm) | 0.610" (15.50mm) |
|
|
1433393CFIXED IND 33UH 9.3A 17 MOHM TH |
3,281 | - |
|
Datasheet | 1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 33 µH | ±15% | 9.3 A | - | Unshielded | 17mOhm Max | 27 @ 50kHz | 9.1MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.961" Dia (24.40mm) | 0.610" (15.50mm) |
|
744114FIXED IND 127UH 2.3A 120 MOHM TH |
3,311 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 127 µH | ±20% | 2.3 A | 1A | Unshielded | 120mOhm Max | - | 4.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.709" Dia x 0.354" W (18.00mm x 9.00mm) | - |
|
744105FIXED IND 258UH 1.2A 400 MOHM TH |
3,383 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 258 µH | ±20% | 1.2 A | 600mA | Unshielded | 400mOhm Max | - | 3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.689" Dia x 0.315" W (17.50mm x 8.00mm) | - |
|
|
1532DFIXED IND 39UH 600MA 650 MOHM TH |
4,749 | - |
|
Datasheet | 1532 | Axial | Bulk | Active | Wirewound | - | 39 µH | ±10% | 600 mA | - | Unshielded | 650mOhm Max | 70 @ 2.5MHz | 200kHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
