Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBC3-330-172FIXED IND 33UH 1.7A 90 MOHM TH |
339 | - |
|
Datasheet | SBC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 1.8A | Unshielded | 90mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.354" (9.00mm) |
|
AMXLA-Q6030-2R2M-TIND 2.2UH 9A 15.8M |
173 | - |
|
Datasheet | AMXLA-Q6030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 2.2 µH | ±20% | 9 A | 11A | Shielded | 15.8mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
AMXLA-Q6030-100M-TIND 10UH 4.2A 68M |
145 | - |
|
Datasheet | AMXLA-Q6030 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 4.2 A | 4.2A | Shielded | 68mOhm Max | - | - | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
RLB9012-323KLFIXED IND 33MH 90MA 91.5 OHM TH |
1,000 | - |
|
Datasheet | RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 90 mA | - | Unshielded | 91.5Ohm Max | 15 @ 79kHz | 170kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
SRN8040TA-R50YFIXED IND 500NH 12A 5.5 MOHM SMD |
938 | - |
|
Datasheet | SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 500 nH | ±30% | 12 A | 17A | Shielded | 5.5mOhm | 20 @ 1MHz | 165MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
RLB9012-271KLFIXED IND 270UH 900MA 750MOHM TH |
905 | - |
|
Datasheet | RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 900 mA | - | Unshielded | 750mOhm Max | 20 @ 796kHz | 2.4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-3R3MLFIXED IND 3.3UH 5.5A 25 MOHM TH |
877 | - |
|
Datasheet | RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 5.5 A | - | Unshielded | 25mOhm Max | 20 @ 7.96MHz | 65MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
B82144B2683J000FIXED IND 68UH 1.5A 350 MOHM TH |
856 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 1.5 A | 1.15A | Unshielded | 350mOhm Max | 40 @ 79.6kHz | 6.1MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2103K000FIXED IND 10UH 2.45A 120 MOHM TH |
837 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.45 A | 2.85A | Unshielded | 120mOhm Max | 40 @ 252kHz | 22MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
|
RLB9012-180KLFIXED IND 18UH 2.66A 61 MOHM TH |
795 | - |
|
Datasheet | RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 2.66 A | - | Unshielded | 61mOhm Max | 40 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-822KLFIXED IND 8.2MH 180MA 22.7OHM TH |
763 | - |
|
Datasheet | RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 180 mA | - | Unshielded | 22.7Ohm Max | 15 @ 252kHz | 350kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
CDRH3D14NP-100NCFIXED IND 10UH 690MA 262MOHM SMD |
444 | - |
|
Datasheet | CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 690 mA | 750mA | Shielded | 262mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
74405042015FIXED IND 1.5UH 3.2A 36 MOHM SMD |
779 | - |
|
Datasheet | WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 3.2 A | 8.7A | Shielded | 36mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.157" L x 0.146" W (4.00mm x 3.70mm) | 0.079" (2.00mm) |
|
PG2292.500HLTINDUCTOR PWR BEAD 50NH 84A |
693 | - |
|
Datasheet | PG2292.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 50 nH | ±20% | 53 A | 84A | Unshielded | 0.09mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.236" W (6.10mm x 6.00mm) | 0.276" (7.00mm) |
|
12LRS475CFIXED IND 4.7MH 180MA 10.5OHM TH |
240 | - |
|
Datasheet | 1200LRS | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 4.7 mH | ±15% | 180 mA | - | Shielded | 10.5Ohm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.335" (8.50mm) |
|

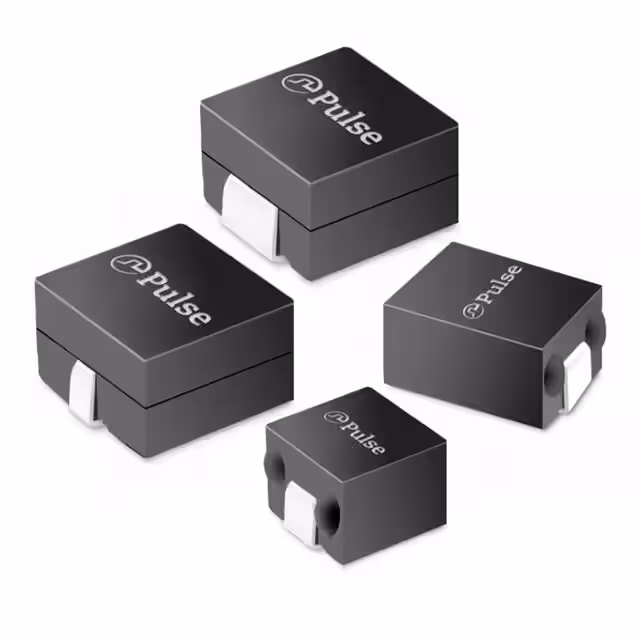

PA4059.550HLTFIXED IND 55NH 35A 0.2 MOHM SMD |
197 | - |
|
Datasheet | PA4059 | Nonstandard | Tape & Reel (TR) | Active | - | - | 55 nH | ±20% | 35 A | 61A | Shielded | 0.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.217" W (5.70mm x 5.50mm) | 0.181" (4.60mm) |
|
|
12LRS333CFIXED IND 33UH 2.1A 110 MOHM TH |
138 | - |
|
Datasheet | 1200LRS | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 33 µH | ±20% | 2.1 A | - | Shielded | 110mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.335" (8.50mm) |
|
CDH74NP-470KCFIXED IND 47UH 1.2A 230 MOHM SMD |
105 | - |
|
Datasheet | CDH74 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.2 A | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
|
12LRS334CFIXED IND 330UH 630MA 860MOHM TH |
3,858 | - |
|
Datasheet | 1200LRS | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 330 µH | ±15% | 630 mA | - | Shielded | 860mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.413" Dia (10.50mm) | 0.335" (8.50mm) |
|
B82144B2333J000FIXED IND 33UH 1.9A 220 MOHM TH |
803 | - |
|
Datasheet | LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 1.9 A | 1.65A | Unshielded | 220mOhm Max | 40 @ 252kHz | 9MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
