Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1538M08FIXED IND 5UH 14A 9 MOHM TH |
5 |
1+：$10.11000 10+：$8.31500 25+：$7.69360 50+：$7.39200 |
|
Datasheet | 1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 5 µH | ±10% | 14 A | - | Unshielded | 9mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.640" Dia x 0.880" L (16.26mm x 22.35mm) | - |
|
CTX50-7-52-RFIXED IND 50UH 10.5A 16.3MOHM TH |
1,938 | - |
|
Datasheet | CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 10.5 A | 10.2A | Unshielded | 16.3mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.535" Dia x 0.661" W (39.00mm x 16.80mm) | - |
|
|
1538M13FIXED IND 100UH 6.8A 38 MOHM TH |
3,665 | - |
|
Datasheet | 1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 6.8 A | - | Unshielded | 38mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.380" L (22.35mm x 35.05mm) | - |
|
|
1538M21FIXED IND 5UH 23A 4 MOHM TH |
4,132 | - |
|
Datasheet | 1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 5 µH | ±10% | 23 A | - | Unshielded | 4mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.720" Dia x 1.380" L (18.29mm x 35.05mm) | - |
|
1140-560K-RCFIXED IND 56UH 12A 19 MOHM TH |
2,741 | - |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 12 A | 27.6A | Unshielded | 19mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.028" (26.10mm) |
|
MPX1D2213L100FIXED IND 10UH 34A 4.4 MOHM SMD |
1,284 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 34 A | 36A | Shielded | 4.4mOhm Max | - | 5.2MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
MPX1D2213L101FIXED IND 100UH 10A 47.4MOHM SMD |
3,608 | - |
|
Datasheet | METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 µH | ±20% | 10 A | 10.5A | Shielded | 47.4mOhm Max | - | 1.6MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
1538M19FIXED IND 68UH 10A 23 MOHM TH |
3,623 | - |
|
Datasheet | 1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | 10 A | - | Unshielded | 23mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.380" L (23.88mm x 35.05mm) | - |
|
|
1140-392K-RCFIXED IND 3.9MH 1.8A 845 MOHM TH |
1,186 | - |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 1.8 A | 3.3A | Unshielded | 845mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
1540M02FIXED IND 25UH 5.5A 14 MOHM TH |
1,711 | - |
|
Datasheet | 1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 25 µH | ±15% | 5.5 A | - | Unshielded | 14mOhm Max | - | - | - | - | - | - | Through Hole | - | 0.875" Dia x 0.437" W (22.22mm x 11.10mm) | - |
|
|
1540M10FIXED IND 1MH 1.5A 980 MOHM TH |
12 |
1+：$13.62000 10+：$10.98100 25+：$10.09200 50+：$9.47160 100+：$8.89270 250+：$8.18612 500+：$7.76960 |
|
Datasheet | 1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 1 mH | ±15% | 1.5 A | - | Unshielded | 980mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) | - |
|
7443783533220FIXED IND 22UH 23.2A 8.8 MOHM TH |
2,106 | - |
|
Datasheet | WE-HCFT | Nonstandard | Tray | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 22 µH | ±20% | 23.2 A | 49.4A | Shielded | 8.8mOhm Max | - | 8.15MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 1.417" L x 1.358" W (36.00mm x 34.50mm) | 1.378" (35.00mm) |
|
|
1538M23FIXED IND 27UH 15A 10 MOHM TH |
3,331 | - |
|
Datasheet | 1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 27 µH | ±10% | 15 A | - | Unshielded | 10mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.380" L (25.40mm x 35.05mm) | - |
|

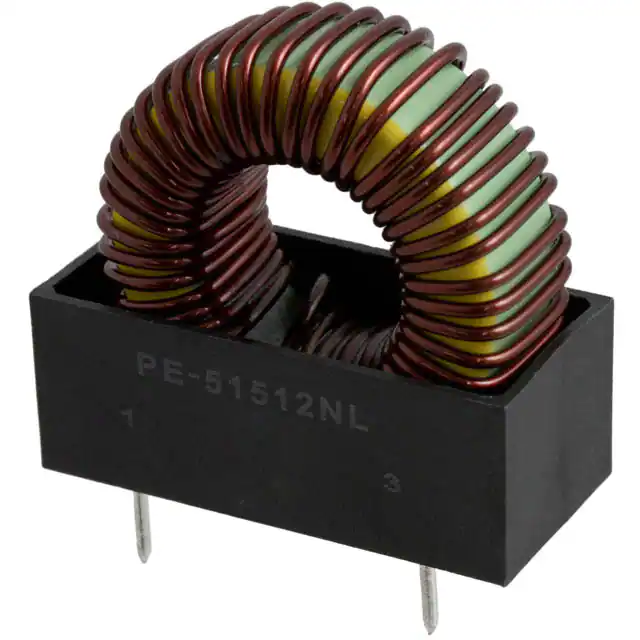

PE-51512NLFIXED IND 90UH 10A 28 MOHM TH |
1,973 | - |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 90 µH | - | 10 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 1.950" L x 0.910" W (49.53mm x 23.11mm) | 2.000" (50.80mm) |
|
MPXV1D2213L4R7FIXED IND 4.7UH 48A 2.2 MOHM SMD |
2,548 | - |
|
Datasheet | METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 4.7 µH | ±20% | 48 A | 40A | Shielded | 2.2mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
HC3-3R3-RFIXED IND 3.3UH 42.45A 1.2 MOHM |
1,823 | - |
|
Datasheet | HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 42.45 A | 46A | Unshielded | 1.2mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
|
|
1540M17FIXED IND 500UH 4A 150 MOHM TH |
3,670 | - |
|
Datasheet | 1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 500 µH | ±15% | 4 A | - | Unshielded | 150mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.812" Dia x 0.750" W (46.02mm x 19.05mm) | - |
|
|
1540M12FIXED IND 150UH 4.75A 46 MOHM TH |
3,624 | - |
|
Datasheet | 1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 150 µH | ±15% | 4.75 A | - | Unshielded | 46mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - |
|
|
1538M14FIXED IND 150UH 6.3A 46 MOHM TH |
2,109 | - |
|
Datasheet | 1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 150 µH | ±10% | 6.3 A | - | Unshielded | 46mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.620" L (22.35mm x 41.15mm) | - |
|
|
1538M18FIXED IND 50UH 10.5A 20 MOHM TH |
2,523 | - |
|
Datasheet | 1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 10.5 A | - | Unshielded | 20mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.380" L (23.88mm x 35.05mm) | - |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
