Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC5022FH-4R7FIXED IND 4.7UH 8A 14 MOHM SMD |
3,370 | - |
|
Datasheet | SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±30% | 8 A | 13A | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-6R8FIXED IND 6.8UH 6.5A 18 MOHM SMD |
1,010 | - |
|
Datasheet | SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 6.5 A | 12A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-R47FIXED IND 470NH 20A 2 MOHM SMD |
1,943 | - |
|
Datasheet | SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±30% | 20 A | 40A | Unshielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|
|
SC5022FH-R82FIXED IND 820NH 17A 2.6 MOHM SMD |
1,683 | - |
|
Datasheet | SC5022FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 820 nH | ±30% | 17 A | 30A | Unshielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.315" (8.00mm) |
|

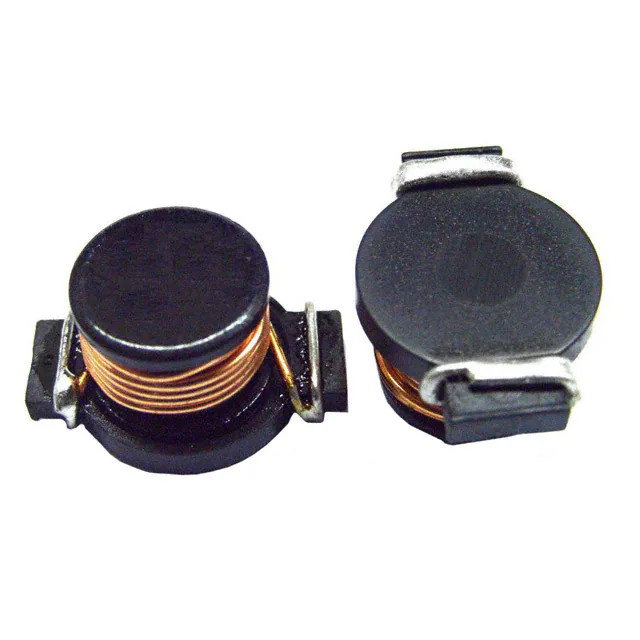

SC5040FH-120FIXED IND 12UH 8.5A 15.5MOHM SMD |
1,585 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±30% | 8.5 A | 15.9A | Unshielded | 15.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-2R8FIXED IND 2.8UH 16A 5.2 MOHM SMD |
1,880 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.8 µH | ±30% | 16 A | 33.4A | Unshielded | 5.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-330FIXED IND 33UH 4.4A 37 MOHM SMD |
3,643 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±30% | 4.4 A | 9.6A | Unshielded | 37mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-3R9FIXED IND 3.9UH 14A 6 MOHM SMD |
3,574 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.9 µH | ±30% | 14 A | 26.8A | Unshielded | 6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-680FIXED IND 68UH 3.4A 67 MOHM SMD |
1,945 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±30% | 3.4 A | 6.7A | Unshielded | 67mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
|
|
SC5040FH-6R8FIXED IND 6.8UH 11.5A 9 MOHM SMD |
2,001 | - |
|
Datasheet | SC5040FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±30% | 11.5 A | 21.5A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.880" L x 0.640" W (22.35mm x 16.26mm) | 0.484" (12.30mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
