Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPFC-RM12-100PWR FACTOR COR RM12 PCB 100W |
630 | - |
|
Datasheet | SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 450 µH | ±10% | 1.2 A | 5.6A | Shielded | 330mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.575" L x 1.614" W (40.00mm x 41.00mm) | 1.024" (26.00mm) |
|
|
SPFC-RM10-50PWR FACTOR COR RM10 PCB 50W |
630 | - |
|
Datasheet | SPFC | Radial, Vertical, 14 Leads | Tray | Active | Wirewound | - | 750 µH | ±10% | 900 mA | 3.9A | Shielded | 720mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 14 Leads | 1.220" L x 1.142" W (31.00mm x 29.00mm) | 0.787" (20.00mm) |
|
|
SPFC-RM14-200PWR FACTOR COR RM14 PCB 200W |
630 | - |
|
Datasheet | SPFC | Radial, Vertical, 16 Leads | Tray | Active | Wirewound | - | 225 µH | ±10% | 2.4 A | 12.4A | Shielded | 87mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical, 16 Leads | 1.693" L x 1.890" W (43.00mm x 48.00mm) | 1.260" (32.00mm) |
|
SCRH127-101FIXED IND 100UH 1.8A 220MOHM SMD |
1,400 | - |
|
Datasheet | SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.8 A | 1.7A | Shielded | 220mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CH-200FIXED IND 300UH 200A 1 MOHM CHAS |
3,629 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 300 µH | - | 200 A | - | Unshielded | 1mOhm | - | - | - | - | - | - | Chassis Mount | - | 7.500" L x 7.500" W (190.50mm x 190.50mm) | 6.252" (158.80mm) |
|

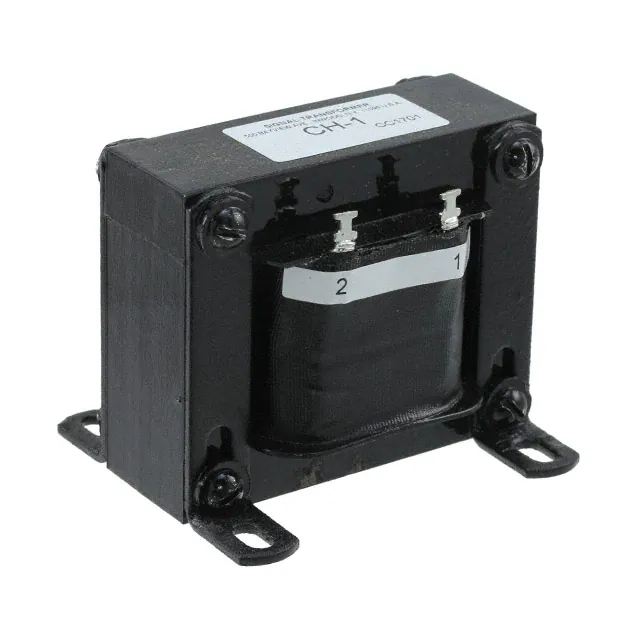

CH-1FIXED IND 100MH 1A 1.5 OHM CHASS |
2,372 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 100 mH | - | 1 A | - | Unshielded | 1.5Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.000" L x 2.500" W (76.20mm x 63.50mm) | 2.500" (63.50mm) |
|

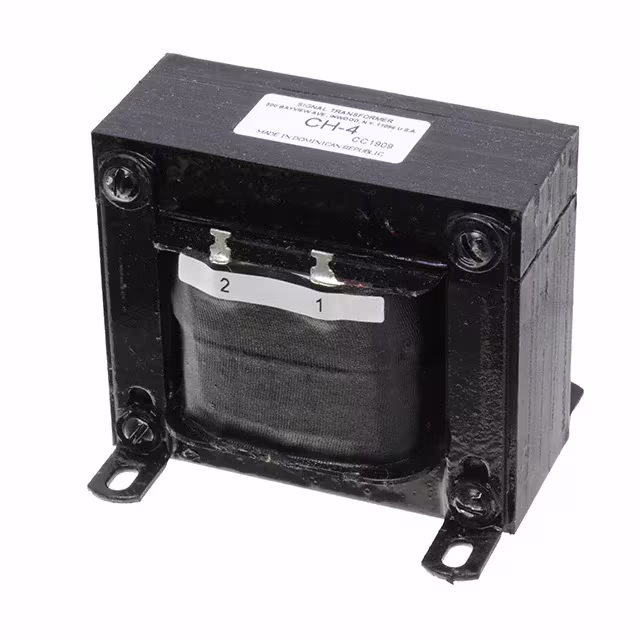

CH-4FIXED IND 70MH 4A 600 MOHM CHASS |
3,359 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 70 mH | - | 4 A | - | Unshielded | 600mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.126" W (95.30mm x 79.40mm) | 3.252" (82.60mm) |
|
CH-20FIXED IND 7MH 20A 50 MOHM CHASS |
1,567 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 7 mH | - | 20 A | - | Unshielded | 50mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.252" L x 4.000" W (133.40mm x 101.60mm) | 4.437" (112.70mm) |
|
CH-6FIXED IND 40MH 6A 400 MOHM CHASS |
2,273 | - |
|
Datasheet | - | Nonstandard | Box | Active | - | - | 40 mH | - | 6 A | - | Unshielded | 400mOhm | - | - | - | - | - | - | Chassis Mount | - | 3.752" L x 3.626" W (95.30mm x 92.10mm) | 3.252" (82.60mm) |
|
SCRH125-220FIXED IND 22UH 4A 36 MOHM SMD |
1,223 | - |
|
Datasheet | SCRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 4 A | 2.8A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
