Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

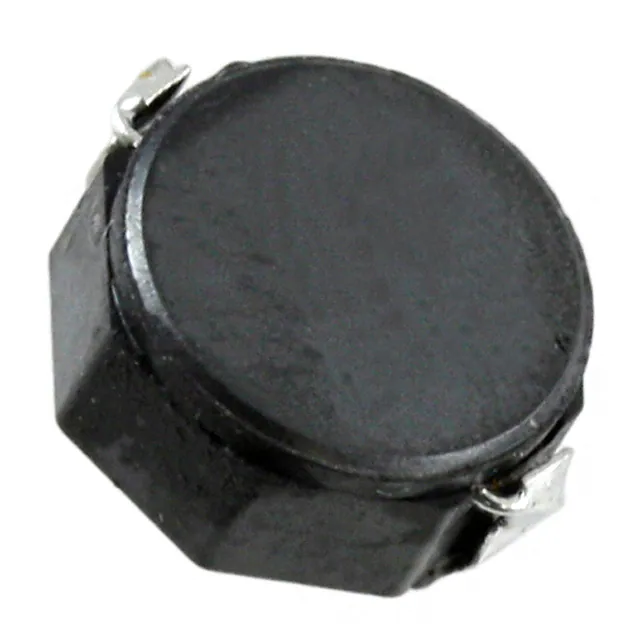

CDRH8D38NP-150NCFIXED IND 15UH 2.5A 67 MOHM SMD |
113,774 | - |
|
Datasheet | CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±30% | 2.5 A | 2.75A | Shielded | 67mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CDRH8D38NP-100NCFIXED IND 10UH 3.2A 48 MOHM SMD |
5,848 | - |
|
Datasheet | CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 3.2 A | 3A | Shielded | 48mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
CR75NP-100KCFIXED IND 10UH 2.3A 70 MOHM SMD |
4,873 | - |
|
Datasheet | CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | - | Unshielded | 70mOhm Max | - | 28MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|
CDRH8D38NP-220NCFIXED IND 22UH 2A 105 MOHM SMD |
4,587 | - |
|
Datasheet | CDRH8D38 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 2 A | 2.3A | Shielded | 105mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
CR75NP-330KCFIXED IND 33UH 1.2A 130 MOHM SMD |
4,442 | - |
|
Datasheet | CR75 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.2 A | - | Unshielded | 130mOhm Max | - | 15MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
CDRH2D18/LDNP-100NCFIXED IND 10UH 1A 180 MOHM SMD |
42,066 | - |
|
Datasheet | CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1 A | 430mA | Shielded | 180mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
CDRH74NP-101MC-BFIXED IND 100UH 600MA 610MOHM SM |
36,709 | - |
|
Datasheet | CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 600 mA | - | Shielded | 610mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CDRH2D18/LDNP-4R7NCFIXED IND 4.7UH 1.65A 78MOHM SMD |
17,461 | - |
|
Datasheet | CDRH2D18/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±30% | 1.65 A | 630mA | Shielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
CDRH74NP-680MC-BFIXED IND 68UH 690MA 380MOHM SMD |
10,517 | - |
|
Datasheet | CDRH74 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 690 mA | - | Shielded | 380mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
CDRH4D16FB/NP-100MCFIXED IND 10UH 1.2A 118 MOHM SMD |
7,261 | - |
|
Datasheet | CDRH4D16FB | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.2 A | 800mA | Shielded | 118mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
