Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0630CDMCDDS-1R0MCFIXED IND 1UH 14.4A 7.4MOHM SMD |
2,400 | - |
|
Datasheet | 0630CDMCD/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 1 µH | ±20% | 13 A | 18.7A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

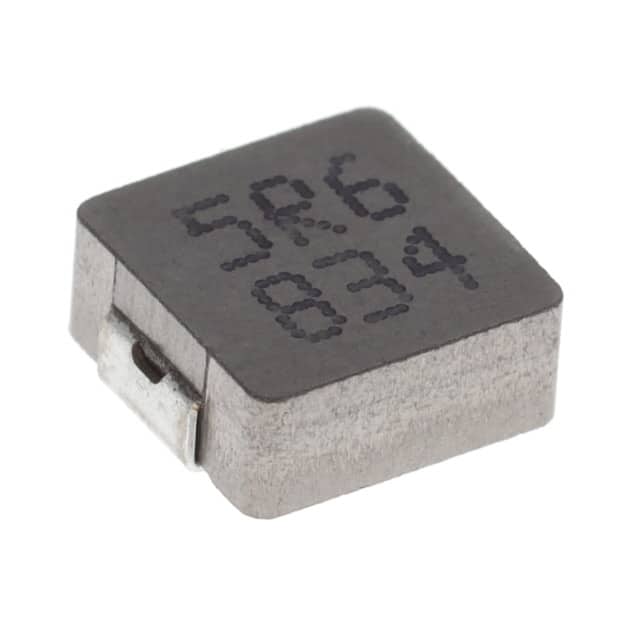

0630CDMCCDS-5R6MCFIXED IND 5.6UH 5.2A 43MOHM SMD |
3,791 | - |
|
Datasheet | 0630CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 5.6 µH | ±20% | 5.2 A | 5.5A | Shielded | 43mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
RCP195DNP-153KFIXED IND 15MH 75MA 16.8 OHM TH |
2,851 | - |
|
Datasheet | RCP-195D | Radial, Vertical Cylinder | Tape & Reel (TR) | Obsolete | - | - | 15 mH | ±10% | 75 mA | 33mA | Shielded | 16.8Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.394" Dia (10.00mm) | 0.374" (9.50mm) |
|
CDRH5D18-5R4NCFIXED IND 5.4UH 1.6A 76 MOHM SMD |
4,278 | - |
|
Datasheet | CDRH5D18 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 5.4 µH | ±30% | 1.6 A | - | Shielded | 76mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.224" W (5.70mm x 5.70mm) | 0.079" (2.00mm) |
|
CDRH4D28NP-330NCFIXED IND 33UH 560MA 331.3 MOHM |
3,076 | - |
|
Datasheet | CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 560 mA | - | Shielded | 331.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|

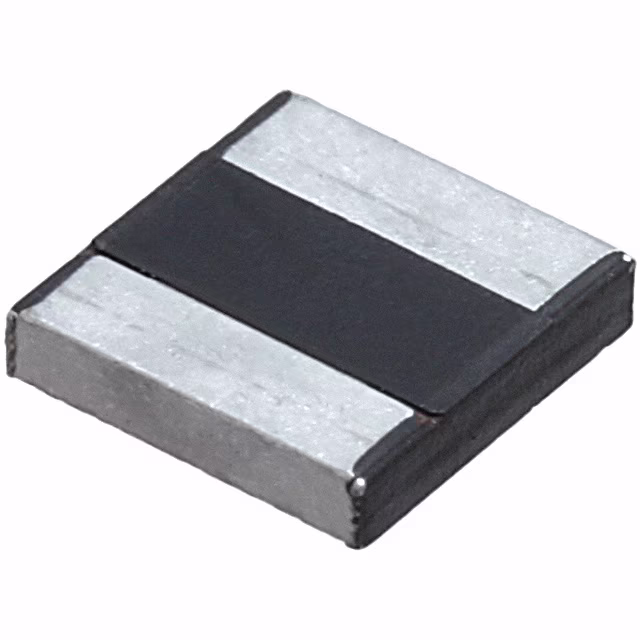

0512CDMCDS-5R6MCFIXED IND 5.6UH 1.5A 150MOHM SMD |
3,901 | - |
|
Datasheet | 0512CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 5.6 µH | ±20% | 1.5 A | 3A | Shielded | 150mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.047" (1.20mm) |
|
|
0512CDMCDS-6R8MCFIXED IND 6.8UH 1.4A 168MOHM SMD |
1,775 | - |
|
Datasheet | 0512CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 1.4 A | 2.8A | Shielded | 168mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.047" (1.20mm) |
|
|
0512CDMCDS-100MCFIXED IND 10UH 1.1A 290 MOHM SMD |
4,175 | - |
|
Datasheet | 0512CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 1.1 A | 2.5A | Shielded | 290mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.047" (1.20mm) |
|

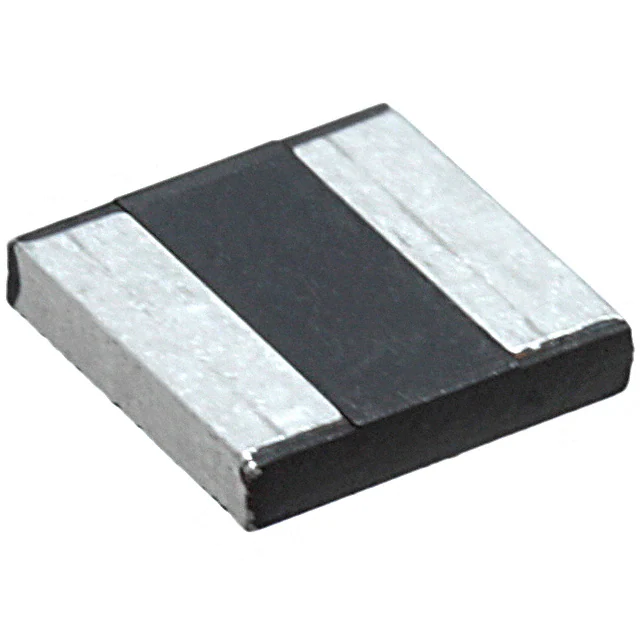

0512CDMCDS-150MCFIXED IND 15UH 900MA 400MOHM SMD |
2,550 | - |
|
Datasheet | 0512CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | ±20% | 900 mA | 2.2A | Shielded | 400mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.047" (1.20mm) |
|

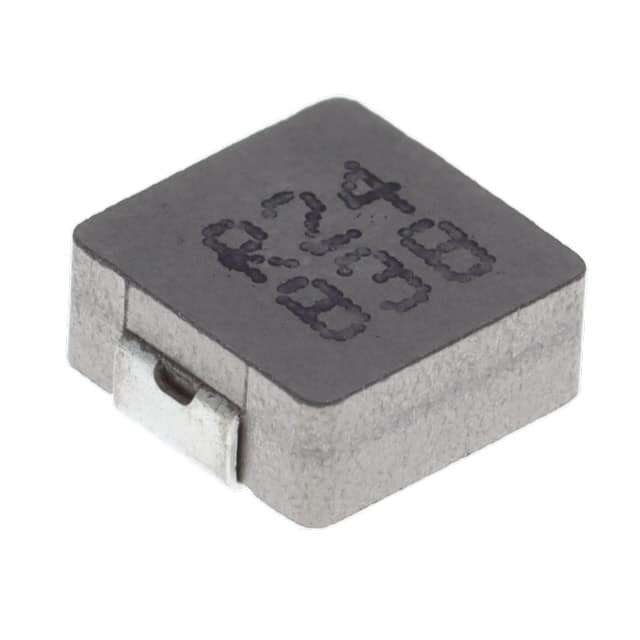

0630CDMCCDS-R24MCFIXED IND 240NH 23A 3.1MOHM SMD |
3,227 | - |
|
Datasheet | 0630CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 240 nH | ±20% | 23 A | 36.6A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
