Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDPQ2010NP-120M-250INDUCTOR |
1,616 | - |
|
Datasheet | CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 12 µH | ±20% | 14 A | 13.5A | Shielded | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
|
CDPQ2010NP-6R2M-250INDUCTOR |
1,326 | - |
|
Datasheet | CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 6.2 µH | ±20% | 20 A | 19.6A | Shielded | 2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
|
CDPQ2010NP-8R8M-250INDUCTOR |
4,780 | - |
|
Datasheet | CDPQ2010 | Nonstandard | Box | Active | Wirewound | Ferrite | 8.8 µH | ±20% | 17 A | 15.5A | Shielded | 2.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.811" W (24.00mm x 20.60mm) | 0.433" (11.00mm) |
|
CDEP147NP-9R5MC-95FIXED IND 9.5UH 8.5A 13.31 MOHM |
3,277 | - |
|
Datasheet | CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 9.5 µH | ±20% | 8.5 A | 11.2A | Shielded | 13.31mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|

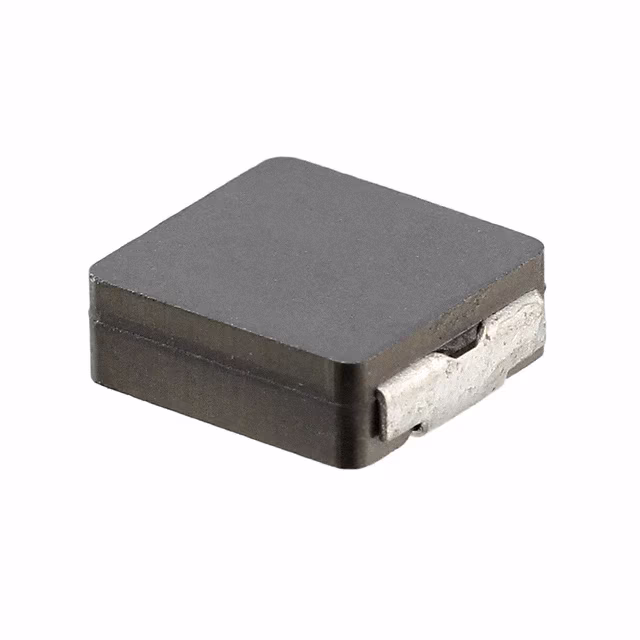

CDMC104NP-R36MFIXED IND 360NH 25A 1.1 MOHM SMD |
1,283 | - |
|
Datasheet | CDMC104 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 360 nH | ±20% | 25 A | 28A | Shielded | 1.1mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
CDEIR8D38FNP-220NCFIXED IND 22UH 2.2A 88.3MOHM SMD |
4,755 | - |
|
Datasheet | CDEIR8D38F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 2.2 A | 3A | Shielded | 88.3mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|

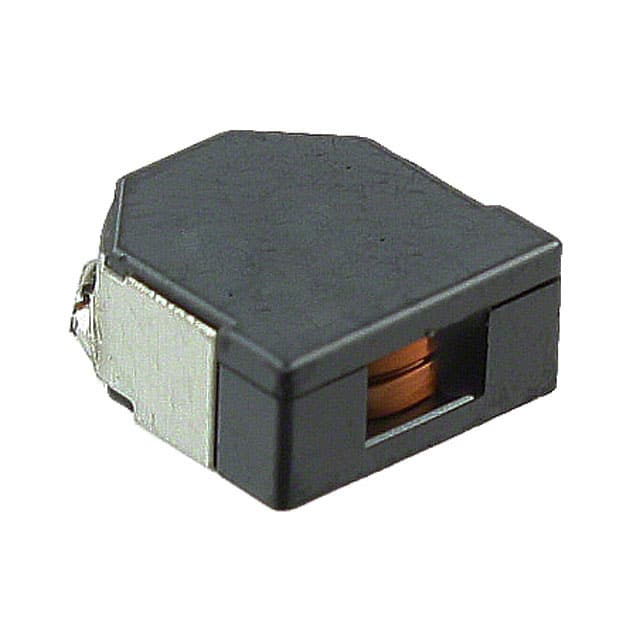

CDEIR8D38FNP-100NCFIXED IND 10UH 3.4A 43.8MOHM SMD |
3,085 | - |
|
Datasheet | CDEIR8D38F | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 3.4 A | 4.6A | Shielded | 43.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
CDEP85NP-1R1MC-125FIXED IND 1.1UH 17A 3.4 MOHM SMD |
3,785 | - |
|
Datasheet | CDEP85 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.1 µH | ±20% | 17 A | 7.8A | Shielded | 3.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.217" (5.50mm) |
|
|
CDRH12D77BT150NP-1R0NCFIXED IND 1UH 14A 5.85 MOHM SMD |
3,958 | - |
|
Datasheet | CDRH12D77B/T150 | Nonstandard | Cut Tape (CT) | Active | - | Ferrite | 1 µH | ±30% | 14 A | 31A | Shielded | 5.85mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.516" L x 0.504" W (13.10mm x 12.80mm) | 0.315" (8.00mm) |
|
|
CDEP85NP-R20MC-50FIXED IND 200NH 18A 2.5 MOHM SMD |
1,177 | - |
|
Datasheet | CDEP85 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±20% | 18 A | 32A | Shielded | 2.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.217" (5.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
