Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
54068203400FIXED IND 82NH 220MA 590MOHM SMD |
4,633 | - |
|
Datasheet | 5406 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 220 mA | - | Unshielded | 590mOhm Max | 35 @ 150MHz | 1.7GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0605 (1712 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
0520CDMCDS-R33MCFIXED IND 330NH 7.9A 8 MOHM SMD |
1,476 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 nH | ±20% | 7.9 A | 14A | Shielded | 8mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
0520CDMCDS-R68MCFIXED IND 680NH 6.6A 13 MOHM SMD |
2,940 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 680 nH | ±20% | 6.6 A | 10A | Shielded | 13mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
|
0520CDMCDS-2R2MCFIXED IND 2.2UH 4.1A 30 MOHM SMD |
1,272 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 4.1 A | 6A | Shielded | 30mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|

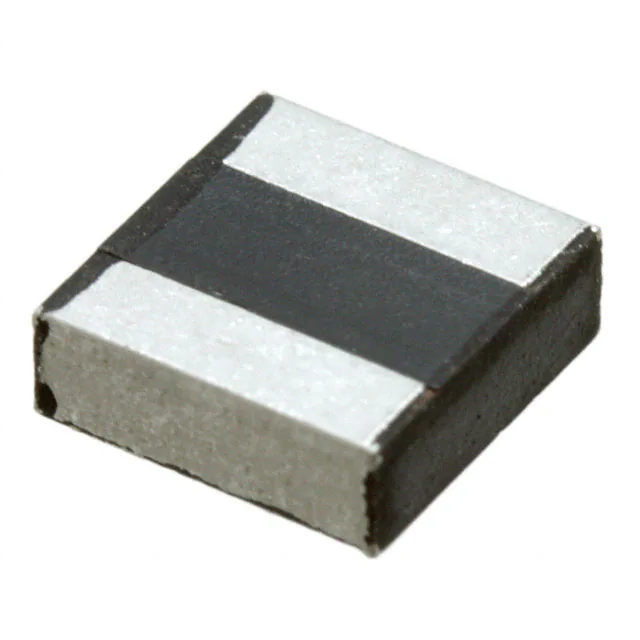

0520CDMCDS-3R3MCFIXED IND 3.3UH 3.6A 50 MOHM SMD |
4,539 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 3.6 A | 4.9A | Shielded | 50mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
|
0520CDMCDS-4R7MCFIXED IND 4.7UH 2.8A 65 MOHM SMD |
1,880 | - |
|
Datasheet | 0520CDMC/DS | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 4.7 µH | ±20% | 2.8 A | 4.4A | Shielded | 65mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.205" W (5.50mm x 5.20mm) | 0.079" (2.00mm) |
|
0420CDMCDS-6R8MCFIXED IND 6.8UH 2.6A 91 MOHM SMD |
3,065 | - |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 6.8 µH | ±20% | 2.6 A | 2.8A | Shielded | 91mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-R33MCFIXED IND 330NH 8.9A 6 MOHM SMD |
4,714 | - |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 nH | ±20% | 8.9 A | 12.6A | Shielded | 6mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-2R2MCFIXED IND 2.2UH 4.7A 35 MOHM SMD |
1,372 | - |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 4.7 A | 4.5A | Shielded | 35mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
|
|
0420CDMCDS-R47MCFIXED IND 470NH 8.1A 8.2MOHM SMD |
3,721 | - |
|
Datasheet | 0420CDMC/DS | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 470 nH | ±20% | 8.1 A | 11A | Shielded | 8.2mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.177" L x 0.161" W (4.50mm x 4.10mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
