Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH127L125NP-3R6NCFIXED IND 3.6UH 8.3A 11MOHM SMD |
1,314 | - |
|
Datasheet | CDRH127/L125 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 3.6 µH | ±30% | 8.3 A | 13.8A | Shielded | 11mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH127/LDNP-151MCFIXED IND 150UH 1.8A 227MOHM SMD |
3,354 | - |
|
Datasheet | CDRH127/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.8 A | - | Shielded | 227mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CDRH60D45BT150NP-3R3NCFIXED IND 3.3UH 3.7A 23.4MOHM SM |
1,000 | - |
|
Datasheet | CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±30% | 3.7 A | 5A | Shielded | 23.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.248" W (6.60mm x 6.30mm) | 0.189" (4.80mm) |
|
125CDMCCDS-100MCFIXED IND 10UH 9A 22 MOHM SMD |
4,321 | - |
|
Datasheet | 125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 9 A | 14A | Shielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
CDEP147NP-3R1MC-125FIXED IND 3.1UH 17.5A 3.23 MOHM |
3,251 | - |
|
Datasheet | CDEP147 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.1 µH | ±20% | 17.5 A | 16A | Shielded | 3.23mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.315" (8.00mm) |
|
CDRH4D18CLDNP-101PCFIXED IND 100UH 350MA 962MOHM SM |
890 | - |
|
Datasheet | CDRH4D18C | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±25% | 350 mA | 200mA | Shielded | 962mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|

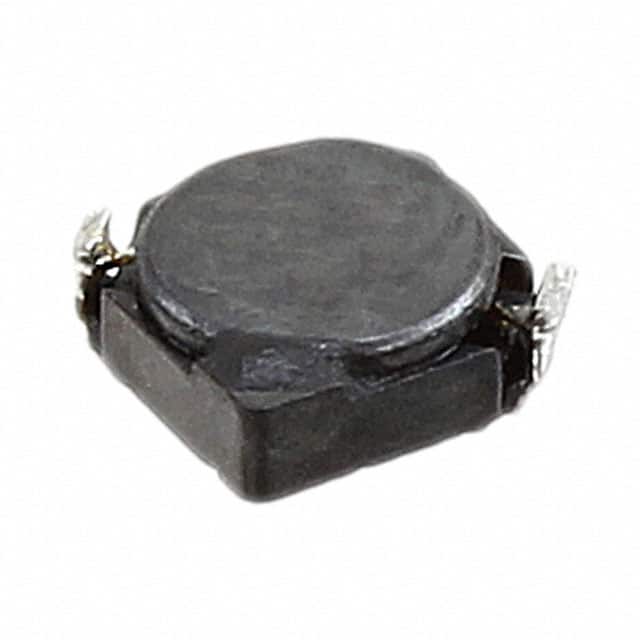

CDRH3D14NP-100NCFIXED IND 10UH 690MA 262MOHM SMD |
444 | - |
|
Datasheet | CDRH3D14 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 690 mA | 750mA | Shielded | 262mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|

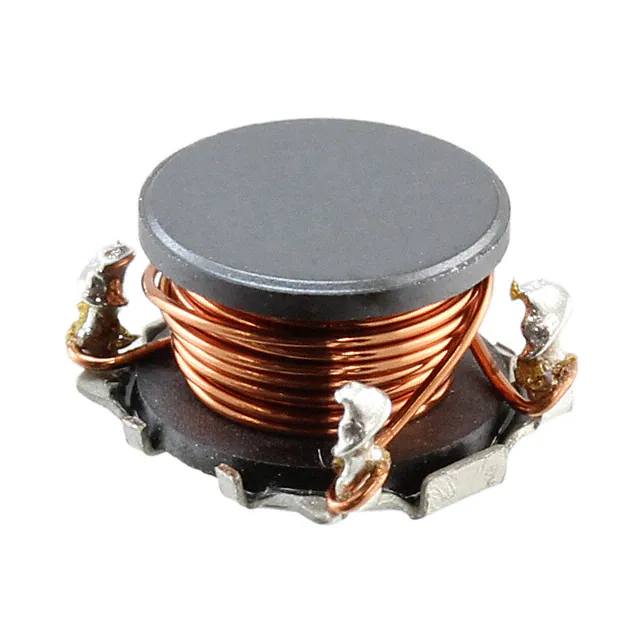

CDH74NP-470KCFIXED IND 47UH 1.2A 230 MOHM SMD |
105 | - |
|
Datasheet | CDH74 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.2 A | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.287" W (8.00mm x 7.30mm) | 0.205" (5.20mm) |
|
CDC5D23BNP-150KCFIXED IND 15UH 880MA 166MOHM SMD |
3,956 | - |
|
Datasheet | CDC5D23B | 2323 (5858 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±10% | 880 mA | - | Unshielded | 166mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.098" (2.50mm) |
|

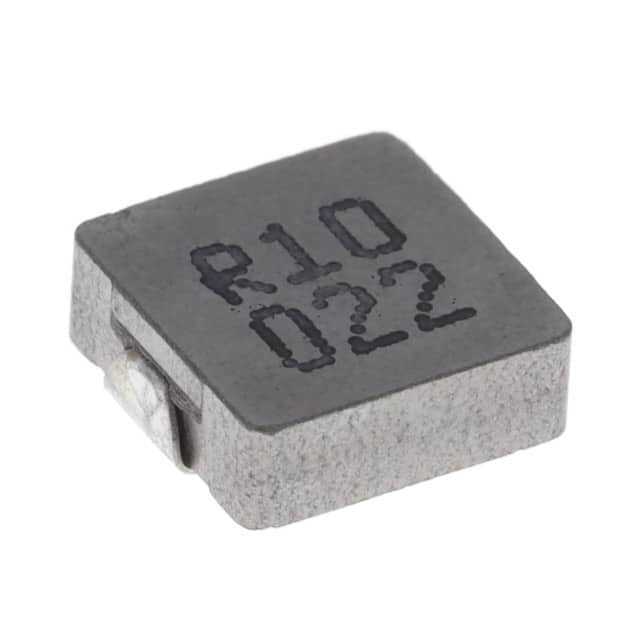

0624CDMCCDS-R10MCFIXED IND 100NH 40A 960U OHM SMD |
109 | - |
|
Datasheet | 0624CDMCCDS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 40 A | 40A | Shielded | 960µOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.094" (2.40mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
