Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LSDND4040WKT220MMFIXED IND 22UH 1.2A 460 MOHM SMD |
624 | - |
|
Datasheet | LSDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 22 µH | ±20% | 1.2 A | 1.5A | Shielded | 460mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
LCXND6060PKT2R2NMGFIXED IND 2.2UH 2.3A 66 MOHM SMD |
1,000 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 2.3 A | 3A | Unshielded | 55mOhm | - | 61MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|

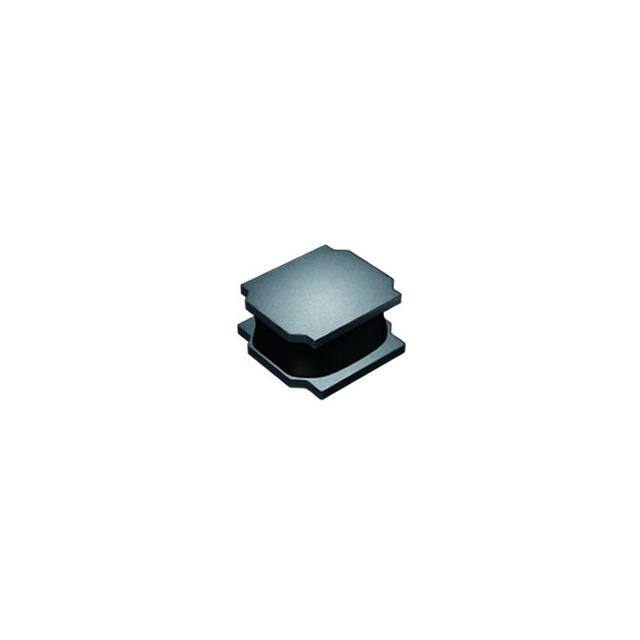

LSXBH8080YKL330MFIXED IND 33UH 1.7A 130 MOHM SMD |
924 | - |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 1.9A | Shielded | 100mOhm | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
LCXND6060PKT4R7MMGFIXED IND 4.7UH 1.9A 108MOHM SMD |
1,000 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.9 A | 2A | Unshielded | 90mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
LCXND6060PKT1R2NMGFIXED IND 1.2UH 2.75A 50.4 MOHM |
995 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.2 µH | ±30% | 2.75 A | 4A | Unshielded | 42mOhm | - | 77MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|

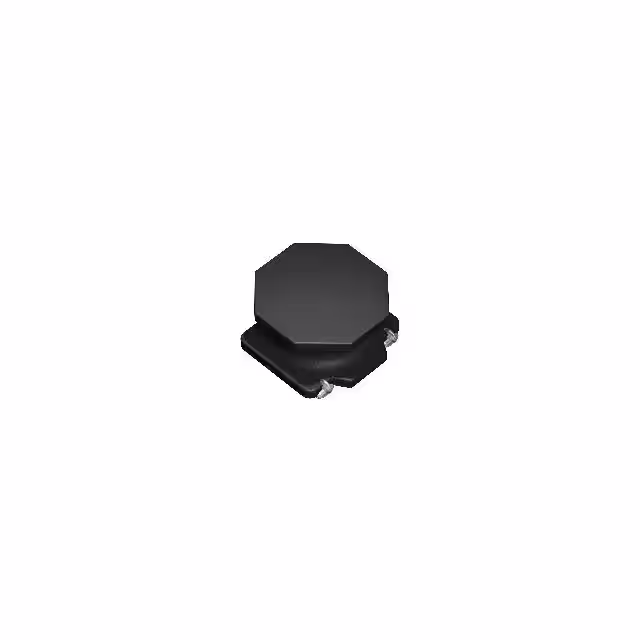

LSDND4040WKTR56NMFIXED IND 560NH 6.5A 16 MOHM SMD |
693 | - |
|
Datasheet | LSDN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 560 nH | ±30% | 6.5 A | 9A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
LCXND6060YEL100MMGFIXED IND 10UH 2.4A 59.8MOHM SMD |
988 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.4 A | 3.1A | Unshielded | 46mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCXND6060PKT220MMGFIXED IND 22UH 1A 360 MOHM SMD |
940 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 1 A | 950mA | Unshielded | 300mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.055" (1.40mm) |
|
LCXND6060YEL470MMGFIXED IND 47UH 1.15A 274.3 MOHM |
300 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 1.15 A | 1.4A | Unshielded | 211mOhm | - | 5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LCXND6060MKT220MMGFIXED IND 22UH 650MA 558MOHM SMD |
995 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 650 mA | 760mA | Unshielded | 465mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
