Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

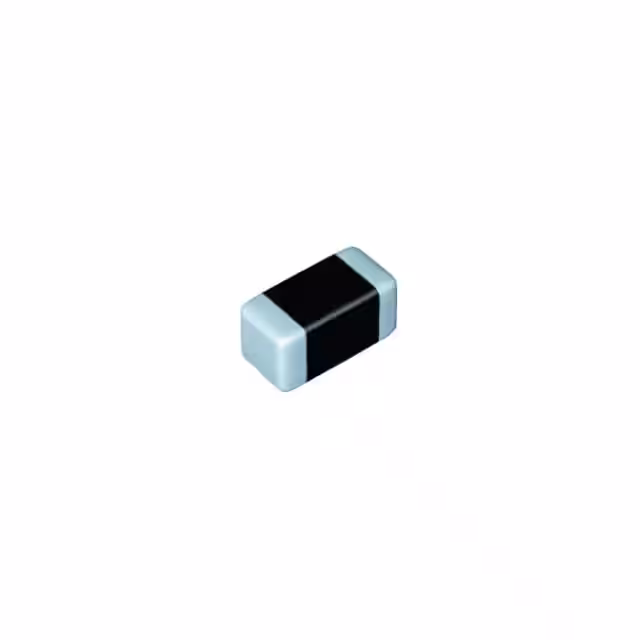

LSQPA251818T471KFIXED IND 470UH 70MA 28.6OHM SMD |
2,017 | - |
|
Datasheet | LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±10% | 70 mA | 80mA | Unshielded | 28.6Ohm Max | - | 3.5MHz | - | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|
LSQPA251818T220MFIXED IND 22UH 460MA 1.001OHM SM |
3,333 | - |
|
Datasheet | LSQP | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 460 mA | 320mA | Unshielded | 1.001Ohm Max | - | 19MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1007 | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.071" (1.80mm) |
|

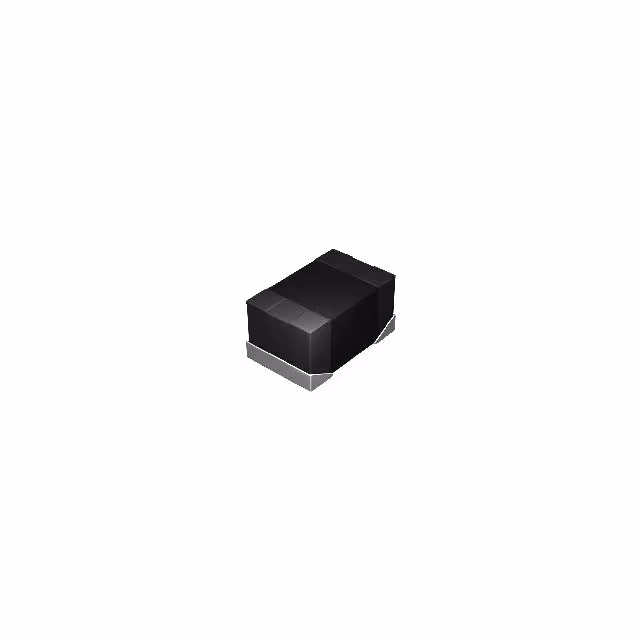

LSBHB2012KKTR24NFIXED IND 240NH 2.4A 41 MOHM SMD |
1,414 | - |
|
Datasheet | LSBH | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 240 nH | ±30% | 2.4 A | 3A | Unshielded | 41mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

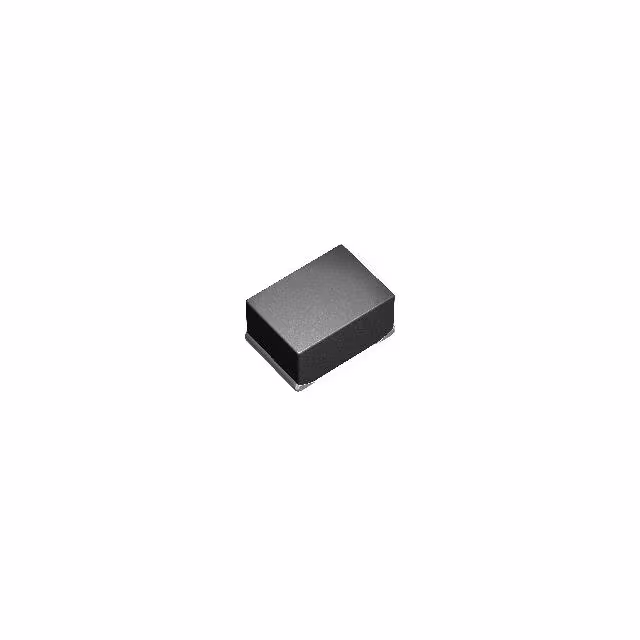

LSANB2016KKT1R5MFIXED IND 1.5UH 1.65A 130MOHM SM |
3,489 | - |
|
Datasheet | LSAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 1.65 A | 1.6A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LSEUC2016HKT1R0MWIRE-WOUND METAL POWER INDUCTORS |
4,786 | - |
|
Datasheet | LSEU | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 3 A | 3.2A | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
|
LSEUC2012KKTR33MWIRE-WOUND METAL POWER INDUCTORS |
4,639 | - |
|
Datasheet | LSEU | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 4.6 A | 5.8A | Unshielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
LSEUC2012HKTR47MWIRE-WOUND METAL POWER INDUCTORS |
3,839 | - |
|
Datasheet | LSEU | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 3.8 A | 4.5A | Unshielded | 33mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.031" (0.80mm) |
|
LSXND5050XKT470MMGFIXED IND 47UH 700MA 325MOHM SMD |
3,433 | - |
|
Datasheet | LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 700 mA | 950mA | Shielded | 422.5mOhm Max | - | 9MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.118" (3.00mm) |
|
LSXND6060MKT220MMGFIXED IND 22UH 650MA 558MOHM SMD |
4,565 | - |
|
Datasheet | LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 650 mA | 760mA | Shielded | 558mOhm Max | - | 12MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|

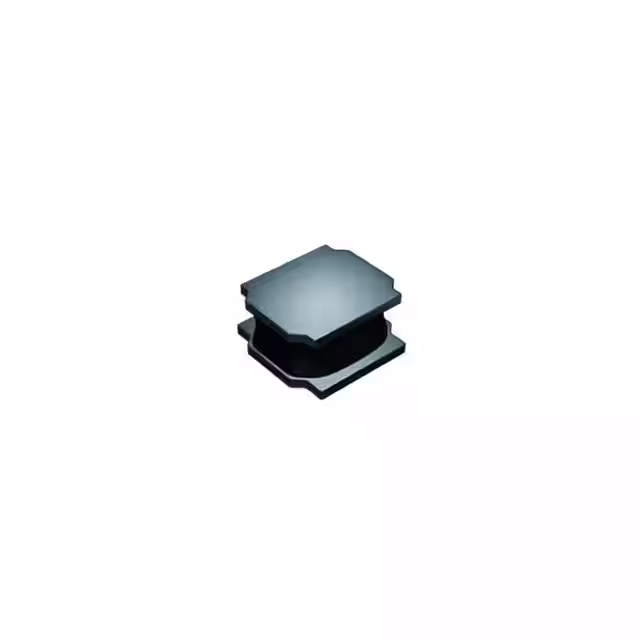

LSXBD4040TKL2R2MFIXED IND 2.2UH 1.44A 72MOHM SMD |
3,474 | - |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2.2 µH | ±20% | 1.44 A | 2.7A | Shielded | 60mOhm | - | 52MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
