Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMXND4040KKL6R8MDGFIXED IND 6.8 UH 0.8A 0.24 OHM |
2,162 | - |
|
Datasheet | LMXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 800mA | Unshielded | 200mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LBXND4040KKL1R0NDGFIXED IND 1.0 UH 1.9A 0.0672 OHM |
2,044 | - |
|
Datasheet | LBXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.9 A | 2A | Unshielded | 56mOhm | - | 116MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LBXND4040KKL6R8MDGFIXED IND 6.8 UH 0.8A 0.24 OHM |
2,733 | - |
|
Datasheet | LBXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 800mA | Unshielded | 200mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LMXND4040KKL4R7MDGFIXED IND 4.7 UH 0.95A 0.168 OHM |
2,535 | - |
|
Datasheet | LMXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 950mA | Shielded | 140mOhm | - | 47MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LBXND4040KKL220MDGFIXED IND 22 UH 0.45A 0.684 OHM |
3,477 | - |
|
Datasheet | LBXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 500 mA | 450mA | Unshielded | 570mOhm | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LLXBD4040TKL6R8MFIXED IND 6.8UH 1.06A 132MOHM SM |
4,473 | - |
|
Datasheet | LLXB | 1616 (4040 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 1.06 A | 1.45A | Shielded | 110mOhm | - | 29MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXBD4040TKL220MFIXED IND 22UH 590MA 432MOHM SMD |
3,024 | - |
|
Datasheet | LLXB | 1616 (4040 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 590 mA | 800mA | Shielded | 360mOhm | - | 16MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

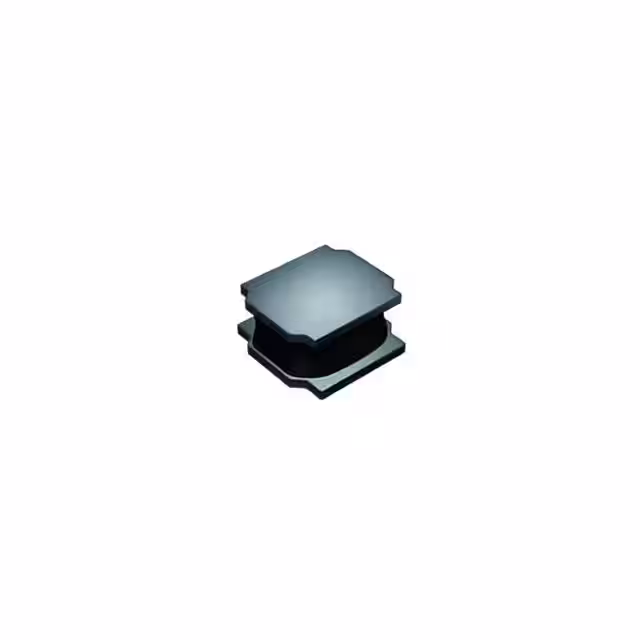

LSXBD4040TKL680MFIXED IND 68UH 320MA 1.2 OHM SMD |
4,700 | - |
|
Datasheet | LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 68 µH | ±20% | 320 mA | 470mA | Shielded | 1Ohm | - | 8.3MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXBD4040TKL221MFIXED IND 220UH 170MA 4.8OHM SMD |
1,431 | - |
|
Datasheet | LLXB | 1616 (4040 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 220 µH | ±20% | 170 mA | 270mA | Shielded | 4Ohm | - | 4MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
LLXBD4040TKL151MFIXED IND 150UH 220MA 3 OHM SMD |
4,054 | - |
|
Datasheet | LLXB | 1616 (4040 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 150 µH | ±20% | 220 mA | 310mA | Shielded | 2.5Ohm | - | 5.5MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
