Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLXBD4040KKL220MFIXED IND 22UH 400MA 1.044OHM SM |
3,275 | - |
|
Datasheet | LLXB | 1616 (4040 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 400 mA | 360mA | Shielded | 870mOhm | - | 19MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LLXBD4040KKL2R2NFIXED IND 2.2UH 890MA 180MOHM SM |
1,016 | - |
|
Datasheet | LLXB | 1616 (4040 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2.2 µH | ±30% | 890 mA | 1.15A | Shielded | 150mOhm | - | 73MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LLXBD4040KKL150MFIXED IND 15UH 510MA 612MOHM SMD |
2,259 | - |
|
Datasheet | LLXB | 1616 (4040 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 510 mA | 470mA | Shielded | 510mOhm | - | 24MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LLXBD4040KKL1R0NFIXED IND 1UH 1.05A 120 MOHM SMD |
3,245 | - |
|
Datasheet | LLXB | 1616 (4040 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1 µH | ±30% | 1.05 A | 1.8A | Shielded | 100mOhm | - | 116MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|

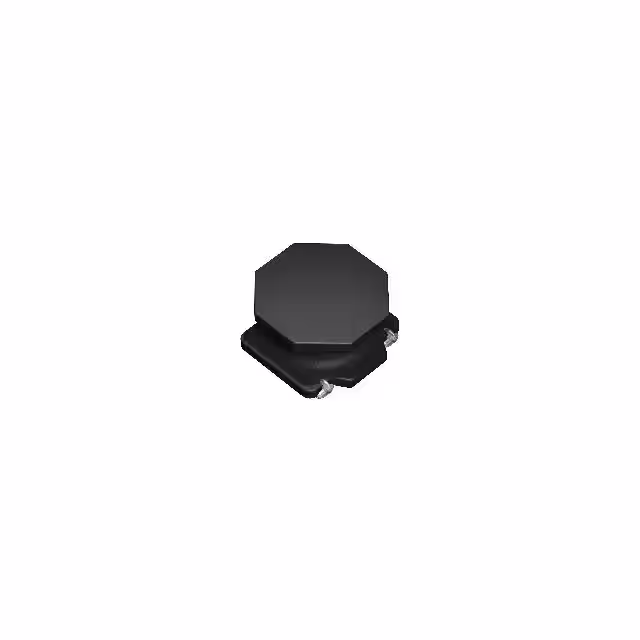

LLDND1616KKT1R0MMFIXED IND 1UH 1.7A 85 MOHM SMD |
2,519 | - |
|
Datasheet | LLDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1 µH | ±20% | 1.2 A | 2.2A | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.039" (1.00mm) |
|
LSDND1616KKT4R7MMFIXED IND 4.7UH 550MA 640MOHM SM |
3,197 | - |
|
Datasheet | LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 550 mA | 950mA | Shielded | 640mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.039" (1.00mm) |
|
LSDND2020JET100MMFIXED IND 10UH 600MA 1.04OHM SMD |
3,428 | - |
|
Datasheet | LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 10 µH | ±20% | 550 mA | 700mA | Shielded | 1.04Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.037" (0.95mm) |
|
LSDND2020KKT3R3MMFIXED IND 3.3UH 940MA 275MOHM SM |
2,548 | - |
|
Datasheet | LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 940 mA | 1.3A | Shielded | 275mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
LSDND1616KKT3R3MMFIXED IND 3.3UH 650MA 515MOHM SM |
1,456 | - |
|
Datasheet | LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 3.3 µH | ±20% | 650 mA | 1.15A | Shielded | 515mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.039" (1.00mm) |
|
LSDND1616KKT2R2MMFIXED IND 2.2UH 1.65A 165MOHM SM |
2,635 | - |
|
Datasheet | LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 2.2 µH | ±20% | 950 mA | 1.5A | Shielded | 250mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.039" (1.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
