Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXND5050WKT470MMGFIXED IND 47UH 0.56A 522 MOHM SM |
4,246 | - |
|
Datasheet | LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 47 µH | ±20% | 560 mA | 630mA | Unshielded | 435mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
-1,45mm.jpg "LBC2012T2R2M")
|
LBC2012T2R2MFIXED IND 2.2UH 430MA 330MOHM SM |
3,717 | - |
|
Datasheet | LB, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 430 mA | - | Unshielded | 330mOhm | - | 70MHz | - | -25°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-1,80mm.jpg "LBM2016TR12J")
|
LBM2016TR12JFIXED IND 120NH 610MA 130MOHM SM |
1,388 | - |
|
Datasheet | LB, M Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±5% | 610 mA | - | Unshielded | 130mOhm | 30 @ 25.2MHz | 600MHz | - | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LLQCA322525T100KRFIXED IND 10UH 540MA 133MOHM SMD |
1,508 | - |
|
Datasheet | LLQC | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 540 mA | - | Unshielded | 172.9mOhm Max | - | 23MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.106" (2.70mm) |
|
NRS5014TR47NMGGFIXED IND 470NH 3.3A 25 MOHM SMD |
3,928 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 3.3 A | 5.8A | Shielded | 25mOhm Max | - | 185MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
|
NRS5014T150MMGGFIXED IND 15UH 650MA 384MOHM SMD |
2,788 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 650 mA | 1.1A | Shielded | 384mOhm Max | - | 20MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
|
NRS5014T220MMGGFIXED IND 22UH 550MA 540MOHM SMD |
1,157 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 550 mA | 900mA | Shielded | 540mOhm Max | - | 16MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LLCNB1210EKTR47MBFIXED IND 470NH 1.6A 82 MOHM SMD |
3,668 | - |
|
Datasheet | LLCN | 0504 (1210 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 1.6 A | 2.3A | Unshielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0504 | 0.049" L x 0.041" W (1.25mm x 1.05mm) | 0.020" (0.50mm) |
|

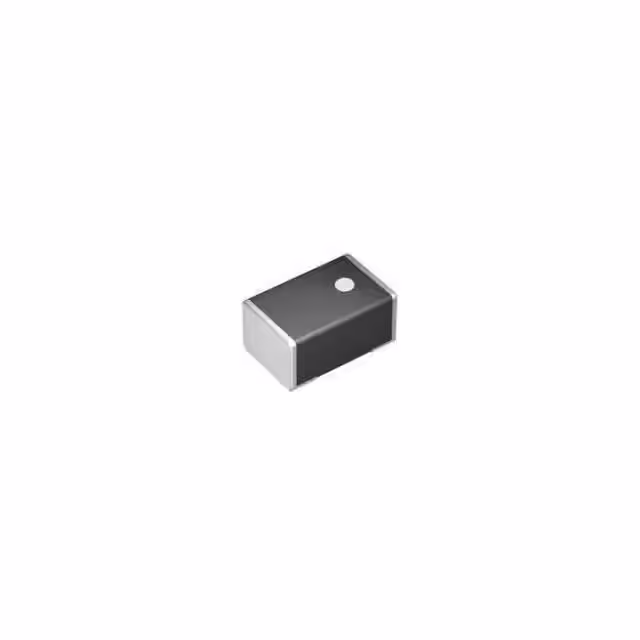

LSCNB1210EKTR47MBFIXED IND 470NH 1.6A 82 MOHM SMD |
4,528 | - |
|
Datasheet | LSCN | 0504 (1210 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 470 nH | ±20% | 1.6 A | 2.3A | Unshielded | 82mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0504 | 0.049" L x 0.041" W (1.25mm x 1.05mm) | 0.020" (0.50mm) |
|
NRS5020T470MMGJVFIXED IND 47UH 0.56A 522 MOHM SM |
2,637 | - |
|
Datasheet | NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 560 mA | 630mA | Shielded | 522mOhm Max | - | 12MHz | AEC-Q200 | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
