Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LLXBD6060WKL4R7NFIXED IND 4.7UH 2A 69.6 MOHM SMD |
3,592 | - |
|
Datasheet | LLXB | 2424 (6060 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 4.7 µH | ±30% | 2 A | 2.4A | Shielded | 58mOhm | - | 43MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|

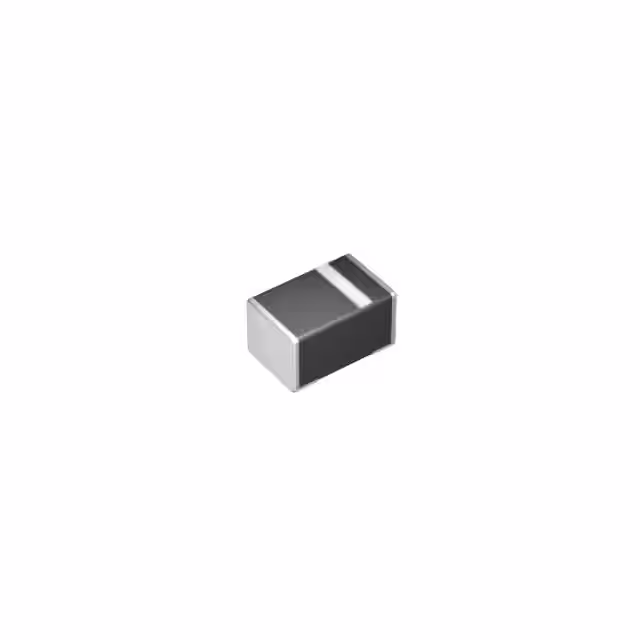

LLCNB1005EET1R0MBFIXED IND 1UH 800MA 300 MOHM SMD |
3,454 | - |
|
Datasheet | LLCN | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1 µH | ±20% | 800 mA | 1A | Unshielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
LLXBD5050YAL2R2NFIXED IND 2.2UH 3.5A 28.6MOHM SM |
2,765 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2.2 µH | ±30% | 3.5 A | 4.6A | Shielded | 22mOhm | - | 42MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LLXBD5050YAL4R7NFIXED IND 4.7UH 3.1A 37.7MOHM SM |
4,882 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 4.7 µH | ±30% | 3.1 A | 3.3A | Shielded | 29mOhm | - | 28MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LLXBD5050YAL1R5NFIXED IND 1.5UH 3.6A 26 MOHM SMD |
3,115 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1.5 µH | ±30% | 3.6 A | 6A | Shielded | 20mOhm | - | 60MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LLXBD5050YKL150MFIXED IND 15UH 1.8A 104 MOHM SMD |
3,931 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 2A | Shielded | 80mOhm | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
LLXBD5050YKL220MFIXED IND 22UH 1.4A 163.8MOHM SM |
1,309 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 1.4 A | 1.6A | Shielded | 126mOhm | - | 9MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
LLXBD5050YKL330MFIXED IND 33UH 1.2A 234 MOHM SMD |
1,752 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 33 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm | - | 7MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
LLXBD5050YAL6R8MFIXED IND 6.8UH 2.3A 63.7MOHM SM |
3,833 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 2.3 A | 2.6A | Shielded | 49mOhm | - | 21MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
LLXBD5050YKL470MFIXED IND 47UH 900MA 403MOHM SMD |
4,911 | - |
|
Datasheet | LLXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 900 mA | 1.1A | Shielded | 310mOhm | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
