Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXND6060WKL0R8NMGFIXED IND 800NH 4.1A 24 MOHM SMD |
3,685 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 800 nH | ±30% | 4.1 A | 6.4A | Unshielded | 20mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LCXND6060WKL220MMGFIXED IND 22UH 950MA 348MOHM SMD |
4,210 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 950 mA | 1.25A | Unshielded | 290mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LCXND6060WKL3R3NMGFIXED IND 3.3UH 2.75A 48MOHM SMD |
4,995 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 2.75 A | 2.8A | Unshielded | 40mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LCXND6060WKL6R8NMGFIXED IND 6.8UH 1.8A 102MOHM SMD |
3,346 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±30% | 1.8 A | 2A | Unshielded | 85mOhm | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LCXND6060WKL2R2NMGFIXED IND 2.2UH 2.9A 40.8MOHM SM |
4,745 | - |
|
Datasheet | LCXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±30% | 2.9 A | 3.2A | Unshielded | 34mOhm | - | 73MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
|
LBXND6060WHL150MMGFIXED IND 15 UH 1.6A 0.1235 OHM |
4,688 | - |
|
Datasheet | LBXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 1.8 A | 1.6A | Unshielded | 95mOhm | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LLXBH8080YBL1R4NFIXED IND 1.4UH 7A 9.1 MOHM SMD |
1,323 | - |
|
Datasheet | LLXB | 3131 (8080 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1.4 µH | ±30% | 7 A | 9A | Shielded | 7mOhm | - | 63MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
LLXBH8080YBL4R7NFIXED IND 4.7UH 4.1A 23.4MOHM SM |
4,731 | - |
|
Datasheet | LLXB | 3131 (8080 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 4.7 µH | ±30% | 4.1 A | 4.7A | Shielded | 18mOhm | - | 30MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|

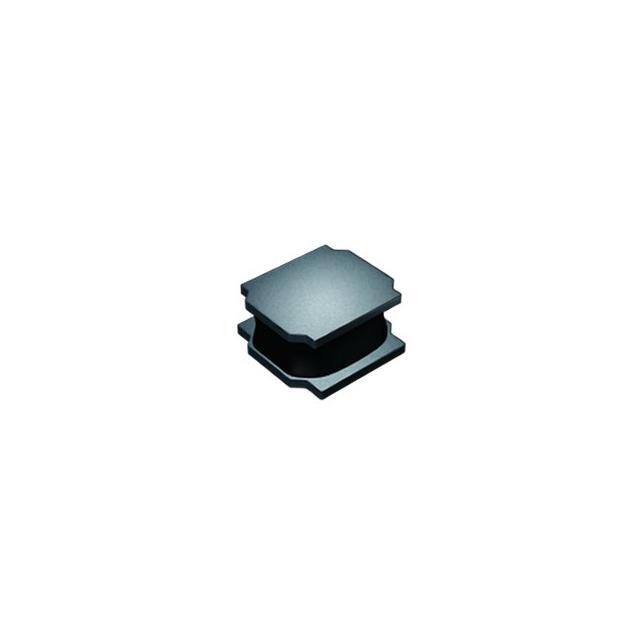

LLXBH8080YKL470MFIXED IND 47UH 1.4A 195 MOHM SMD |
2,690 | - |
|
Datasheet | LLXB | 3131 (8080 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 1.4 A | 1.5A | Shielded | 150mOhm | - | 8MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

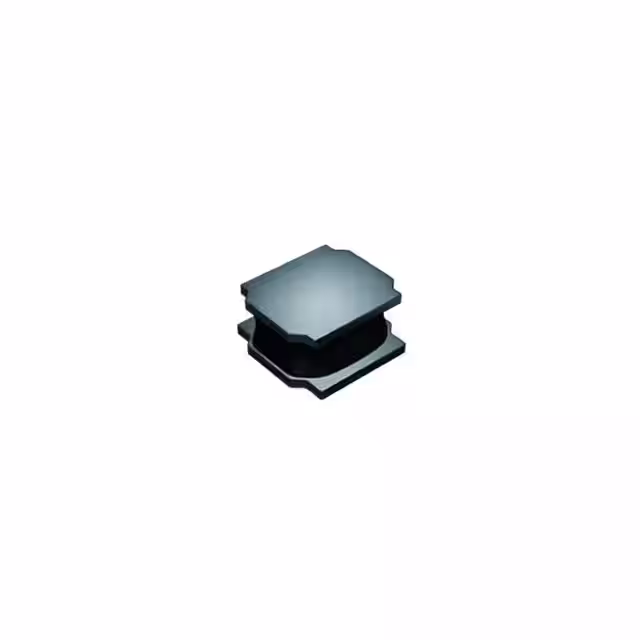

LLXBH8080YBL2R0NFIXED IND 2UH 6.3A 11.7 MOHM SMD |
2,255 | - |
|
Datasheet | LLXB | 3131 (8080 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 2 µH | ±30% | 6.3 A | 7.4A | Shielded | 9mOhm | - | 50MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
