Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDKK3030T1R5MMFIXED IND 1.5UH 2.1A 100MOHM SMD |
2,523 | - |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 2.1 A | 3A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
MDKK3030T3R3MMFIXED IND 3.3UH 1.25A 265MOHM SM |
3,617 | - |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.25 A | 2A | Shielded | 265mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
MDKK3030T4R7MMFIXED IND 4.7UH 1.1A 362MOHM SMD |
1,515 | - |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.1 A | 1.7A | Shielded | 362mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
MDKK3030TR47MMFIXED IND 470NH 3.5A 39 MOHM SMD |
3,724 | - |
|
Datasheet | MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.5 A | 5.4A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
LLXBH8080YKL101MFIXED IND 100UH 1A 377 MOHM SMD |
4,612 | - |
|
Datasheet | LLXB | 3131 (8080 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 100 µH | ±20% | 1 A | 1A | Shielded | 377mOhm Max | - | 6MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
LLXBH8080YKL100MFIXED IND 10UH 3.1A 44.2MOHM SMD |
4,974 | - |
|
Datasheet | LLXB | 3131 (8080 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 10 µH | ±20% | 3.1 A | 3.4A | Shielded | 44.2mOhm Max | - | 22MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
LSXBH8080YBL1R4NFIXED IND 1.4UH 7A 9.1 MOHM SMD |
2,035 | - |
|
Datasheet | LSXB | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 1.4 µH | ±30% | 7 A | 9A | Shielded | 7mOhm | - | 63MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
|
LLXBH8080YKL220MFIXED IND 22UH 2.2A 85.8MOHM SMD |
3,044 | - |
|
Datasheet | LLXB | 3131 (8080 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 2.2 A | 2.2A | Shielded | 85.8mOhm Max | - | 13MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|

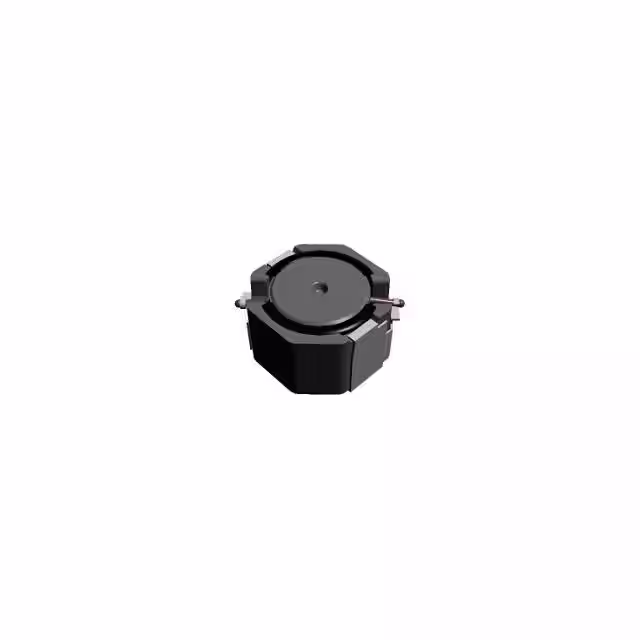

LAYPH06045DL680MGAFIXED IND 68UH 1.1A 210 MOHM SMD |
3,881 | - |
|
Datasheet | LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 730 mA | 800mA | Shielded | 210mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
|
LAYPH06045DL331MGAFIXED IND 330UH 470MA 950MOHM SM |
2,532 | - |
|
Datasheet | LAYP | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 300 mA | 360mA | Shielded | 950mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.189" (4.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
