Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLCF5020T-101MR27FIXED IND 100UH 270MA 1.581 OHM |
5,181 | - |
|
Datasheet | VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 270 mA | 270mA | Shielded | 1.581Ohm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
TFM201208BLD-R33MTCAINDUCTORS FOR POWER CIRCUITS, TH |
3,570 | - |
|
Datasheet | TFM-BLD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 4 A | 5A | Shielded | 32mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.031" (0.80mm) |
|
TMS252012ALM-1R5MTAAFIXED IND 1.5UH 3.1A 60 MOHM SMD |
6,087 | - |
|
Datasheet | TMS-ALM | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.1 A | 3.3A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
SPM6550T-1R0M100AFIXED IND 1.09UH 14.1A 5.2 MOHM |
3,450 | - |
|
Datasheet | SPM | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.09 µH | ±20% | 14.1 A | 15.3A | Shielded | 5.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.197" (5.00mm) |
|
VLS3012HBX-R33N-NINDUCTORS FOR POWER CIRCUITS, WO |
1,830 | - |
|
Datasheet | VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±30% | 6.1 A | 8.6A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLCF5020T-3R3N2R0-1FIXED IND 3.3UH 2.02A 96MOHM SMD |
5,860 | - |
|
Datasheet | VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.02 A | 2.02A | Shielded | 96mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
ADL2012S-1R2M-T01INDUCTORS FOR DECOUPLING CIRCUIT |
3,864 | - |
|
Datasheet | ADL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 550 mA | - | Unshielded | 500mOhm Max | - | 500MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.087" L x 0.049" W (2.20mm x 1.25mm) | 0.069" (1.75mm) |
|

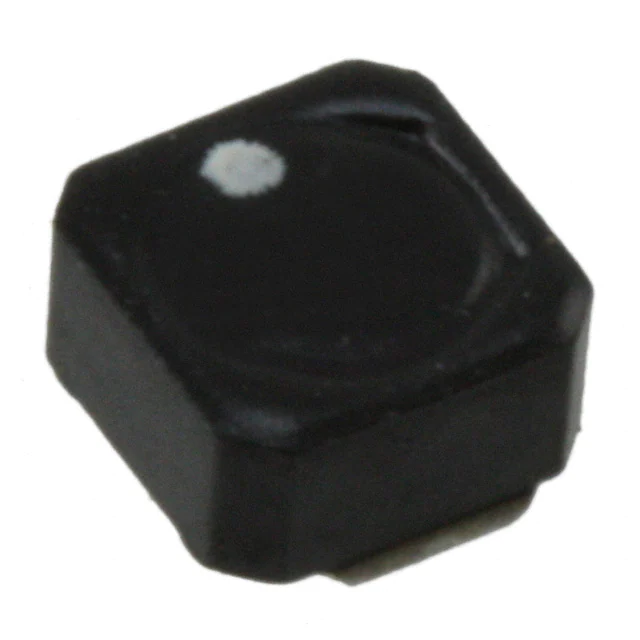

VLCF4024T-220MR65-2FIXED IND 22UH 650MA 332MOHM SMD |
1,928 | - |
|
Datasheet | VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 650 mA | 650mA | Shielded | 332mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.094" (2.40mm) |
|
TFM201210ALMAR33MTAAINDUCTORS FOR POWER CIRCUITS, AU |
5,585 | - |
|
Datasheet | TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 3.6 A | 3.9A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
VLCF4018T-220MR49-2FIXED IND 22UH 490MA 369MOHM SMD |
3,288 | - |
|
Datasheet | VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 490 mA | 490mA | Shielded | 369mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
