Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTF3020T-100M-DFIXED IND 10UH 820MA 260MOHM SMD |
10,890 | - |
|
Datasheet | LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 820 mA | 590mA | Shielded | 260mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|
|
LTF3020T-2R2N-DFIXED IND 2.2UH 1.58A 77MOHM SMD |
3,478 | - |
|
Datasheet | LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.58 A | 1.2A | Shielded | 77mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|
SPM6545VT-R15M-DFIXED IND 150NH 23.2A 0.0019OHM |
1,728 | - |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 150 nH | ±20% | 23.2 A | 20.6A | Shielded | 1.9mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 6545 | 0.276" L x 0.256" W (7.00mm x 6.50mm) | 0.177" (4.50mm) |
|
SPM10040XT-R33MFIXED IND 330NH 25A 1.21MOHM SMD |
1,440 | - |
|
Datasheet | SPM-XT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 330 nH | ±20% | 25 A | 42A | Shielded | 1.21mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
SPM5015T-1R5M-LRFIXED IND 1.5UH 5.2A 36.9MOHM SM |
3,563 | - |
|
Datasheet | SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 5.2 A | 6A | Shielded | 36.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|
|
SPM5010T-100M-LRFIXED IND 10UH 1.2A 488.7MOHM SM |
633 | - |
|
Datasheet | SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.2 A | 1.6A | Shielded | 488.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|
SPM4030T-1R5MFIXED IND 1.5UH 6.2A 25.08 MOHM |
181 | - |
|
Datasheet | SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 6.2 A | 3.5A | Shielded | 25.08mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.118" (3.00mm) |
|
|
SPM5010T-1R0M-LRFIXED IND 1UH 3.3A 60.5 MOHM SMD |
987 | - |
|
Datasheet | SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3.3 A | 5A | Shielded | 60.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.039" (1.00mm) |
|

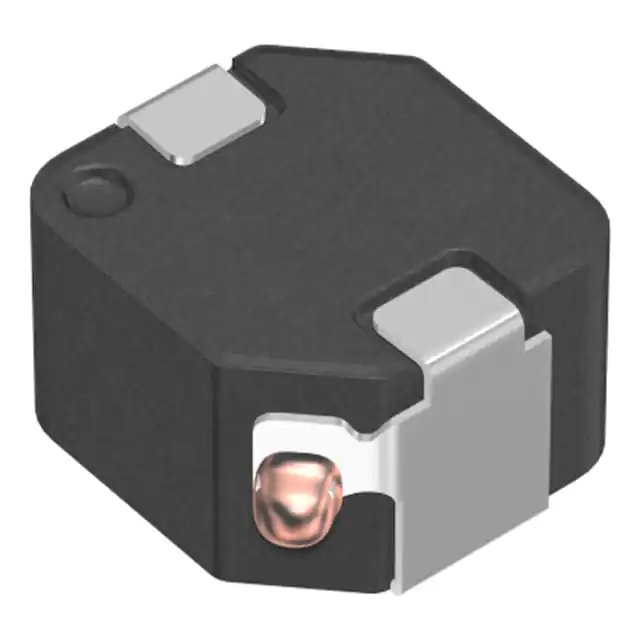

SPM4030T-1R0M-HZFIXED IND 1UH 4.4A 16.17MOHM SMD |
750 | - |
|
Datasheet | SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.4 A | 4.4A | Shielded | 16.17mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.157" W (4.10mm x 4.00mm) | 0.118" (3.00mm) |
|
SPM6530T-R47M-HZFIXED IND 470NH 20.5A 3.63 MOHM |
873 | - |
|
Datasheet | SPM-HZ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 20.5 A | 14.7A | Shielded | 3.63mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.256" W (7.10mm x 6.50mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
