Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLBU10060120T-R15LFIXED IND 150NH 83A 0.12MOHM SMD |
300 | - |
|
Datasheet | VLBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±15% | 83 A | 92A | Unshielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
HPL505032F1070MRD3PFIXED IND 70NH 34A 777 MOHM SMD |
2,492 | - |
|
Datasheet | HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±20% | 34 A | - | Unshielded | 0.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.126" (3.20mm) |
|
|
HPL505032F1080MRD3PFIXED IND 80NH 34A 777 MOHM SMD |
1,938 | - |
|
Datasheet | HPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 80 nH | ±20% | 34 A | - | Unshielded | 0.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.126" (3.20mm) |
|
VLB7050HT-R11MFIXED IND 110NH 36A 0.27MOHM SMD |
342 | - |
|
Datasheet | VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 110 nH | ±20% | 36 A | 47A | Unshielded | 0.27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.268" L x 0.264" W (6.80mm x 6.70mm) | 0.197" (5.00mm) |
|

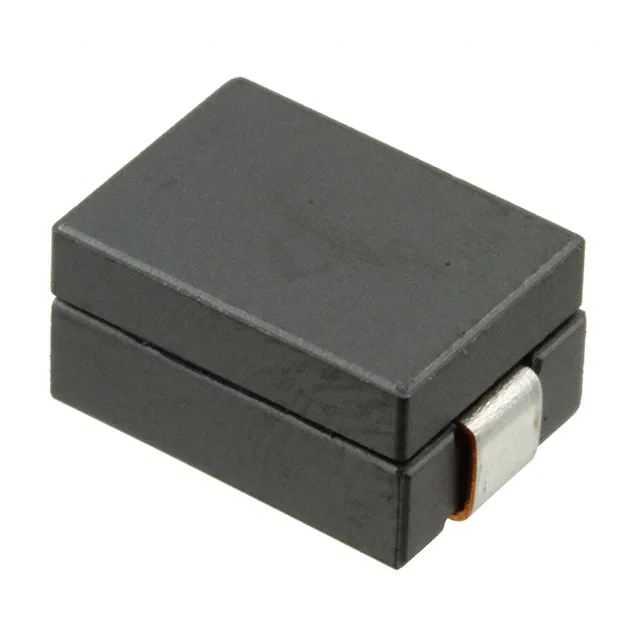

VLB10050HT-R12MFIXED IND 120NH 31A 0.35MOHM SMD |
8,609 | - |
|
Datasheet | VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±20% | 31 A | 68A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.386" L x 0.264" W (9.80mm x 6.70mm) | 0.197" (5.00mm) |
|
VLM10555T-2R5M8R0-2FIXED IND 2.5UH 8A 7.71 MOHM SMD |
366 | - |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 2.5 µH | ±20% | 8 A | 15A | Shielded | 7.71mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
|
VLM10555T-4R3M7R2-2FIXED IND 4.3UH 7.2A 9.55MOHM SM |
312 | - |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.3 µH | ±20% | 7.2 A | 9A | Shielded | 9.55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
|
VLM10555T-3R3M7R2-2FIXED IND 3.3UH 7.2A 9.55MOHM SM |
302 | - |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 7.2 A | 12A | Shielded | 9.55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
SPM12565VT-1R5M-DFIXED IND 1.5UH 22.3A 0.0028OHM |
349 | - |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.5 µH | ±20% | 22.3 A | 32.8A | Shielded | 2.8mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
|
SPM12565VT-6R8M-DFIXED IND 6.8UH 11.6A 0.0103OHM |
518 | - |
|
Datasheet | SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 11.6 A | 20.9A | Shielded | 10.3mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
