Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLM10555T-R45M110-3FIXED IND 450NH 11A 2.6 MOHM SMD |
1,535 | - |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 450 nH | ±20% | 11 A | 40A | Shielded | 2.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
|
VLM10555T-1R2M100-3FIXED IND 1.2UH 10A 3.2 MOHM SMD |
4,025 | - |
|
Datasheet | VLM | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 10 A | 18A | Shielded | 3.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.413" W (10.60mm x 10.50mm) | 0.220" (5.60mm) |
|
LGJ7045TC-1R0N-HFIXED IND 1UH 5.2A 9.6 MOHM SMD |
2,518 | - |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.2 A | 8.9A | Shielded | 9.6mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-1R5N-HFIXED IND 1.5UH 4.9A 11 MOHM SMD |
3,517 | - |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.9 A | 7.3A | Shielded | 11mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-330M-HFIXED IND 33UH 1.4A 110 MOHM SMD |
1,032 | - |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.4 A | 1.55A | Shielded | 110mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-331M-HFIXED IND 330UH 420MA 1.03OHM SM |
1,608 | - |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 420 mA | 490mA | Shielded | 1.03Ohm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
|

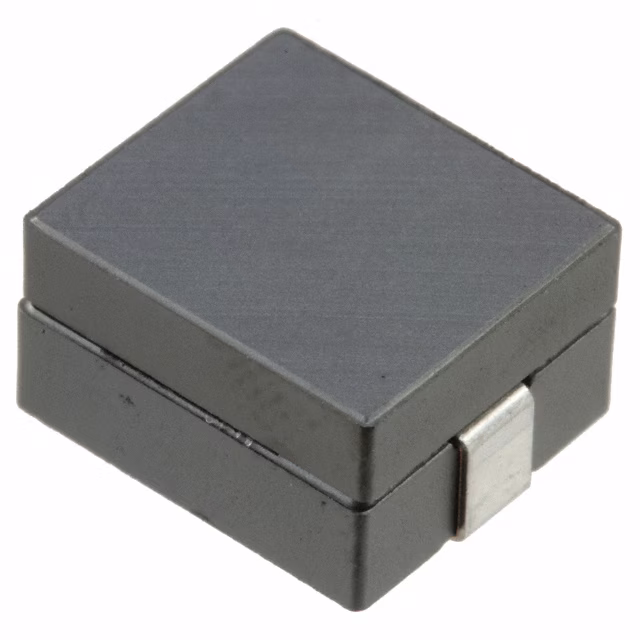

VLB12065HT-R29MFIXED IND 290NH 27A 0.44MOHM SMD |
4,629 | - |
|
Datasheet | VLB | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 290 nH | ±20% | 27 A | 48A | Unshielded | 0.44mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.457" L x 0.382" W (11.60mm x 9.70mm) | 0.256" (6.50mm) |
|
LGJ10145TS-331MR54-HFIXED IND 330UH 580MA 680MOHM SM |
2,285 | - |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 580 mA | 540mA | Shielded | 680mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.177" (4.50mm) |
|
|
LGJ10145TS-150M2R2-HFIXED IND 15UH 2.2A 47.2MOHM SMD |
2,558 | - |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.2 A | 2.4A | Shielded | 47.2mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.177" (4.50mm) |
|
|
LGJ7045TC-1R0N-DFIXED IND 1UH 5.2A 9.6 MOHM SMD |
3,949 | - |
|
Datasheet | LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 5.2 A | 8.9A | Shielded | 9.6mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.177" (4.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
