Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM10040T-2R2M-HZFIXED IND 2.2UH 16.7A 7.46 MOHM |
690 | - |
|
Datasheet | SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 16.7 A | 9.7A | Shielded | 7.46mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
SPM10040T-1R5M-HZRAUTO IND 1.5H 17.2A 4.29MOHM |
191 | - |
|
Datasheet | SPM-HZR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 1.5 µH | ±20% | 17.2 A | 16.6A | Shielded | 4.29mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
SLF12575T-470M2R7-HFIXED IND 47UH 2.7A 63.36MOHM SM |
514 | - |
|
Datasheet | SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | 2.7A | Shielded | 63.36mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SLF12575T-330M3R2-HFIXED IND 33UH 3.2A 47.4MOHM SMD |
503 | - |
|
Datasheet | SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.2 A | 3.2A | Shielded | 47.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SLF12575T-101M1R9-HFIXED IND 100UH 1.9A 125MOHM SMD |
472 | - |
|
Datasheet | SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.9 A | 1.9A | Shielded | 125mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
SPM10054T-100M-HZFIXED IND 10UH 10.6A 24.31 MOHM |
135 | - |
|
Datasheet | SPM-HZ | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Metal | 10 µH | ±20% | 10.6 A | 4.6A | Shielded | 24.31mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
VLBS1007083T-R20LFIXED IND 200NH 70A 0.18MOHM SMD |
880 | - |
|
Datasheet | VLBS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±15% | 70 A | 50A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.327" (8.30mm) |
|
VLB10050HT-R15MFIXED IND 150NH 31A 0.35MOHM SMD |
1,734 | - |
|
Datasheet | VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 31 A | 52A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.386" L x 0.264" W (9.80mm x 6.70mm) | 0.197" (5.00mm) |
|

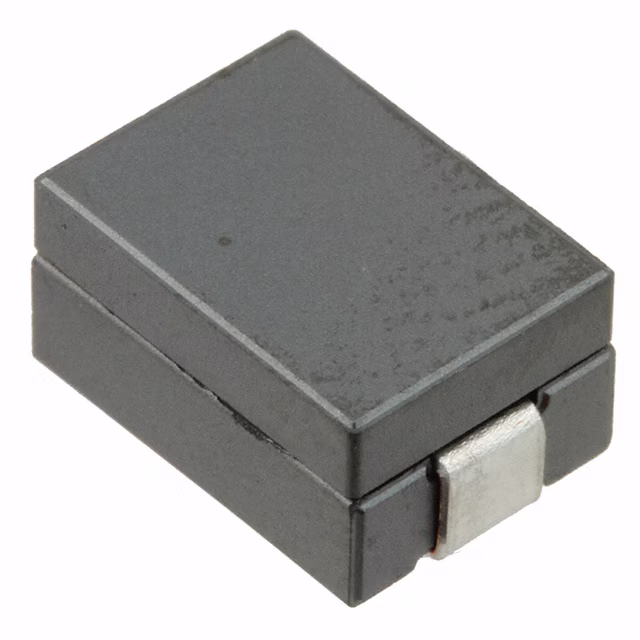

VLB10050HT-R20MFIXED IND 200NH 31A 0.35MOHM SMD |
724 | - |
|
Datasheet | VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±20% | 31 A | 37A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.386" L x 0.264" W (9.80mm x 6.70mm) | 0.197" (5.00mm) |
|

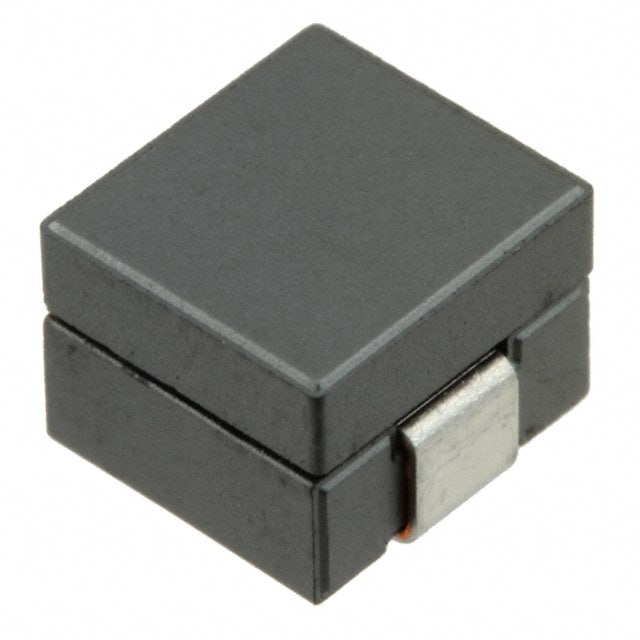

VLB7050HT-R15MFIXED IND 150NH 36A 0.27MOHM SMD |
378 | - |
|
Datasheet | VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 36 A | 37A | Unshielded | 0.27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.268" L x 0.264" W (6.80mm x 6.70mm) | 0.197" (5.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
