Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX97-30680FIXED IND 68UH 1.8A 200 MOHM SMD |
4,649 | - |
|
Datasheet | AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.8 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-30681FIXED IND 680UH 400MA 2.2OHM SMD |
4,593 | - |
|
Datasheet | AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 400 mA | - | Unshielded | 2.2Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|

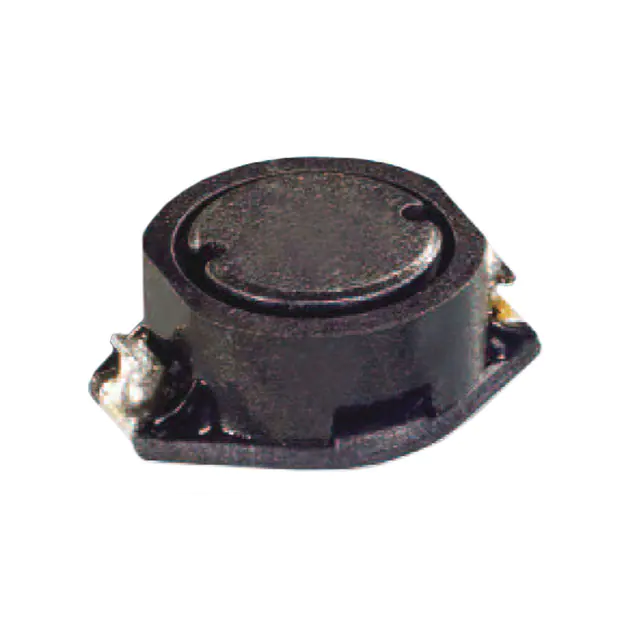

AX1005-102KFIXED IND 1MH 220MA 3.2 OHM SMD |
4,752 | - |
|
Datasheet | AX1005 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 220 mA | - | Shielded | 3.2Ohm Max | 70 @ 100kHz | 2MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.193" (4.90mm) |
|
AX97-40681FIXED IND 680UH 780MA 1 OHM SMD |
1,993 | - |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 780 mA | - | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40100FIXED IND 10UH 6.5A 20 MOHM SMD |
3,131 | - |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.5 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40101FIXED IND 100UH 2A 150 MOHM SMD |
4,674 | - |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 150mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40150FIXED IND 15UH 5.3A 30 MOHM SMD |
4,981 | - |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.3 A | - | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40220FIXED IND 22UH 4.4A 40 MOHM SMD |
1,881 | - |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.4 A | - | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40221FIXED IND 220UH 1.3A 330MOHM SMD |
1,465 | - |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | - | Unshielded | 330mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-40330FIXED IND 33UH 3.5A 60 MOHM SMD |
4,681 | - |
|
Datasheet | AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.5 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
