Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADL3225VT-100M-TL000FIXED IND 10UH 450MA 150MOHM SMD |
3,408 | - |
|
Datasheet | ADL-VT | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 450 mA | 450mA | Shielded | 150mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
IHLP2020BZER100M11FIXED IND 10UH 2.2A 182.8MOHM SM |
3,116 | - |
|
Datasheet | IHLP-2020BZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.2 A | 2A | Shielded | 182.8mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|

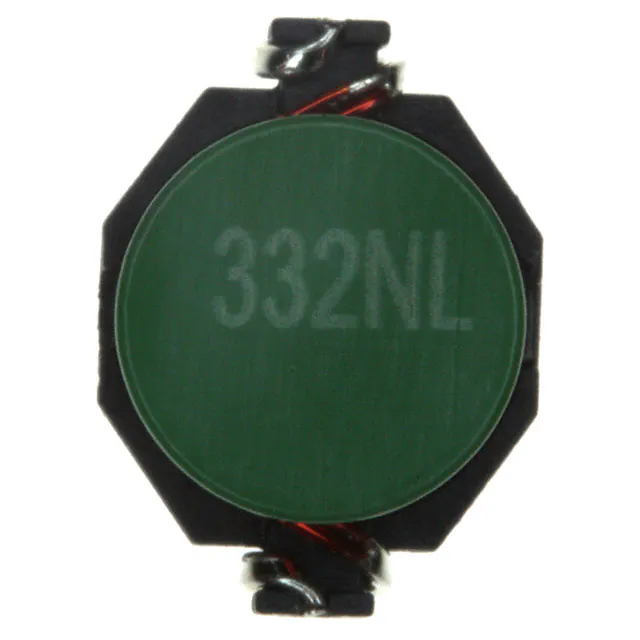

P0751.332NLTFIXED IND 3.3UH 5.4A 18 MOHM SMD |
3,036 | - |
|
Datasheet | P0751NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 5.4 A | 6.4A | Unshielded | 18mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.215" (5.46mm) |
|
CLF7045T-470M-DFIXED IND 47UH 1.2A 180 MOHM SMD |
2,010 | - |
|
Datasheet | CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.2 A | 1.3A | Shielded | 180mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
PA4342.103NLTFIXED IND 10UH 7.5A 30 MOHM SMD |
1,844 | - |
|
Datasheet | PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 7.5 A | 12A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
PA4342.223NLTFIXED IND 22UH 5A 74 MOHM SMD |
1,793 | - |
|
Datasheet | PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 5 A | 7A | Shielded | 74mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
B82472G6472M000FIXED IND 4.7UH 2.5A 30 MOHM SMD |
1,648 | - |
|
Datasheet | B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.5 A | 2A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
PA4342.151NLTFIXED IND 150NH 43A 0.6 MOHM SMD |
1,596 | - |
|
Datasheet | PA4342.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±30% | 43 A | 75A | Shielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.157" (4.00mm) |
|
|
B82472G6683M000FIXED IND 68UH 820MA 260MOHM SMD |
1,557 | - |
|
Datasheet | B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 820 mA | 680mA | Shielded | 260mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CLF7045T-6R8N-DFIXED IND 6.8UH 3A 35.1 MOHM SMD |
990 | - |
|
Datasheet | CLF-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3 A | 3.3A | Shielded | 35.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
DR127-4R7-RFIXED IND 4.7UH 8.25A 9.17 MOHM |
155 | - |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 8.25 A | 16.5A | Shielded | 9.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
IHLP3232CZER6R8M11FIXED IND 6.8UH 6.5A 37.8MOHM SM |
20,385 | - |
|
Datasheet | IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 6.5 A | 5A | Shielded | 37.8mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
74404052100FIXED IND 10UH 1.6A 109 MOHM SMD |
14,795 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | 1.6 A | 1.95A | Shielded | 109mOhm | - | 37MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
B82472G6224M000FIXED IND 220UH 430MA 880MOHM SM |
13,385 | - |
|
Datasheet | B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 430 mA | 360mA | Shielded | 880mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
FP1008R6-R150-RFIXED IND 150NH 74A 0.18MOHM SMD |
10,190 | - |
|
Datasheet | FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 74 A | 64A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
74479299210FIXED IND 1UH 3A 46 MOHM SMD |
8,884 | - |
|
Datasheet | WE-PMCI | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±30% | 3 A | 5.2A | Shielded | 46mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
74404084680FIXED IND 68UH 1.25A 196MOHM SMD |
7,610 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.25 A | 1.7A | Shielded | 196mOhm | - | 8.1MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8040 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
|
74404064221FIXED IND 220UH 660MA 850MOHM SM |
6,480 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 660 mA | 750mA | Shielded | 850mOhm | - | 3.97MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6045 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
74404054102FIXED IND 1MH 200MA 6 OHM SMD |
6,385 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 200 mA | 260mA | Shielded | 6Ohm | - | 1.9MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5040 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.157" (4.00mm) |
|
|
74404052101FIXED IND 100UH 550MA 1.09OHM SM |
5,890 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 550 mA | 600mA | Shielded | 1.09Ohm | - | 8.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
