Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP6767GZER560M11FIXED IND 56UH 7.2A 57.8MOHM SMD |
200 | - |
|
Datasheet | IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 56 µH | ±20% | 7.2 A | 4.2A | Shielded | 57.8mOhm Max | - | 2.9MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER4R7M01FIXED IND 4.7UH 25A 5.11MOHM SMD |
1,078 | - |
|
Datasheet | IHLP-6767GZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 25 A | 41A | Shielded | 5.11mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
IHLP6767GZER4R7M51FIXED IND 4.7UH 24A 5.23MOHM SMD |
506 | - |
|
Datasheet | IHLP-6767GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 24 A | 26A | Shielded | 5.23mOhm Max | - | 14MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHSM4825ER470LFIXED IND 47UH 1.07A 362MOHM SMD |
630 | - |
|
Datasheet | IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 1.07 A | 740mA | Unshielded | 362mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
IH15BQ500KFIXED IND 50UH 15A 20 MOHM TH |
162 | - |
|
Datasheet | IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 15 A | 10A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - |
|

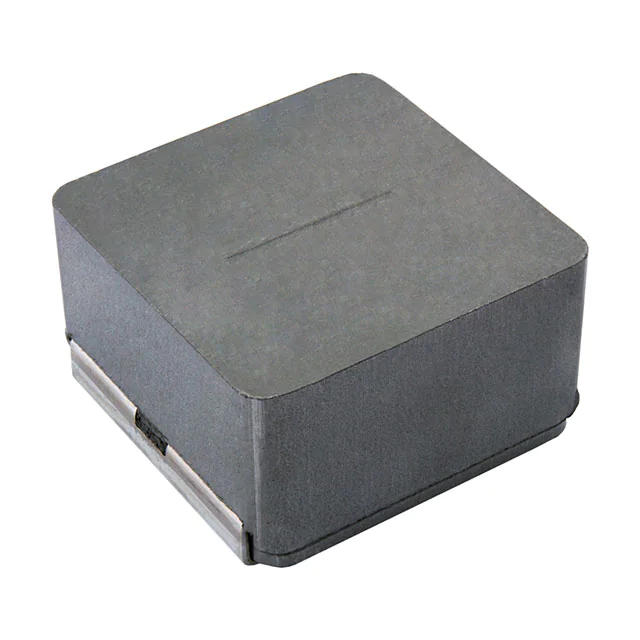

IHLP8787MZER101M51FIXED IND 100UH 9.1A 39.4MOHM SM |
276 | - |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 100 µH | ±20% | 9.1 A | 7A | Shielded | 39.4mOhm Max | - | 2.01MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHTH1125KZEBR47M5AFIXED IND 470NH 125A 0.3 MOHM TH |
1,043 | - |
|
Datasheet | IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 470 nH | ±20% | 125 A | 112A | Shielded | 0.3mOhm Max | - | 57.25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
|
IHLP8787MZER1R0M5AFIXED IND 1UH 69A 0.89 MOHM SMD |
311 | - |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 69 A | 71A | Shielded | 0.89mOhm Max | - | 25.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHDM1107BBEV120M30FG, IHDM-1107BB-30 12 20% |
300 | - |
|
Datasheet | IHDM-1107BB-30 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 12 µH | ±20% | 35 A | 61A | Unshielded | 2.6mOhm Max | - | 21MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHDM1107BBEV1R1M20FG, IHDM-1107BB-20 1.1 20% |
143 | - |
|
Datasheet | IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 1.1 µH | ±20% | 93 A | 301A | Unshielded | 0.41mOhm Max | - | 100MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
