Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "IHLP7575GZER3R3M5A")
|
IHLP7575GZER3R3M5AFIXED IND 3.3UH 36A 3.34 MOHM HI |
2,254 | - |
|
Datasheet | IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 36 A | 41A | Shielded | 3.34mOhm Max | - | 12.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
IHD1EB183LFIXED IND 18MH 80MA 40 OHM TH |
3,873 | - |
|
Datasheet | IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±15% | 80 mA | 60mA | Unshielded | 40Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | - |
|
|
IHLP7575GZER100M5AFIXED IND 10UH 18.7A 9.96 MOHM H |
4,759 | - |
|
Datasheet | IHLP-7575GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 18.7 A | 31.1A | Shielded | 9.96mOhm Max | - | 8.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
|
IHD1EB4R7LFIXED IND 4.7UH 3.4A 22 MOHM TH |
3,088 | - |
|
Datasheet | IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±15% | 3.4 A | 3.3A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.270" Dia x 0.700" L (6.86mm x 17.78mm) | - |
|
IH05BQ101KFIXED IND 100UH 7.5A 50 MOHM TH |
4,243 | - |
|
Datasheet | IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 7.5 A | 7A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.860" Dia x 1.375" L (21.84mm x 34.93mm) | - |
|

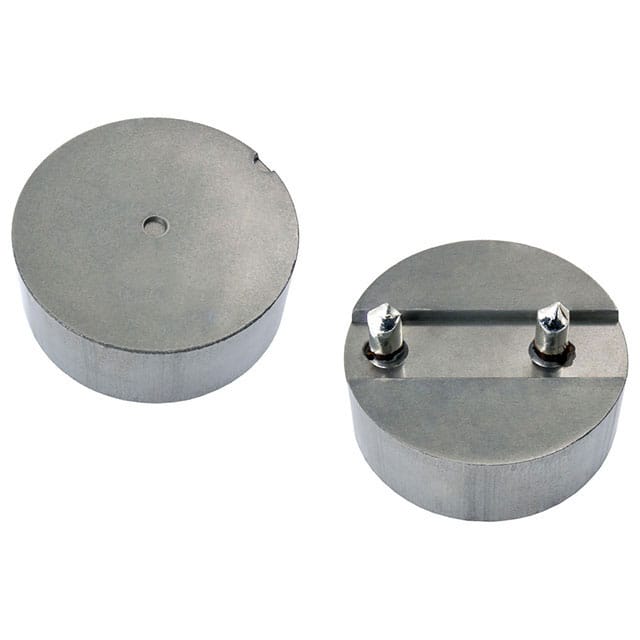

IHTH1125KZEB3R3M5AIHTH-1125KZ-5A 3.3 20% EB E2 |
1,791 | - |
|
Datasheet | IHTH-1125KZ-5A | Radial | Bulk | Active | - | Metal Composite | 3.3 µH | ±20% | 57 A | 62A | Shielded | 1.5mOhm Max | - | 15.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
IHLP8787MZER1R0M51FIXED IND 1UH 69A 890U OHM SMD |
4,416 | - |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 69 A | 71A | Shielded | 890µOhm Max | - | 25.7MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
IHLP8787MZER750M51FIXED IND 75UH 12A 32.35 MOHM SM |
1,244 | - |
|
Datasheet | IHLP-8787MZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 75 µH | ±20% | 12 A | 12A | Shielded | 32.35mOhm Max | - | 2.01MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHTH1125KZEB6R8M5AFIXED IND 6.8UH 44.5A 1.97 MOHM |
2,121 | - |
|
Datasheet | IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 6.8 µH | ±20% | 44.5 A | 44A | Shielded | 1.97mOhm Max | - | 9.35MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
|
IHTH1125KZEB220M5AFIXED IND 22UH 21A 6.83 MOHM TH |
3,032 | - |
|
Datasheet | IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 22 µH | ±20% | 21 A | 23A | Shielded | 6.83mOhm Max | - | 5.61MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
