Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLP6767GZER3R3M5AFIXED IND 3.3UH 32.2A 3.27 MOHM |
398 | - |
|
Datasheet | IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 32.2 A | 32A | Shielded | 3.27mOhm Max | - | 16.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
IHLP6767GZER150M8AFIXED IND 15UH 12.5A 16.96 MOHM |
234 | - |
|
Datasheet | IHLP-6767GZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 12.5 A | 13A | Shielded | 16.96mOhm Max | - | 8.55MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
.jpg "IHLP7575GZER1R0M51")
|

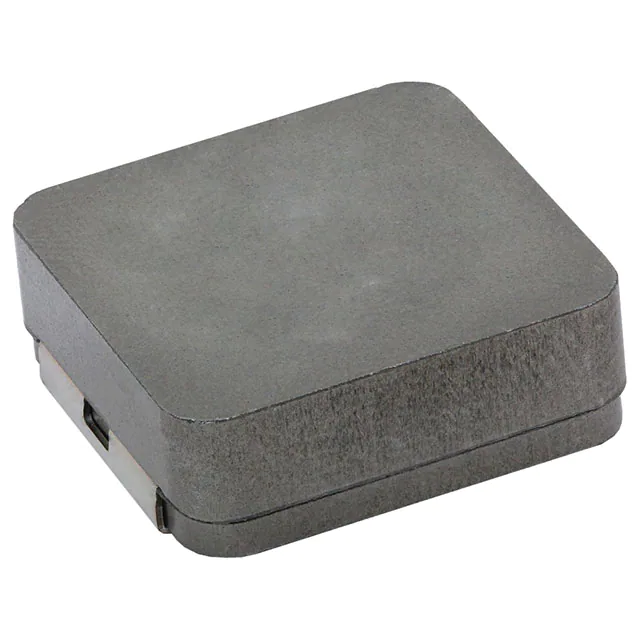

IHLP7575GZER1R0M51FIXED IND 1UH 55A 0.00134OHM SMD |
118 | - |
|
Datasheet | IHLP-7575GZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 55 A | 81A | Shielded | 1.34mOhm Max | - | 31.5MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.752" L x 0.750" W (19.10mm x 19.05mm) | 0.276" (7.00mm) |
|
IHSM3825ER101LFIXED IND 100UH 480MA 1.44OHM SM |
428 | - |
|
Datasheet | IHSM-3825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±15% | 480 mA | 420mA | Unshielded | 1.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.250" W (11.18mm x 6.35mm) | 0.225" (5.72mm) |
|
IH05BQ500KFIXED IND 50UH 8A 30 MOHM TH |
429 | - |
|
Datasheet | IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 8 A | 10A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.840" Dia x 1.125" L (21.34mm x 28.58mm) | - |
|
IHDF1300AEEH3R3K1AFIXED IND 3.3UH 59A 1.11MOHM TH |
283 | - |
|
Datasheet | IHDF-1300AE-1A | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 59 A | 112A | Unshielded | 1.11mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.173" W (33.00mm x 29.80mm) | 0.606" (15.40mm) |
|
IHDM1008BCEV1R2M30FIXED IND 1.2UH 80A 0.3 MOHM TH |
148 | - |
|
Datasheet | IHDM-1008BC-x0 | Vertical, 2 PC Pin | Tray | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 100 A | 205A | Unshielded | 0.3mOhm Max | - | 91MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | Vertical, 2 PC Pin | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
IHDM1107BBEVR47M20FG, IHDM-1107BB-20 .47 20% |
684 | - |
|
Datasheet | IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±20% | 128 A | 422A | Unshielded | 0.3mOhm Max | - | 217MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
|
|
IHLP8787MZERR47M5AFIXED IND 470NH 80A 0.67MOHM SMD |
544 | - |
|
Datasheet | IHLP-8787MZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 80 A | 100A | Shielded | 0.67mOhm Max | - | 47.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
IHTH1125KZEB2R2M5AFIXED IND 2.2UH 72A 0.77 MOHM TH |
142 | - |
|
Datasheet | IHTH-1125KZ-5A | Radial, Vertical Cylinder | Bulk | Active | - | Metal Composite | 2.2 µH | ±20% | 72 A | 64A | Shielded | 0.77mOhm Max | - | 17.25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
