Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IMC1812EB561JFIXED IND 560UH 50MA 30 OHM SMD |
1,534 | - |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB681JFIXED IND 680UH 50MA 30 OHM SMD |
3,294 | - |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±5% | 50 mA | - | Unshielded | 30Ohm Max | 30 @ 790kHz | 3MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
IMC1812EB821JFIXED IND 820UH 30MA 35 OHM SMD |
2,867 | - |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 30 mA | - | Unshielded | 35Ohm Max | 30 @ 790kHz | 2.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IM04BH1R0JFIXED IND 1UH 785MA 290 MOHM TH |
4,475 | - |
|
Datasheet | IM | Axial | - | Obsolete | Molded | Phenolic | 1 µH | ±5% | 785 mA | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.155" Dia x 0.375" L (3.94mm x 9.53mm) | - |
|
IHLP2020BZETR10N01FIXED IND 100NH 17A 3.9MOHM SMD |
2,570 | - |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 100 nH | ±30% | 17 A | 45A | Shielded | 3.9mOhm Max | - | 239MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|

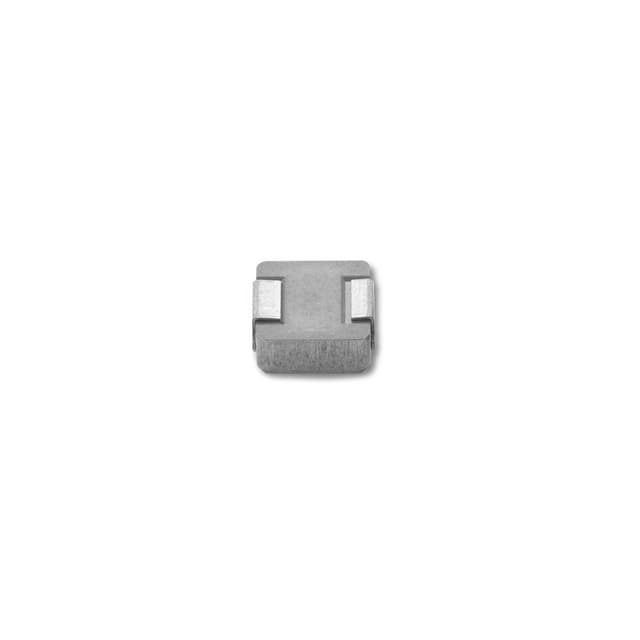

IHLP2020BZETR22M01FIXED IND 220NH 15A 5.2MOHM SMD |
1,597 | - |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 220 nH | ±20% | 15 A | 22A | Shielded | 5.2mOhm Max | - | 145MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZETR33M01FIXED IND 330NH 12A 8.2MOHM SMD |
3,276 | - |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 330 nH | ±20% | 12 A | 25A | Shielded | 8.2mOhm Max | - | 125MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZETR47M01FIXED IND 470NH 11.5A 9.4MOHM SM |
2,587 | - |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 470 nH | ±20% | 11.5 A | 21A | Shielded | 9.4mOhm Max | - | 98MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZETR68M01FIXED IND 680NH 10A 12.4MOHM SMD |
2,110 | - |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 680 nH | ±20% | 10 A | 15A | Shielded | 12.4mOhm Max | - | 77MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
|
|
IHLP2020BZET1R0M01FIXED IND 1UH 7A 20 MOHM SMD |
1,790 | - |
|
Datasheet | IHLP-2020BZ-01 | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | - | 1 µH | ±20% | 7 A | 16A | Shielded | 20mOhm Max | - | 62MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.079" (2.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
