Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLE2020CDER150M51IHLE-2020CD-51 15 20% ER E3 |
2,247 | - |
|
Datasheet | IHLE-2020CD-51 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 2.4 A | 2.6A | Shielded | 208mOhm Max | - | 14.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
IHLP3232CZER1R0M01FIXED IND 1UH 13.7A 8.35MOHM SMD |
1,295 | - |
|
Datasheet | IHLP-3232CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 13.7 A | 29A | Shielded | 8.35mOhm Max | - | 51MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
IHLP2020CZER1R0M8AFIXED IND 1UH 10.8A 12.1MOHM SMD |
1,070 | - |
|
Datasheet | IHLP-2020CZ-8A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 10.8 A | 8A | Shielded | 12.1mOhm Max | - | 60.7MHz | AEC-Q200 | -55°C ~ 180°C | 100 kHz | - | Surface Mount | - | 0.204" L x 0.204" W (5.18mm x 5.18mm) | 0.118" (3.00mm) |
|
IHLP3232DZER5R6M01FIXED IND 5.6UH 6.8A 35.5MOHM SM |
371 | - |
|
Datasheet | IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 6.8 A | 16.7A | Shielded | 35.5mOhm Max | - | 18MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER8R2M01FIXED IND 8.2UH 5.5A 50.8MOHM SM |
422 | - |
|
Datasheet | IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 5.5 A | 10A | Shielded | 50.8mOhm Max | - | 17MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
IHLP3232DZER1R0M51FIXED IND 1UH 19A 4.9 MOHM SMD |
1,398 | - |
|
Datasheet | IHLP-3232DZ-51 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 19 A | 16.2A | Shielded | 4.9mOhm Max | - | 45MHz | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.322" L x 0.322" W (8.18mm x 8.18mm) | 0.157" (4.00mm) |
|

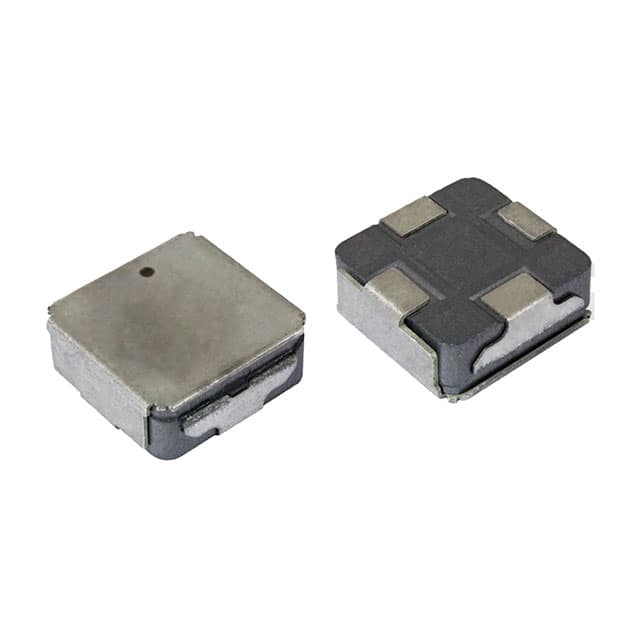

IHLE4040DDEW220M5AFIXED IND 22UH 4.1A 0.07544OHM |
323 | - |
|
Datasheet | IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 4.1 A | 6.4A | Shielded | 75.44mOhm Max | - | 8.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
|
IHLP3232CZER8R2M01FIXED IND 8.2UH 4.8A 59.3MOHM SM |
2,592 | - |
|
Datasheet | IHLP-3232CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 4.8 A | 9.5A | Shielded | 59.3mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
IHLP4040DZERR56M11FIXED IND 560NH 32A 1.8 MOHM SMD |
1,341 | - |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 32 A | 22A | Shielded | 1.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

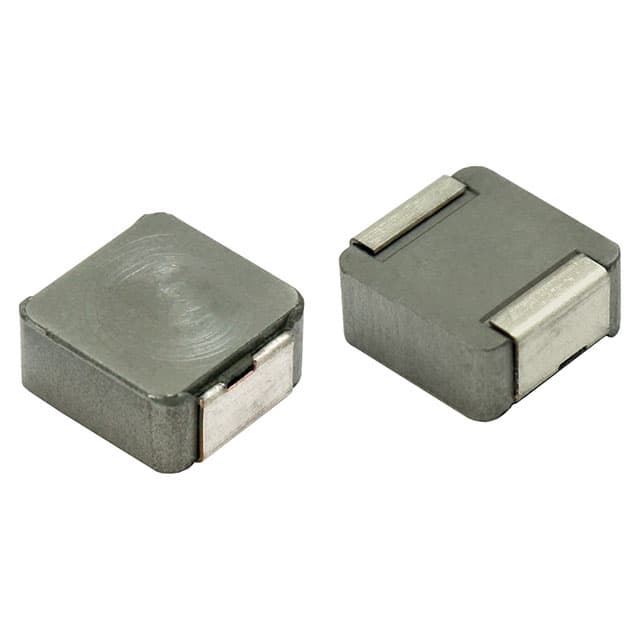

IHLP3232DZER1R0MA1IHLP-3232DZ-A1 1 20% ER E3 |
1,250 | - |
|
Datasheet | IHLP-3232DZ-A1 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 1 µH | ±20% | 18 A | 24A | Shielded | 5.78mOhm Max | - | 42MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
