Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHLE4040DDEW100M5AFIXED IND 10UH 6.5A 0.03306OHM |
386 | - |
|
Datasheet | IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 10 µH | ±20% | 6.5 A | 8.5A | Shielded | 33.06mOhm Max | - | 11.5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
IHLP5050CEERR68M01FIXED IND 680NH 28A 2.5 MOHM SMD |
1,717 | - |
|
Datasheet | IHLP-5050CE-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 680 nH | ±20% | 28 A | 49A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.508" W (13.20mm x 12.90mm) | 0.138" (3.50mm) |
|
IMC1812ER102KFIXED IND 1MH 30MA 40 OHM SMD |
1,500 | - |
|
Datasheet | IMC-1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 30 mA | - | Unshielded | 40Ohm Max | 30 @ 250kHz | 2.5MHz | - | -55°C ~ 125°C | 250 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
IHLP4040EDER1R0M5AFIXED IND 1UH 26.7A 2.25MOHM SMD |
1,202 | - |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 26.7 A | 17.61A | Shielded | 2.25mOhm Max | - | 39.85MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|
|
IHLP4040EDER8R2M5AFIXED IND 8.2UH 8.61A 22.36 MOHM |
956 | - |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 8.2 µH | ±20% | 8.61 A | 11.1A | Shielded | 22.36mOhm Max | - | 12.55MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
|

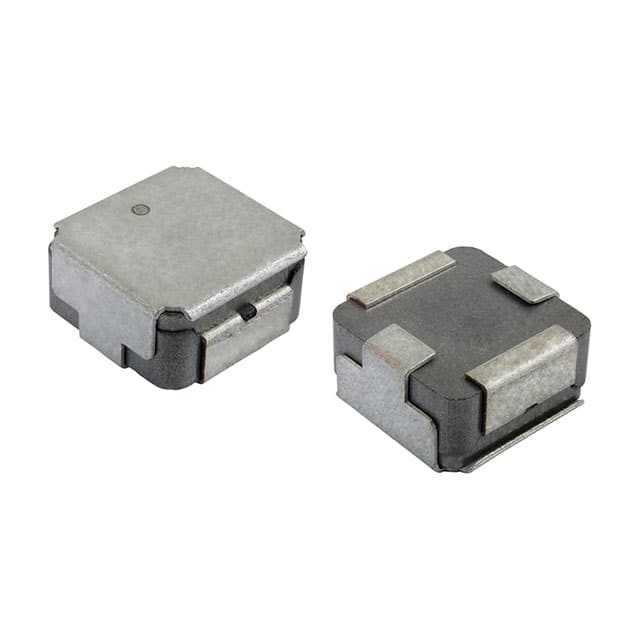

IHLE3232DDER330M5AIHLE-3232DD-5A 33 20% ER E3 |
901 | - |
|
Datasheet | IHLE-3232DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 33 µH | ±20% | 3.1 A | 3.2A | Shielded | 159.43mOhm Max | - | 6.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.350" L x 0.344" W (8.89mm x 8.74mm) | 0.174" (4.42mm) |
|
|
IHLE4040DDEW150M5AFIXED IND 15UH 5.1A 0.05029OHM |
526 | - |
|
Datasheet | IHLE-4040DDEW-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 5.1 A | 7.7A | Shielded | 50.29mOhm Max | - | 10.4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.430" L x 0.426" W (10.92mm x 10.82mm) | 0.174" (4.42mm) |
|
IHLP5050EZER4R7M5AFIXED IND 4.7UH 15.3A 10.1 MOHM |
167 | - |
|
Datasheet | IHLP-5050EZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 15.3 A | 17.8A | Shielded | 10.1mOhm Max | - | 15.1MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.508" W (13.46mm x 12.90mm) | 0.197" (5.00mm) |
|
|
IHLE3232DDER150M5AIHLE-3232DD-5A 15 20% ER E3 |
1,066 | - |
|
Datasheet | IHLE-3232DD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 15 µH | ±20% | 4.8 A | 3.6A | Shielded | 66.34mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.350" L x 0.344" W (8.89mm x 8.74mm) | 0.174" (4.42mm) |
|
IHLP4040EDER330M5AFIXED IND 33UH 4.4A 79.18MOHM SM |
104 | - |
|
Datasheet | IHLP-4040ED-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 33 µH | ±20% | 4.4 A | 4.4A | Shielded | 79.18mOhm Max | - | 6.07MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 4040 | 0.453" L x 0.406" W (11.50mm x 10.30mm) | 0.213" (5.40mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
