Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744383130047FIXED IND 470NH 1.7A 101MOHM SMD |
1,813 | - |
|
Datasheet | WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 470 nH | ±30% | 1.7 A | 4.5A | Shielded | 101mOhm Max | - | 200MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74438313010FIXED IND 1UH 1.4A 159 MOHM SMD |
1,729 | - |
|
Datasheet | WE-MAPI | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±30% | 1.4 A | 3.4A | Shielded | 159mOhm Max | - | 111MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1610 | 0.063" L x 0.063" W (1.60mm x 1.60mm) | 0.039" (1.00mm) |
|

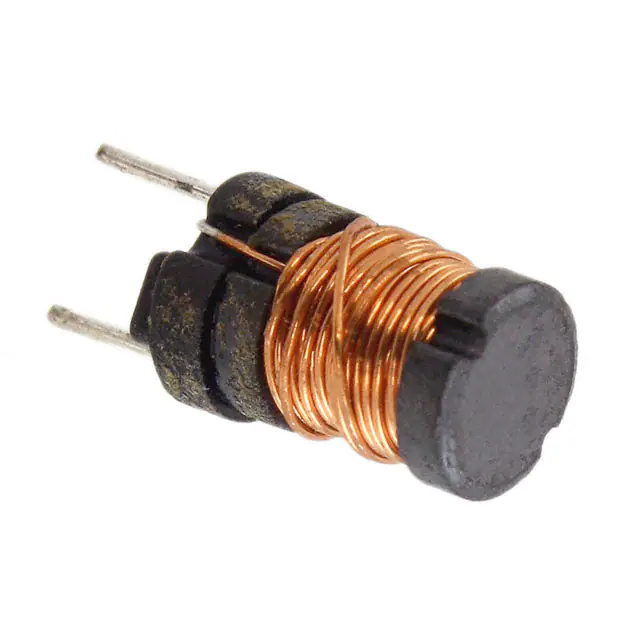

744743101FIXED IND 100UH 1.5A 300 MOHM TH |
240 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 1.5 A | 1.6A | Unshielded | 300mOhm Max | - | 5.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|
744743221FIXED IND 220UH 960MA 550MOHM TH |
124 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 960 mA | 1.2A | Unshielded | 550mOhm Max | - | 3.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
|
7447452331FIXED IND 330UH 1.1A 470 MOHM TH |
122 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.1 A | 850mA | Unshielded | 470mOhm Max | - | 2.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
|
7447452391FIXED IND 390UH 1A 520 MOHM TH |
107 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1 A | 800mA | Unshielded | 520mOhm Max | - | 2.2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.374" Dia (9.50mm) | 0.531" (13.50mm) |
|
744065220FIXED IND 22UH 1.8A 135 MOHM SMD |
3,051 | - |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.8 A | 1.9A | Shielded | 135mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065680FIXED IND 68UH 1.2A 300 MOHM SMD |
2,849 | - |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.2 A | 1.05A | Shielded | 300mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065001FIXED IND 1UH 8A 6.5 MOHM SMD |
2,157 | - |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8 A | 9.5A | Shielded | 6.5mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
|
|
744065820FIXED IND 82UH 1.1A 420 MOHM SMD |
1,025 | - |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±30% | 1.1 A | 1A | Shielded | 420mOhm Max | - | 8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.122" (3.10mm) |
