Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447715006FIXED IND 6.8UH 4.3A 25 MOHM SMD |
1,304 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 4.3 A | 4.7A | Shielded | 25mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
744775122FIXED IND 22UH 1.76A 110MOHM SMD |
1,196 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.76 A | 1.81A | Unshielded | 110mOhm Max | - | 17.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
7447714015FIXED IND 1.5UH 10A 6.6 MOHM SMD |
1,161 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 10 A | 12.5A | Shielded | 6.6mOhm Max | - | 69MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
744775222FIXED IND 220UH 510MA 960MOHM SM |
1,109 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 510 mA | 560mA | Unshielded | 960mOhm Max | - | 5.4MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
|

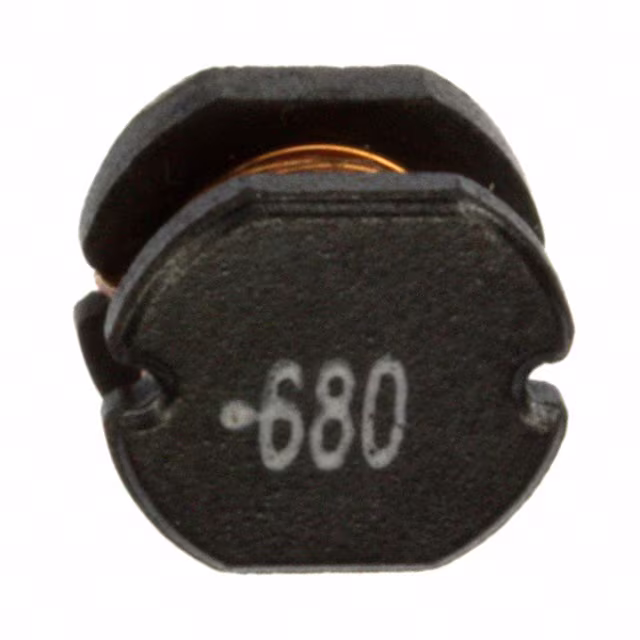

744775168FIXED IND 68UH 990MA 280MOHM SMD |
1,038 | - |
|
Datasheet | WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 990 mA | 1.05A | Unshielded | 280mOhm Max | - | 9.7MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
784775215FIXED IND 150UH 600MA 640MOHM SM |
1,000 | - |
|
Datasheet | WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 600 mA | 710mA | Unshielded | 640mOhm Max | - | 6MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 7850 | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744771215FIXED IND 150UH 1.21A 230MOHM SM |
979 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.21 A | 1.43A | Shielded | 230mOhm Max | - | 4.4MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
74477130FIXED IND 1MH 430MA 1.53 OHM SMD |
904 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 430 mA | 500mA | Shielded | 1.53Ohm Max | - | 1.9MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
|
7447715001FIXED IND 1.8UH 7.6A 9.5MOHM SMD |
874 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±30% | 7.6 A | 10.2A | Shielded | 9.5mOhm Max | - | 76MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
7447715120FIXED IND 12UH 3.5A 38 MOHM SMD |
872 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 3.5 A | 3.6A | Shielded | 38mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
