Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404043022AFIXED IND 2.2UH 3.83A 23MOHM SMD |
19,963 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.83 A | 2.28A | Shielded | 23mOhm | - | 104MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043220AFIXED IND 22UH 1.11A 200MOHM SMD |
10,824 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.11 A | 700mA | Shielded | 200mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043033AFIXED IND 3.3UH 3.23A 33MOHM SMD |
10,585 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.23 A | 1.75A | Shielded | 33mOhm | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043470AFIXED IND 47UH 710MA 492MOHM SMD |
7,105 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 710 mA | 450mA | Shielded | 492mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043047AFIXED IND 4.7UH 2.3A 46MOHM SMD |
3,354 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.3 A | 1.43A | Shielded | 46mOhm | - | 61MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
74405024022FIXED IND 2.2UH 1.6A 120MOHM SMD |
3,753 | - |
|
Datasheet | WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.6 A | 3A | Shielded | 120mOhm Max | - | 46MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74405024100FIXED IND 10UH 800MA 522MOHM SMD |
3,162 | - |
|
Datasheet | WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 800 mA | 1.2A | Shielded | 522mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

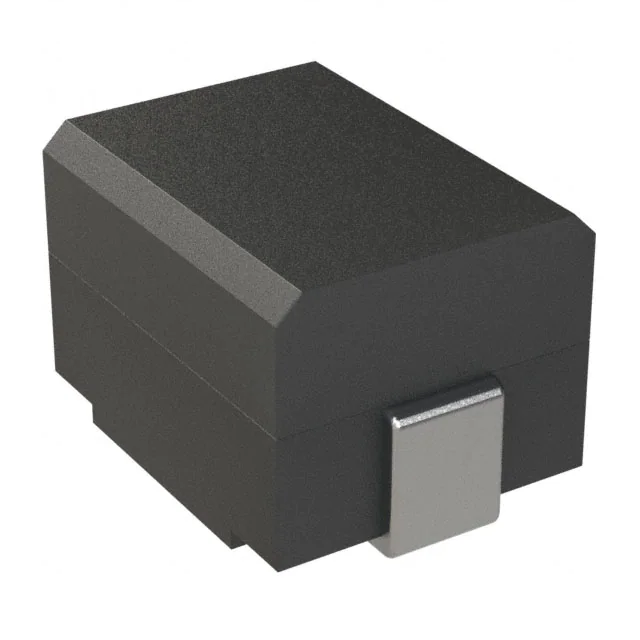

74476401FIXED IND 1UH 400MA 700 MOHM SMD |
6,809 | - |
|
Datasheet | WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 400 mA | - | Unshielded | 700mOhm Max | 30 @ 7.96MHz | 340MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
74476410FIXED IND 10UH 150MA 2.1 OHM SMD |
6,351 | - |
|
Datasheet | WE-GF | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 150 mA | - | Unshielded | 2.1Ohm Max | 30 @ 2.52MHz | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 3225 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
744032220FIXED IND 22UH 220MA 1.3 OHM SMD |
4,644 | - |
|
Datasheet | WE-LQ | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 220 mA | 600mA | Unshielded | 1.3Ohm Max | 35 @ 1MHz | 14MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.091" (2.30mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
