Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404042470FIXED IND 47UH 600MA 620MOHM SMD |
4,641 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 600 mA | 700mA | Shielded | 620mOhm | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4018 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
74404086103FIXED IND 10MH 130MA 22.8OHM SMD |
405 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±20% | 130 mA | 200mA | Shielded | 22.8Ohm | - | 411kHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
744732100FIXED IND 10UH 4A 33 MOHM TH |
4,754 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4 A | 4A | Unshielded | 33mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
74404086221WE-LQS SMT SEMI-SHIELDED POWER I |
3,694 | - |
|
Datasheet | WE-LQS | 3131 (8080 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 950 mA | 1.44A | Shielded | 555mOhm | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3131 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
|
744787068FIXED IND 6.8UH 3A 33 MOHM SMD |
2,546 | - |
|
Datasheet | WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3 A | 3A | Shielded | 33mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
7447231102FIXED IND 1MH 800MA 860 MOHM TH |
1,031 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 1 mH | ±5% | 800 mA | 1A | Unshielded | 860mOhm Max | - | 1.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
744710205FIXED IND 2UH 5A 6.5 MOHM TH |
4,843 | - |
|
Datasheet | WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2 µH | ±25% | 5 A | - | Unshielded | 6.5mOhm | - | 100MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.232" Dia x 0.551" L (5.90mm x 14.00mm) | - |
|
7447054FIXED IND 10UH 2A 20 MOHM TH |
2,955 | - |
|
Datasheet | WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 10 µH | ±20% | 2 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.413" Dia x 0.217" W (10.50mm x 5.50mm) | - |
|

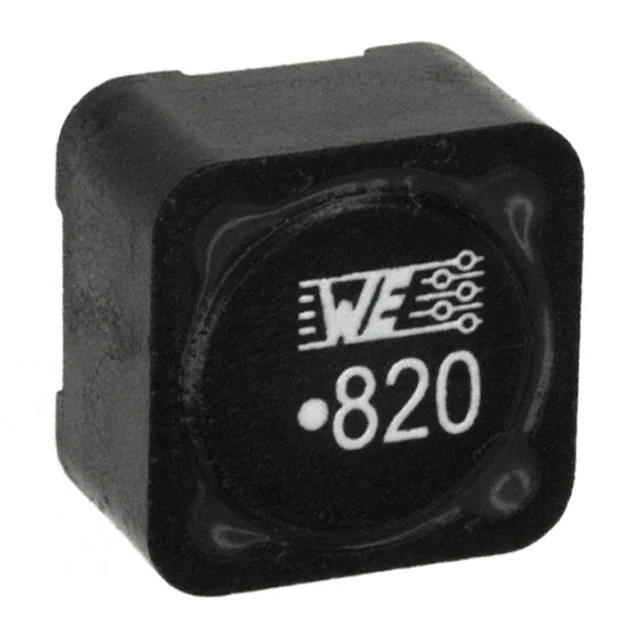

744770182FIXED IND 82UH 2.25A 160MOHM SMD |
3,709 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 2.25 A | 2.45A | Shielded | 160mOhm Max | - | 3.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

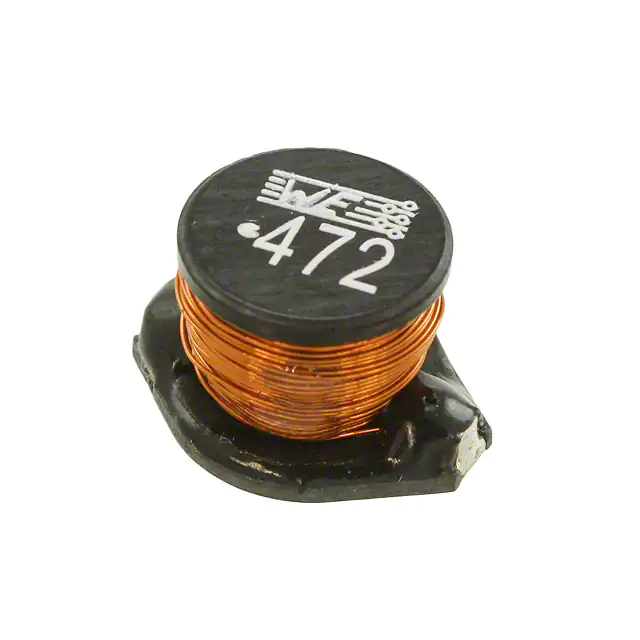

74458304FIXED IND 4.7MH 400MA 4.8OHM SMD |
3,997 | - |
|
Datasheet | WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 400 mA | 900mA | Unshielded | 4.8Ohm Max | - | 500kHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.472" (12.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
