Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7687480471WE-TI HV RADIAL LEADED WIRE WOUN |
4,802 | - |
|
Datasheet | WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 470 µH | ±10% | 1 A | 1.3A | Unshielded | 540mOhm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
|
7687480222WE-TI HV RADIAL LEADED WIRE WOUN |
3,652 | - |
|
Datasheet | WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 2.2 mH | ±5% | 500 mA | 580mA | Unshielded | 2.5Ohm Max | - | 820kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|

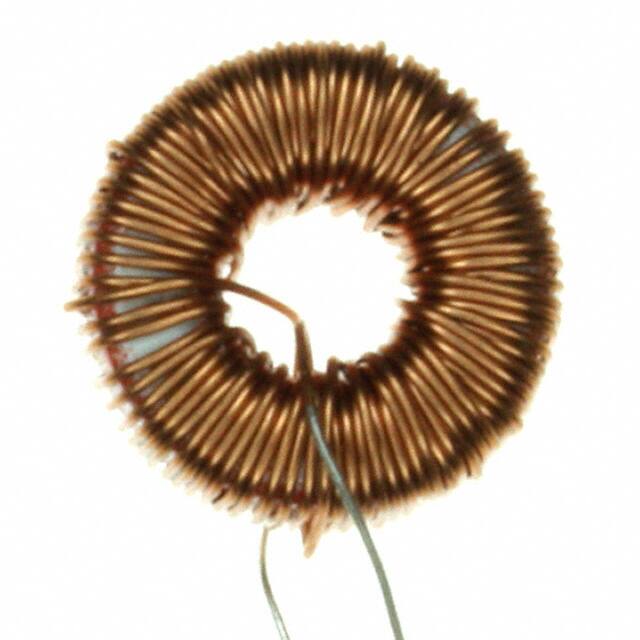

7447037FIXED IND 360UH 400MA 450MOHM TH |
1,602 | - |
|
Datasheet | WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 360 µH | ±20% | 400 mA | - | Unshielded | 450mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.531" Dia x 0.236" W (13.50mm x 6.00mm) | - |
|
7447231472FIXED IND 4.7MH 360MA 4 OHM TH |
2,634 | - |
|
Datasheet | WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 4.7 mH | ±5% | 360 mA | 470mA | Unshielded | 4Ohm Max | - | 480kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
744750230068FIXED IND 6.8UH 5.7A 16 MOHM TH |
1,736 | - |
|
Datasheet | WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 5.7 A | 8.1A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 8010 | 0.346" Dia (8.80mm) | 0.433" (11.00mm) |
|
744340300055FIXED IND 55NH 27A 0.00027OHM SM |
2,889 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 55 nH | ±15% | 27 A | 25.2A | Shielded | 0.27mOhm | - | 123MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.189" L x 0.122" W (4.80mm x 3.10mm) | 0.118" (3.00mm) |
|
7847121060WE-RCIT ROD CORE INDUCTOR THT 6. |
2,186 | - |
|
Datasheet | WE-RCIT | Radial, Horizontal Cylinder (Open) | Tray | Active | Wirewound | - | 6 µH | ±25% | 6.4 A | 15A | Unshielded | 11.7mOhm | - | 95MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.272" Dia x 0.807" L (6.90mm x 20.50mm) | - |
|
|
744750340150FIXED IND 15UH 5.6A 20 MOHM TH |
1,723 | - |
|
Datasheet | WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.6 A | 8.5A | Shielded | 20mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.512" (13.00mm) |
|
|
744750420100FIXED IND 10UH 6.2A 15.5MOHM TH |
4,080 | - |
|
Datasheet | WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.2 A | 9.6A | Shielded | 15.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | 1280 | 0.504" Dia (12.80mm) | 0.354" (9.00mm) |
|
7447713033FIXED IND 3.3UH 4.6A 24 MOHM SMD |
1,278 | - |
|
Datasheet | WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.6 A | 7.2A | Shielded | 24mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.118" (3.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
