Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447471682FIXED IND 6.8MH 240MA 10 OHM TH |
2,343 | - |
|
Datasheet | WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±10% | 240 mA | 180mA | Shielded | 10Ohm Max | - | 540kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
744104FIXED IND 167UH 1.35A 400MOHM TH |
4,345 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 167 µH | ±20% | 1.35 A | 720mA | Unshielded | 400mOhm Max | - | 4.1MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.689" Dia x 0.315" W (17.50mm x 8.00mm) | - |
|
74458215FIXED IND 150UH 1.5A 250MOHM SMD |
3,686 | - |
|
Datasheet | WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.5 A | 2.7A | Unshielded | 250mOhm Max | - | 4.6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|

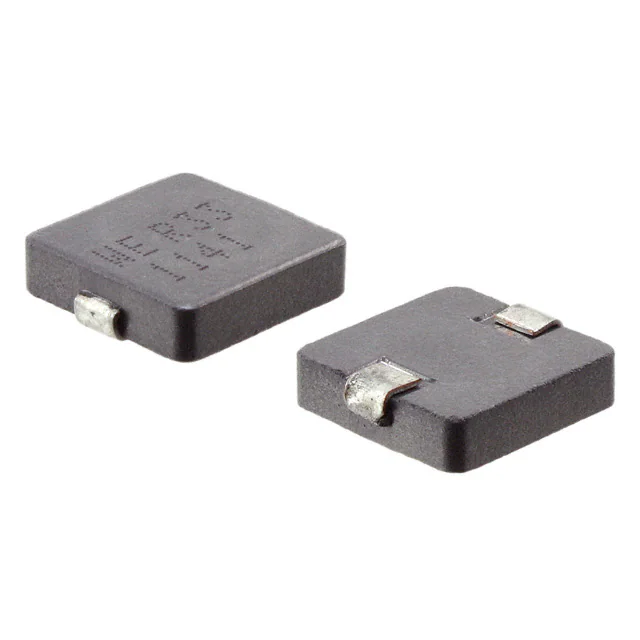

744373770056FIXED IND 560NH 18.5A 0.0017OHM |
3,421 | - |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 560 nH | ±20% | 18.5 A | 42.8A | Shielded | 1.7mOhm Max | - | 59MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
744373770022FIXED IND 220NH 25A 0.0009OHM SM |
4,500 | - |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 220 nH | ±20% | 25 A | 57.4A | Shielded | 0.9mOhm Max | - | 130MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
744116FIXED IND 345UH 2.1A 200 MOHM TH |
1,515 | - |
|
Datasheet | WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 345 µH | ±20% | 2.1 A | 500mA | Unshielded | 200mOhm Max | - | 1.8MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.728" Dia x 0.374" W (18.50mm x 9.50mm) | - |
|
74459222FIXED IND 220UH 1.2A 0.47OHM SMD |
4,496 | - |
|
Datasheet | WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 220 µH | ±20% | 1.2 A | 1.9A | Shielded | 470mOhm Max | - | 3.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|
|
78433391500WE-CHSA PERFORMANCE SMD HIGH CUR |
4,771 | - |
|
Datasheet | WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 15 µH | ±20% | 4.3 A | 11.3A | Shielded | 60.9mOhm Max | - | 20MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
7847132060WE-RCIT ROD CORE INDUCTOR THT 6. |
4,961 | - |
|
Datasheet | WE-RCIT | Radial, Horizontal Cylinder (Open) | Tray | Active | Wirewound | - | 6 µH | ±25% | 15 A | 45A | Unshielded | 3.5mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) | - |
|
|
78433290360WE-CHSA PERFORMANCE SMD HIGH CUR |
4,420 | - |
|
Datasheet | WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 3.6 µH | ±20% | 12.2 A | 20.6A | Shielded | 8.2mOhm Max | - | 48MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
