Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404041101FIXED IND 100UH 430MA 1.697 OHM |
445 | - |
|
Datasheet | WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 430 mA | 300mA | Shielded | 1.697Ohm | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
1.2mm.jpg "74438334010")
|
74438334010FIXED IND 1UH 2.75A 50.5MOHM SMD |
272 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 2.75 A | 6.6A | Shielded | 50.5mOhm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3012 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404024470WE-LQS SMT SEMI-SHIELDED POWER I |
3,622 | - |
|
Datasheet | WE-LQS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 47 µH | ±20% | 0.33 A | 350mA | Shielded | 1.65Ohm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
74404032101WE-LQS SMT SEMI-SHIELDED POWER I |
1,709 | - |
|
Datasheet | WE-LQS | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 0.3 A | 260mA | Shielded | 1.9Ohm | - | 7.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
744912147FIXED IND 47NH 3A 5.6 MOHM SMD |
2,002 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 47 nH | ±5% | 3 A | - | Unshielded | 5.6mOhm Max | 100 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
744912210FIXED IND 100NH 1.7A 12.3MOHM SM |
1,203 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 100 nH | ±5% | 1.7 A | - | Unshielded | 12.3mOhm Max | 100 @ 150MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
744912133FIXED IND 33NH 3A 4.8 MOHM SMD |
860 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 33 nH | ±5% | 3 A | - | Unshielded | 4.8mOhm Max | 100 @ 150MHz | 2.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
744912139FIXED IND 39NH 3A 4.4 MOHM SMD |
610 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 39 nH | ±5% | 3 A | - | Unshielded | 4.4mOhm Max | 100 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|

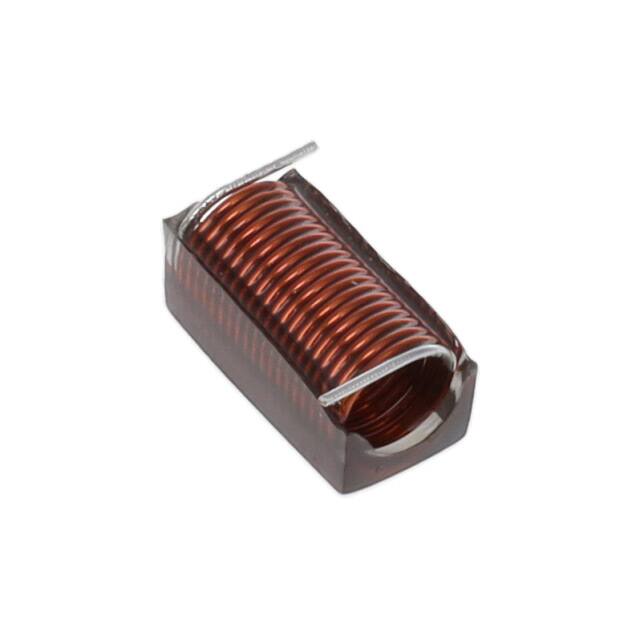

744918254FIXED IND 538NH 2A 90 MOHM SMD |
601 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 538 nH | ±5% | 2 A | - | Unshielded | 90mOhm Max | 100 @ 50MHz | 490MHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 5910 | 0.415" L x 0.250" W (10.55mm x 6.35mm) | 0.232" (5.90mm) |
|
|
744912156FIXED IND 56NH 3A 6.2 MOHM SMD |
454 | - |
|
Datasheet | WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 56 nH | ±5% | 3 A | - | Unshielded | 6.2mOhm Max | 100 @ 150MHz | 1.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 4248 | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
