Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437324022FIXED IND 2.2UH 3.25A 0.061OHM |
1,413 | - |
|
Datasheet | WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 3.25 A | 8.4A | Shielded | 61mOhm Max | - | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
7447779147FIXED IND 47UH 1.03A 260MOHM SMD |
7,548 | - |
|
Datasheet | WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.03 A | 1.1A | Shielded | 260mOhm Max | - | 10.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
7447779006FIXED IND 6.8UH 2.91A 35MOHM SMD |
3,523 | - |
|
Datasheet | WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.91 A | 3.3A | Shielded | 35mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 7345 | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
744309033FIXED IND 330NH 47.5A 0.000165OH |
373 | - |
|
Datasheet | WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 330 nH | ±20% | 47.5 A | 65.7A | Shielded | 0.165mOhm | - | 158MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1390 | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.374" (9.50mm) |
|
7443330330FIXED IND 3.3UH 14A 7.15MOHM SMD |
9,101 | - |
|
Datasheet | WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 14 A | 15.5A | Shielded | 7.15mOhm Max | - | 51MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

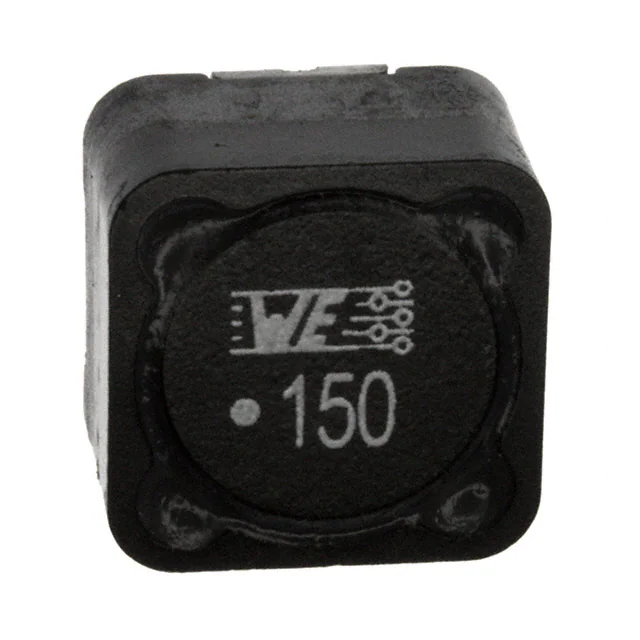

744770115FIXED IND 15UH 5A 27 MOHM SMD |
7,878 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5 A | 6A | Shielded | 27mOhm Max | - | 14.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330470FIXED IND 4.7UH 13A 9.9 MOHM SMD |
6,681 | - |
|
Datasheet | WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 13 A | 15A | Shielded | 9.9mOhm Max | - | 49MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

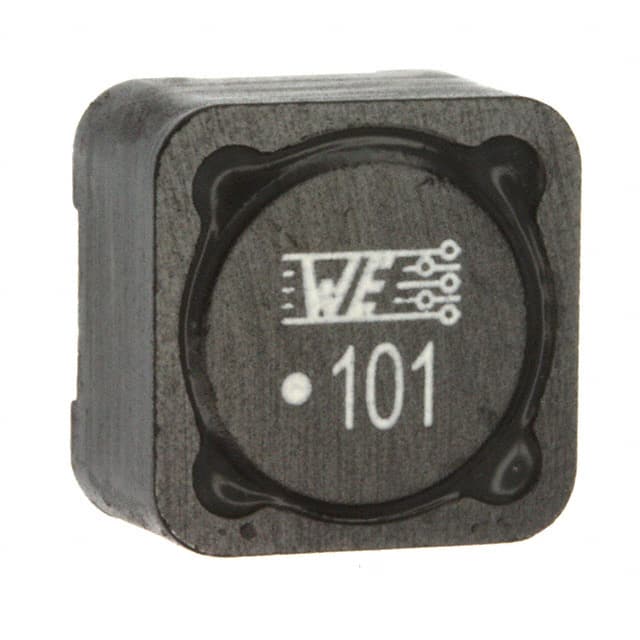

74477020FIXED IND 100UH 2.2A 220MOHM SMD |
2,483 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.2 A | 2.4A | Shielded | 220mOhm Max | - | 5.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

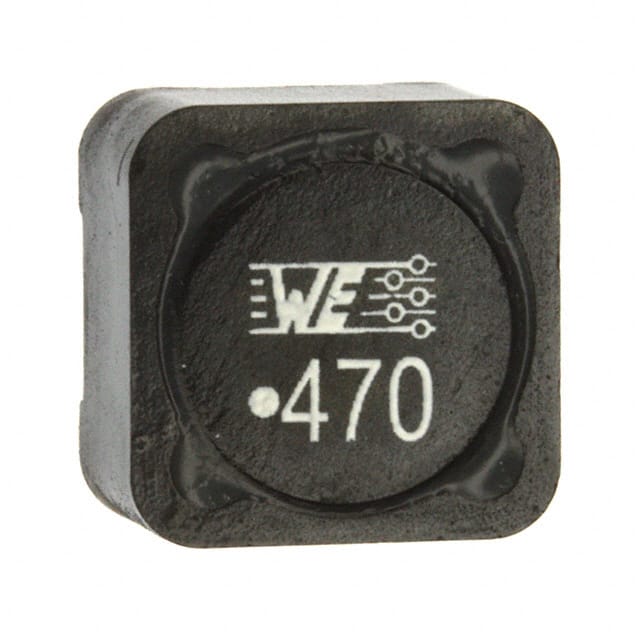

744770147FIXED IND 47UH 2.7A 100 MOHM SMD |
932 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 2.7 A | 3A | Shielded | 100mOhm Max | - | 7.9MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

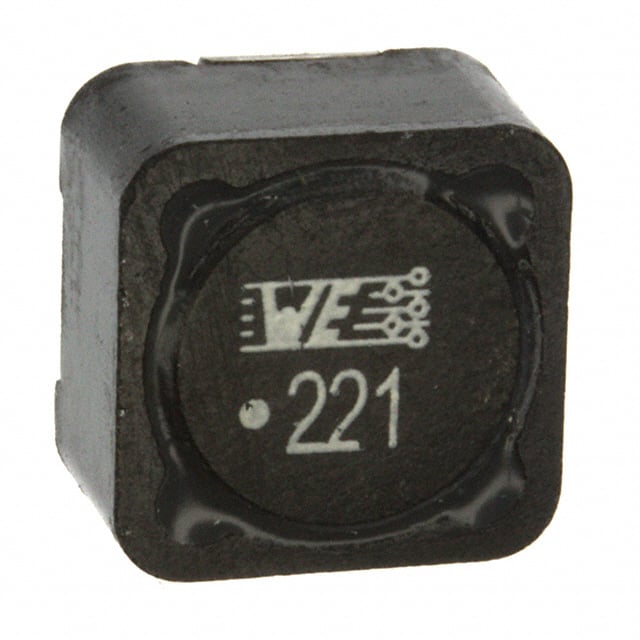

744770222FIXED IND 220UH 1.3A 390MOHM SMD |
294 | - |
|
Datasheet | WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | 1.49A | Shielded | 390mOhm Max | - | 3.8MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
