Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744043470FIXED IND 47UH 750MA 280MOHM SMD |
1,148 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 750 mA | 500mA | Shielded | 280mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
744043220FIXED IND 22UH 925MA 185MOHM SMD |
1,020 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 925 mA | 700mA | Shielded | 185mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
744031100FIXED IND 10UH 740MA 205MOHM SMD |
994 | - |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 740 mA | 560mA | Shielded | 205mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3816 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
744031002FIXED IND 2.5UH 1.45A 58MOHM SMD |
949 | - |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 1.45 A | 1.25A | Shielded | 58mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3816 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
|
744031006FIXED IND 6.8UH 850MA 156MOHM SM |
919 | - |
|
Datasheet | WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 850 mA | 750mA | Shielded | 156mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3816 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
IHLP4040DZER330M11FIXED IND 33UH 4.4A 94.5MOHM SMD |
915 | - |
|
Datasheet | IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 4.4 A | 4A | Shielded | 94.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
7440520039FIXED IND 3.9UH 2A 55 MOHM SMD |
909 | - |
|
Datasheet | WE-TPC | 2323 (5858 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 2 A | 2.1A | Shielded | 55mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.228" W (5.80mm x 5.80mm) | 0.079" (2.00mm) |
|
|
744043150FIXED IND 15UH 1.03A 150MOHM SMD |
381 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 1.03 A | 750mA | Shielded | 150mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
744043221FIXED IND 220UH 340MA 1.25OHM SM |
270 | - |
|
Datasheet | WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 340 mA | 200mA | Shielded | 1.25Ohm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
SLF12575T-330M3R2-PFFIXED IND 33UH 3.4A 47.4MOHM SMD |
12,589 | - |
|
Datasheet | SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 3.4 A | 3.2A | Shielded | 47.4mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
B82476A1103M000FIXED IND 10UH 3.9A 27 MOHM SMD |
8,233 | - |
|
Datasheet | B82476A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.9 A | 3.8A | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
74408063101WE-HEPC SMT SHIELDED TINY POWER |
2,944 | - |
|
Datasheet | WE-HEPC | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 500 mA | 800mA | Shielded | 850mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 6030 | 0.232" L x 0.232" W (5.90mm x 5.90mm) | 0.116" (2.94mm) |
|
|
IHLP4040DZER1R5M01FIXED IND 1.5UH 15A 5.8 MOHM SMD |
1,744 | - |
|
Datasheet | IHLP-4040DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 15 A | 27.5A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|

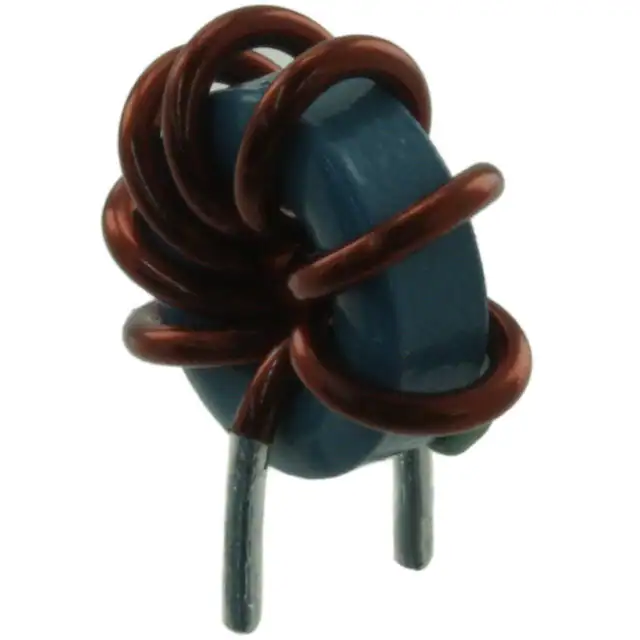

PA0489LNLFIXED IND 2.24UH 19A 2.7 MOHM TH |
1,455 | - |
|
Datasheet | Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 2.24 µH | ±20% | 19 A | - | Unshielded | 2.7mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.626" Dia x 0.346" W (15.90mm x 8.80mm) | - |
|
ETQ-P5M330YFCFIXED IND 33UH 5A 75.4 MOHM SMD |
578 | - |
|
Datasheet | PCC-M1054M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 33 µH | ±20% | 5 A | 7.6A | Shielded | 75.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.213" (5.40mm) |
|
|
ETQ-P5M3R3YGCFIXED IND 3.3UH 14.7A 7.81 MOHM |
559 | - |
|
Datasheet | PCC-M1050M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 14.7 A | 23.4A | Shielded | 7.81mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.197" (5.00mm) |
|
74438336047FIXED IND 4.7UH 1.9A 158MOHM SMD |
10,483 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 1.9 A | 3.9A | Shielded | 158mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3020 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
74438336033FIXED IND 3.3UH 2.2A 114MOHM SMD |
7,291 | - |
|
Datasheet | WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 2.2 A | 4.25A | Shielded | 114mOhm Max | - | 39MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3020 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
IHLP4040DZER680M5AIHLP-4040DZ-5A 68 20% ER E3 |
5,944 | - |
|
Datasheet | IHLP-4040DZ-5A | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 68 µH | ±20% | 2.4 A | 3.5A | Shielded | 252mOhm Max | - | 4.02MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
IHLE2020CDER4R7M5AIHLE-2020CD-5A 4.7 20% ER E3 |
5,814 | - |
|
Datasheet | IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 4.1 A | 6A | Shielded | 78.3mOhm Max | - | 23.8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
Fixed Inductors FAQ
What Fixed Inductors components can I source from EGOO?
You can browse available Fixed Inductors product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Fixed Inductors parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
