Fixed Inductors
Browse available Fixed Inductors components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH104RNP-101NCFIXED IND 100UH 1.25A 304MOHM SM |
2,550 | - |
|
Datasheet | CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±30% | 1.25 A | 1.35A | Shielded | 304mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
IHLM2525CZER1R0M01FIXED IND 1UH 11A 10 MOHM SMD |
1,933 | - |
|
Datasheet | IHLM-2525CZ-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 11 A | 22A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.270" L x 0.255" W (6.86mm x 6.47mm) | 0.118" (3.00mm) |
|
SPM7054VC-470M-DFIXED IND 47UH 2.6A 0.186OHM SMD |
1,914 | - |
|
Datasheet | SPM-VC-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 2.6 A | 5.3A | Shielded | 186mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
ASPIAIG-F6050-4R7M-TFIXED IND 4.7UH 8.5A 18.4MOHM SM |
1,820 | - |
|
Datasheet | ASPIAIG-F | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 8.5 A | 8A | Shielded | 18.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 6050 | 0.283" L x 0.272" W (7.20mm x 6.90mm) | 0.189" (4.80mm) |
|
P0250.104NLTFIXED IND 100UH 1.8A 190MOHM SMD |
1,520 | - |
|
Datasheet | P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±15% | 1.8 A | 3A | Unshielded | 190mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
DRA74-3R3-RFIXED IND 3.3UH 4.16A 16MOHM SMD |
13,868 | - |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 4.16 A | 5.41A | Shielded | 16mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
B82462G4102M000FIXED IND 1UH 3.4A 16 MOHM SMD |
5,622 | - |
|
Datasheet | B82462G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3.4 A | 4.4A | Shielded | 16mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.248" W (6.30mm x 6.30mm) | 0.118" (3.00mm) |
|
FP1007R3-R12-RFIXED IND 115NH 61A 0.29MOHM SMD |
4,108 | - |
|
Datasheet | FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 115 nH | ±10% | 61 A | 94A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|
|
CDRH104RNP-2R5NCFIXED IND 2.5UH 6.1A 10.5MOHM SM |
2,417 | - |
|
Datasheet | CDRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.5 µH | ±30% | 6.1 A | 7.5A | Shielded | 10.5mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.157" (4.00mm) |
|
|
P0250.333NLTFIXED IND 33UH 3A 66 MOHM SMD |
2,228 | - |
|
Datasheet | P0250NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±15% | 3 A | 5.5A | Unshielded | 66mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
|
SRP5050FA-150M1IND,6X5.7X4.8MM,15UH20%,4A,SHD |
1,285 | - |
|
Datasheet | SRP5050FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 4 A | 5.5A | Shielded | 66mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|
IHLE2525CDER220M5AIHLE-2525CD-5A 22 20% ER E3 |
1,215 | - |
|
Datasheet | IHLE-2525CD-5A | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | - | Metal Composite | 22 µH | ±20% | 2.8 A | 2.2A | Shielded | 174mOhm Max | - | 8.3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | Nonstandard, 4 Lead | 0.284" L x 0.280" W (7.21mm x 7.12mm) | 0.132" (3.35mm) |
|

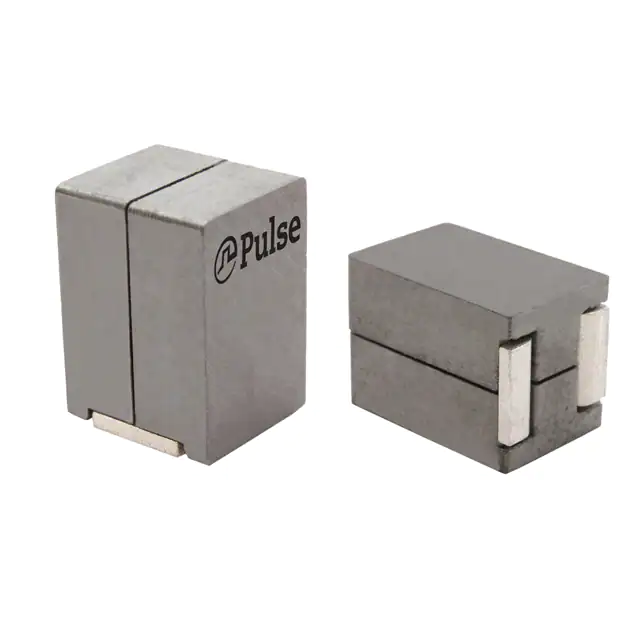

PA5300.121HLTIND PWR BEAD 120NH 115A SMD |
1,162 | - |
|
Datasheet | PA5300.XXXHLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 120 nH | ±15% | 115 A | 144A | Shielded | 0.1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.610" (15.50mm) |
|
SRP1265A-2R2MFIXED IND 2.2UH 22A 4.2 MOHM SMD |
51,259 | - |
|
Datasheet | SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 2.2 µH | ±20% | 22 A | 37A | Shielded | 4.2mOhm Max | 20 @ 100kHz | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
SRP1270-100MFIXED IND 10UH 10A 16.8 MOHM SMD |
8,678 | - |
|
Datasheet | SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 10 µH | ±20% | 10 A | 16A | Shielded | 16.8mOhm Max | - | 10MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
|
SRP1265A-6R8MFIXED IND 6.8UH 11.5A 11.5 MOHM |
8,314 | - |
|
Datasheet | SRP1265A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Carbonyl Powder | 6.8 µH | ±20% | 11.5 A | 18A | Shielded | 11.5mOhm Max | 20 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.252" (6.40mm) |
|
SRP6540-150MFIXED IND 15UH 2.9A 121 MOHM SMD |
6,641 | - |
|
Datasheet | SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±20% | 2.9 A | 2.9A | Shielded | 121mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP1270-3R3MFIXED IND 3.3UH 18A 6.6 MOHM SMD |
6,321 | - |
|
Datasheet | SRP1270 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 3.3 µH | ±20% | 18 A | 35A | Shielded | 6.6mOhm Max | - | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.539" W (13.70mm x 13.70mm) | 0.276" (7.00mm) |
|
|
SRP6540-270MFIXED IND 27UH 2A 290 MOHM SMD |
4,059 | - |
|
Datasheet | SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 27 µH | ±20% | 2 A | 2A | Shielded | 290mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
IHSR1616ABER33NM01FIXED IND 33NH 37A 1.15 MOHM SMD |
3,070 | - |
|
Datasheet | IHSR-1616AB-01 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 nH | ±20% | 37 A | 41A | Shielded | 1.15mOhm | - | 856MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.180" L x 0.160" W (4.57mm x 4.06mm) | 0.047" (1.20mm) |
