Fixed Inductors
Compare the current Fixed Inductors Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3613C221KFIXED IND 220UH 100MA 10 OHM SMD |
3,183 | - |
|
Datasheet | 3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±10% | 100 mA | - | Unshielded | 10Ohm Max | 40 @ 796kHz | 4MHz | - | -30°C ~ 100°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
3613C220KFIXED IND 22UH 180MA 3.2 OHM SMD |
2,038 | - |
|
Datasheet | 3613C, Sigma Inductors | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±10% | 180 mA | - | Unshielded | 3.2Ohm Max | 50 @ 2.52MHz | 13MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

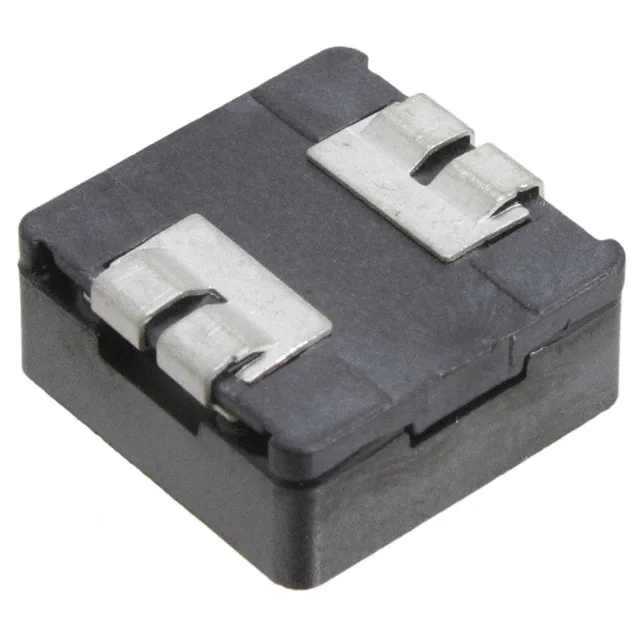

3631B471KLFIXED IND 470UH 500MA 970MOHM SM |
2,478 | - |
|
Datasheet | 3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 500 mA | - | Shielded | 970mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
|
3631B331KLFIXED IND 330UH 600MA 660MOHM SM |
1,385 | - |
|
Datasheet | 3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±10% | 600 mA | - | Shielded | 660mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.335" (8.50mm) |
|
|
3631B470LLFIXED IND 47UH 1.6A 130 MOHM SMD |
516 | - |
|
Datasheet | 3631, Sigma Inductors | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±15% | 1.6 A | - | Shielded | 130mOhm Max | - | - | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.256" (6.50mm) |
.jpg "MGDQ4-00004-P")
|
MGDQ4-00004-PFIXED IND 10UH 49 MOHM SMD |
2,045 | - |
|
Datasheet | MGDQ4, Coev | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | - | 1.84A | - | 49mOhm | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | - | 0.295" L x 0.295" W (7.50mm x 7.50mm) | 0.177" (4.50mm) |
|
SC30220KTFIXED IND 22UH 232MA 3.3 OHM TH |
773 | - |
|
Datasheet | SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 22 µH | ±10% | 232 mA | - | Shielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 100°C | 2.5 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
SC30100KTFIXED IND 10UH 219MA 3.7 OHM TH |
501 | - |
|
Datasheet | SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 10 µH | ±10% | 219 mA | - | Shielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 100°C | 7.9 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
36502C56NJTDGFIXED IND 56NH 1A 180 MOHM SMD |
5,910 | - |
|
Datasheet | 3650, Sigma Inductors | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 56 nH | ±5% | 1 A | - | Unshielded | 180mOhm Max | 65 @ 350MHz | 1.3GHz | AEC-Q200 | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
36502A7N5JTDGFIXED IND 7.5NH 600MA 140MOHM SM |
5,765 | - |
|
Datasheet | 3650, Sigma Inductors | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 7.5 nH | ±5% | 600 mA | - | Unshielded | 140mOhm Max | 50 @ 1GHz | 4.5GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
Fixed Inductors FAQ
How can I narrow the current Fixed Inductors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Fixed Inductors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
